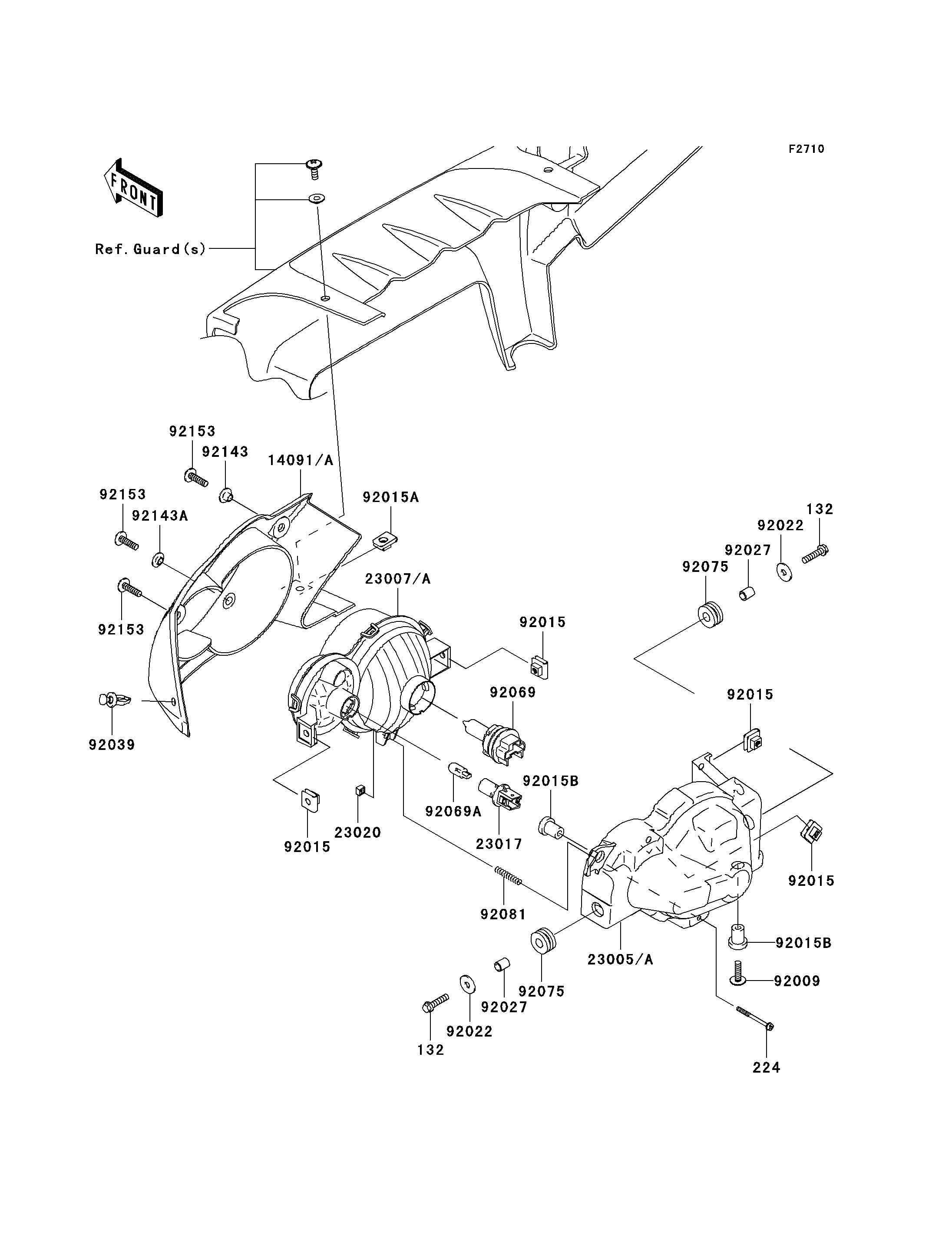

2006 Brute Force 750 4x4i - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
224
14091
14091A
23005
23005A
23007
23007A
23017
23020
92009
92015
92015
92015
92015
92015A
92015B
92015B
92022
92022
92027
92027
92039
92069
92069A
92075
92075
92081
92143
92143A
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132H0625 4
SCREW-PAN-WP-CROS,4X45 224 224D0445 2
COVER,HEAD LAMP,LH,F.BLACK 14091 14091-0132-6Z 1
COVER,HEAD LAMP,RH,F.BLACK 14091A 14091-0133-6Z 1
BODY-COMP-HEAD LAMP,LH 23005 23005-0006 1
BODY-COMP-HEAD LAMP,RH 23005A 23005-0007 1
LENS-COMP,HEAD LAMP,LH 23007 23007-0024 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-0025 1
SOCKET,HEAD LAMP 23017 23017-0001 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
SCREW,6X22 92009 92009-1664 2
NUT,6MM 92015 92015-1094 8
NUT,6MM 92015A 92015-1602 2
NUT,RUBBER,6MM 92015B 92015-1692 4
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
RIVET 92039 92039-1229 2
BULB,12V 40/40W 92069 92069-0005 2
BULB,12V 5W 92069A 92069-0006 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 2
BOLT,SOCKET,6X22 92153 92153-0574 6
