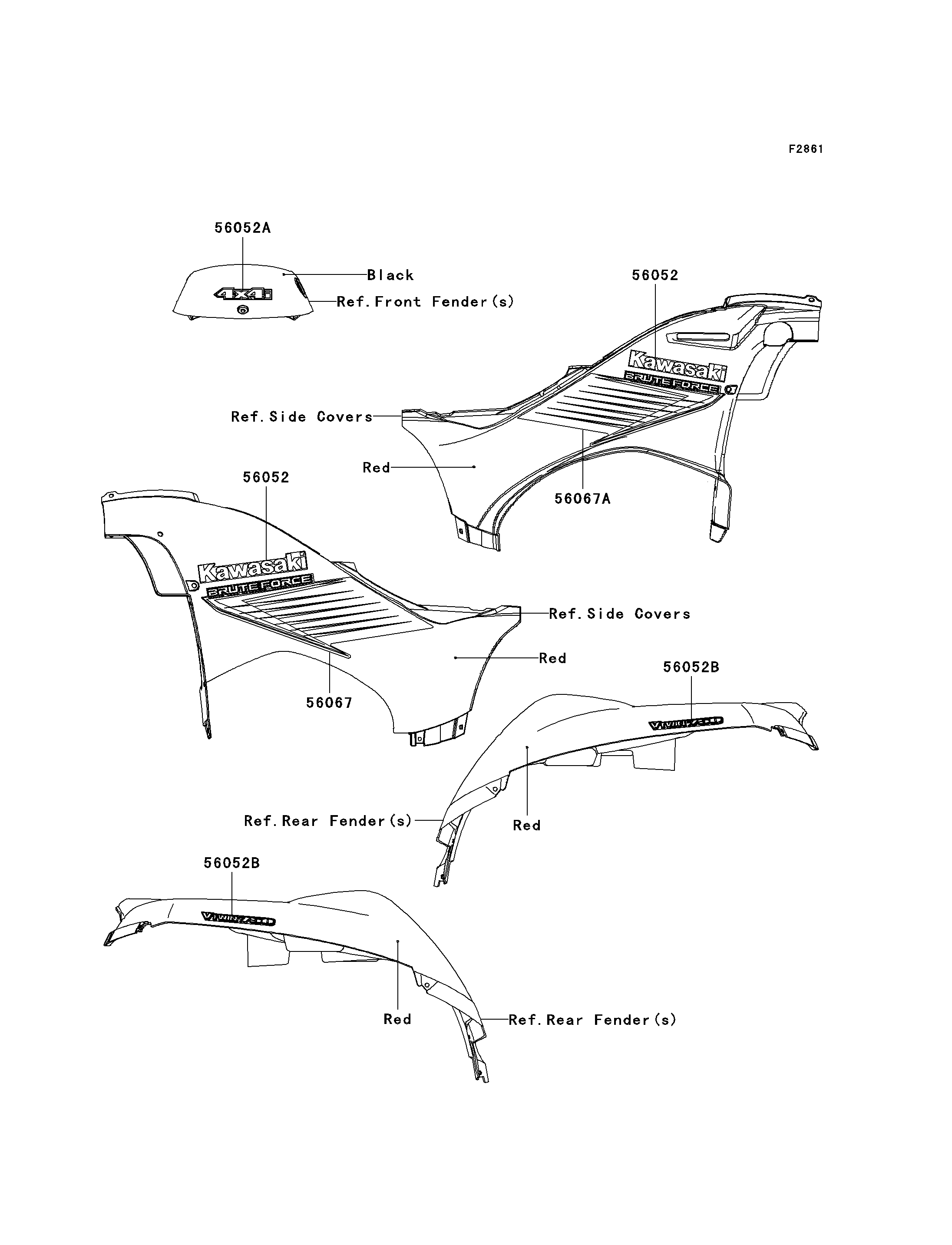

56052
56052
56052A
56052B
56052B
56067
56067A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,KAWASAKI 56052 56052-0145 2
MARK,TOP COVER,4X4I 56052A 56052-0404 1
MARK,RR FENDER,V TWIN 750 56052B 56052-0687 2
PATTERN,SIDE COVER,LH 56067 56067-0249 1
PATTERN,SIDE COVER,RH 56067A 56067-0250 1
