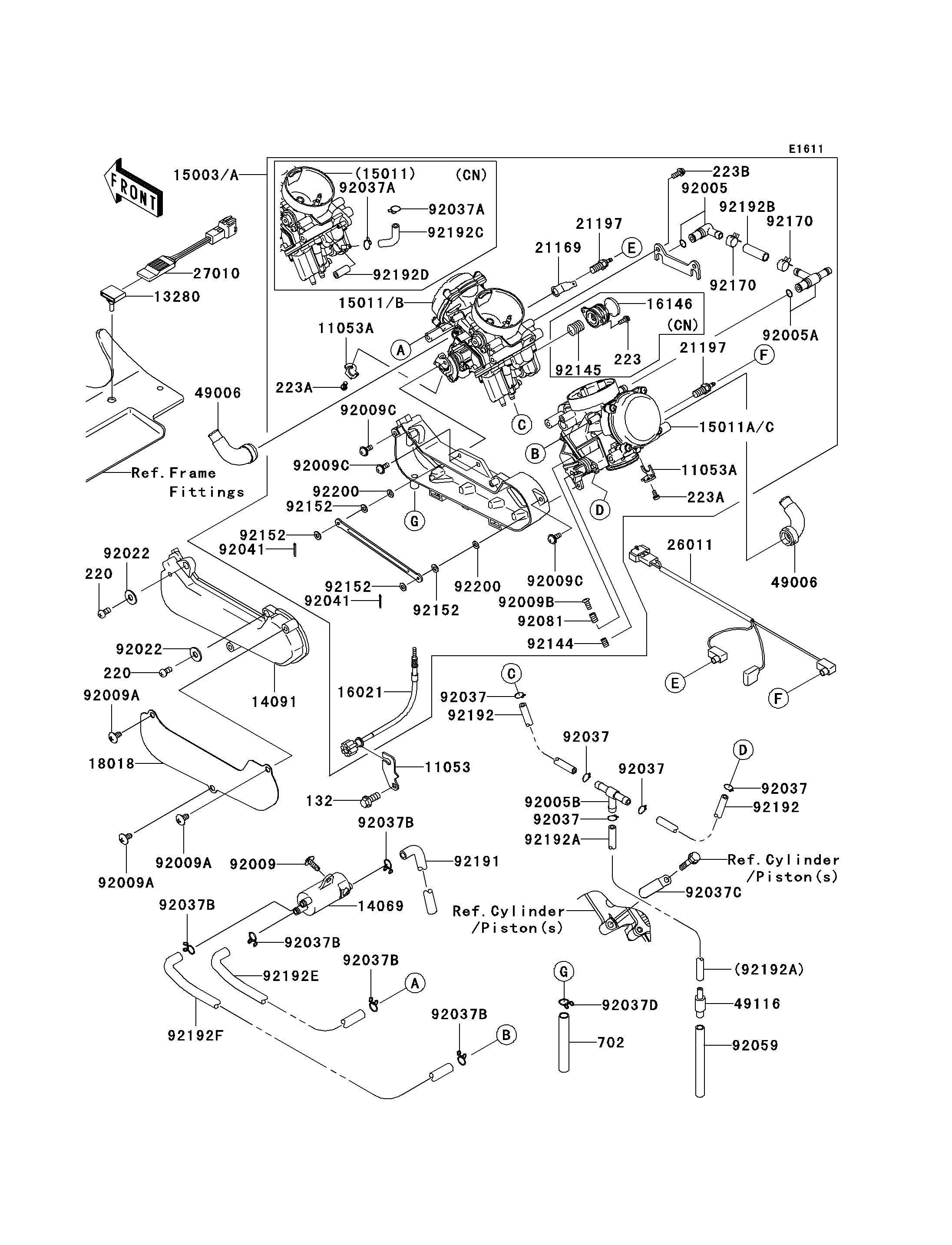

2006 Brute Force 750 4x4i - Carburetor(B6F)
11053
11053
11053A
11053A
11053A
11053A
13280
13280
14069
14069
14091
14091
16021
16021
18018
18018
21169
21169
21197
21197
21197
21197
26011
26011
27010
27010
49006
49006
49006
49006
49116
49116
92005
92005
92005A
92005A
92005B
92005B
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92009C
92009C
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037C
92037C
92037D
92037D
132
132
220
220
220
220
223A
223A
223A
223A
223B
223B
702
702
92041
92041
92041
92041
92059
92059
92081
92081
92144
92144
92152
92152
92152
92152
92152
92152
92152
92152
92170
92170
92170
92170
92191
92191
92192
92192
92192
92192
92192A
92192A
92192B
92192B
92192E
92192E
92192F
92192F
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-1299 | 1 | ||
| BRACKET | 11053A | 11053-1606 | 2 | ||
| HOLDER,CARBURETOR | 13280 | 13280-1253 | 1 | ||
| BREATHER | 14069 | 14069-0002 | 1 | ||
| COVER | 14091 | 14091-0360 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-0011 | 1 | ||
| PLATE-HEAT GUARD | 18018 | 18018-0004 | 1 | ||
| TERMINAL | 21169 | 21169-0001 | 1 | ||
| HEATER | 21197 | 21197-1006 | 2 | ||
| WIRE-LEAD | 26011 | 26011-0030 | 1 | ||
| SWITCH | 27010 | 27010-0013 | 1 | ||
| BOOT | 49006 | 49006-0028 | 2 | ||
| VALVE-ASSY | 49116 | 49116-1126 | 1 | ||
| FITTING | 92005 | 92005-0029 | 1 | ||
| FITTING | 92005A | 92005-0030 | 1 | ||
| FITTING,TUBE,T-TYPE | 92005B | 92005-1017 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1113 | 1 | ||
| SCREW,6X12 | 92009A | 92009-1480 | 3 | ||
| SCREW,SYNCHRONIZE | 92009B | 92009-1858 | 1 | ||
| SCREW | 92009C | 92009-1878 | 4 | ||
| WASHER,5.2X13X1 | 92022 | 92022-1380 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 5 | ||
| CLAMP,TUBE | 92037B | 92037-147 | 5 | ||
| CLAMP,L=45 | 92037C | 92037-1539 | 1 | ||
| CLAMP,TUBE | 92037D | 92037-1972 | 1 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132Y0614 | 1 | ||
| SCREW-PAN-CROS,4X8 | 220 | 220B0408 | 2 | ||
| SCREW-PAN-WS-CROS,4X8 | 223A | 223D0408 | 2 | ||
| SCREW-PAN-WS-CROS,5X14 | 223B | 223D0514 | 2 | ||
| TUBE-RUBBER | 702 | 702A09080 | 1 | ||
| COTTER | 92041 | 92041-1061 | 2 | ||
| TUBE,7X10X100 | 92059 | 92059-1736 | 1 | ||
| SPRING | 92081 | 92081-1620 | 1 | ||
| SPRING | 92144 | 92144-1451 | 1 | ||
| COLLAR | 92152 | 92152-0268 | 4 | ||
| CLAMP,TUBE | 92170 | 92170-1051 | 2 | ||
| TUBE,7X11X470 | 92191 | 92191-1531 | 1 | ||
| TUBE,4.5X8X120 | 92192 | 92192-0141 | 2 | ||
| TUBE,4.5X8X370 | 92192A | 92192-0142 | 1 | ||
| TUBE,7.3X12.5X45 | 92192B | 92192-0187 | 1 | ||
| TUBE,AIR-VENT,FR | 92192E | 92192-0276 | 1 | ||
| TUBE,AIR-VENT,RR | 92192F | 92192-0277 | 1 | ||
| WASHER,LINK ARM,PLASTIC | 92200 | 92200-1432 | 2 | ||
| CARBURETOR-ASSY | 15003 | 15003-0088 | 1 | CN | |
| CARBURETOR-ASSY | 15003A | 15003-0091 | 1 | US | |
| CARBURETOR,FR | 15011 | 15011-0090 | 1 | CN | |
| CARBURETOR,RR | 15011A | 15011-0091 | 1 | CN | |
| CARBURETOR,FR | 15011B | 15011-0096 | 1 | US | |
| CARBURETOR,RR | 15011C | 15011-0097 | 1 | US | |
| COVER-ASSY,PRIMING | 16146 | 16146-1225 | 1 | CN | |
| CLAMP,TUBE | 92037A | 92037-1201 | 2 | CN | |
| SCREW-PAN-WS-CROS,4X12 | 223 | 223C0412 | 2 | CN | |
| SPRING,PRIMING | 92145 | 92145-1451 | 1 | CN | |
| TUBE,4.5X8.5X40 | 92192C | 92192-0188 | 1 | CN | |
| TUBE,4.5X8.5X20 | 92192D | 92192-0189 | 1 | CN |
