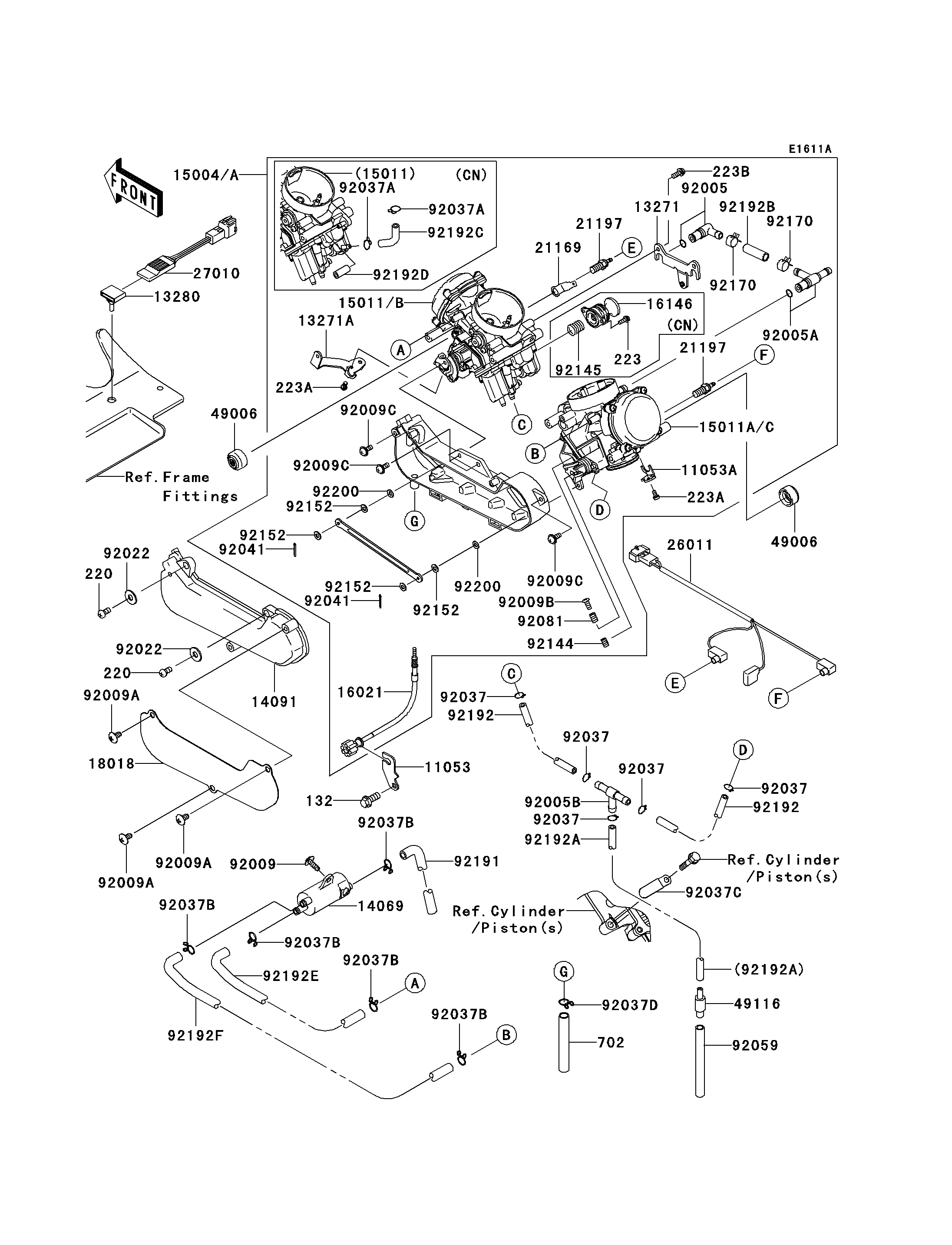

2007 Brute Force 750 4x4i - Carburetor(B7F/B7FA)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053A
11053A
13271
13271
13271A
13271A
13280
13280
14069
14069
14091
14091
16021
16021
18018
18018
21169
21169
21197
21197
21197
21197
26011
26011
27010
27010
49006
49006
49006
49006
49116
49116
92005
92005
92005A
92005A
92005B
92005B
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92009C
92009C
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
132
132
220
220
220
220
223A
223A
223A
223A
223B
223B
702
702
92037C
92037C
92037D
92037D
92041
92041
92041
92041
92059
92059
92081
92081
92144
92144
92152
92152
92152
92152
92152
92152
92152
92152
92170
92170
92170
92170
92191
92191
92192
92192
92192
92192
92192A
92192A
92192B
92192B
92192E
92192E
92192F
92192F
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-1299 1
BRACKET 11053A 11053-1606 1
PLATE 13271 13271-0750 1
PLATE 13271A 13271-0751 1
HOLDER,CARBURETOR 13280 13280-1253 1
BREATHER 14069 14069-0002 1
COVER 14091 14091-0360 1
SCREW-THROTTLE STOP 16021 16021-0011 1
PLATE-HEAT GUARD 18018 18018-0004 1
TERMINAL 21169 21169-0001 1
HEATER 21197 21197-1006 2
WIRE-LEAD 26011 26011-0030 1
SWITCH 27010 27010-0013 1
BOOT,STARTER CABLE 49006 49006-1353 2
VALVE-ASSY 49116 49116-1126 1
FITTING 92005 92005-0029 1
FITTING 92005A 92005-0030 1
FITTING,TUBE,T-TYPE 92005B 92005-1017 1
SCREW,TAPPING 92009 92009-1113 1
SCREW,6X12 92009A 92009-1480 3
SCREW,SYNCHRONIZE 92009B 92009-1858 1
SCREW 92009C 92009-1878 4
WASHER,5.2X13X1 92022 92022-1380 2
CLAMP,TUBE 92037 92037-010 5
CLAMP,TUBE 92037B 92037-147 5
BOLT-FLANGED-SMALL,6X14 132 132Y0614 1
SCREW-PAN-CROS,4X8 220 220B0408 2
SCREW-PAN-WS-CROS,4X8 223A 223D0408 2
SCREW-PAN-WS-CROS,5X14 223B 223D0514 2
TUBE-RUBBER 702 702A09080 1
CLAMP,L=45 92037C 92037-1539 1
CLAMP,TUBE 92037D 92037-1972 1
COTTER 92041 92041-1061 2
TUBE,7X10X100 92059 92059-1736 1
SPRING 92081 92081-1620 1
SPRING 92144 92144-1451 1
COLLAR 92152 92152-0268 4
CLAMP,TUBE 92170 92170-1051 2
TUBE,7X11X470 92191 92191-1531 1
TUBE,4.5X8X120 92192 92192-0141 2
TUBE,4.5X8X370 92192A 92192-0142 1
TUBE,7.3X12.5X45 92192B 92192-0187 1
TUBE,AIR-VENT,FR 92192E 92192-0276 1
TUBE,AIR-VENT,RR 92192F 92192-0277 1
WASHER,LINK ARM,PLASTIC 92200 92200-1432 2
CARBURETOR-ASSY,CVKR34 15004 15004-0005 1 US
CARBURETOR-ASSY,CVKR34 15004A 15004-0006 1 CN
CARBURETOR,FR 15011 15011-0090 1 CN
CARBURETOR,RR 15011A 15011-0091 1 CN
CARBURETOR,FR 15011B 15011-0096 1 US
CARBURETOR,RR 15011C 15011-0097 1 US
COVER-ASSY,PRIMING 16146 16146-1225 1 CN
CLAMP,TUBE 92037A 92037-1201 2 CN
SCREW-PAN-WS-CROS,4X12 223 223C0412 2 CN
SPRING,PRIMING 92145 92145-1451 1 CN
TUBE,4.5X8.5X40 92192C 92192-0188 1 CN
TUBE,4.5X8.5X20 92192D 92192-0189 1 CN
