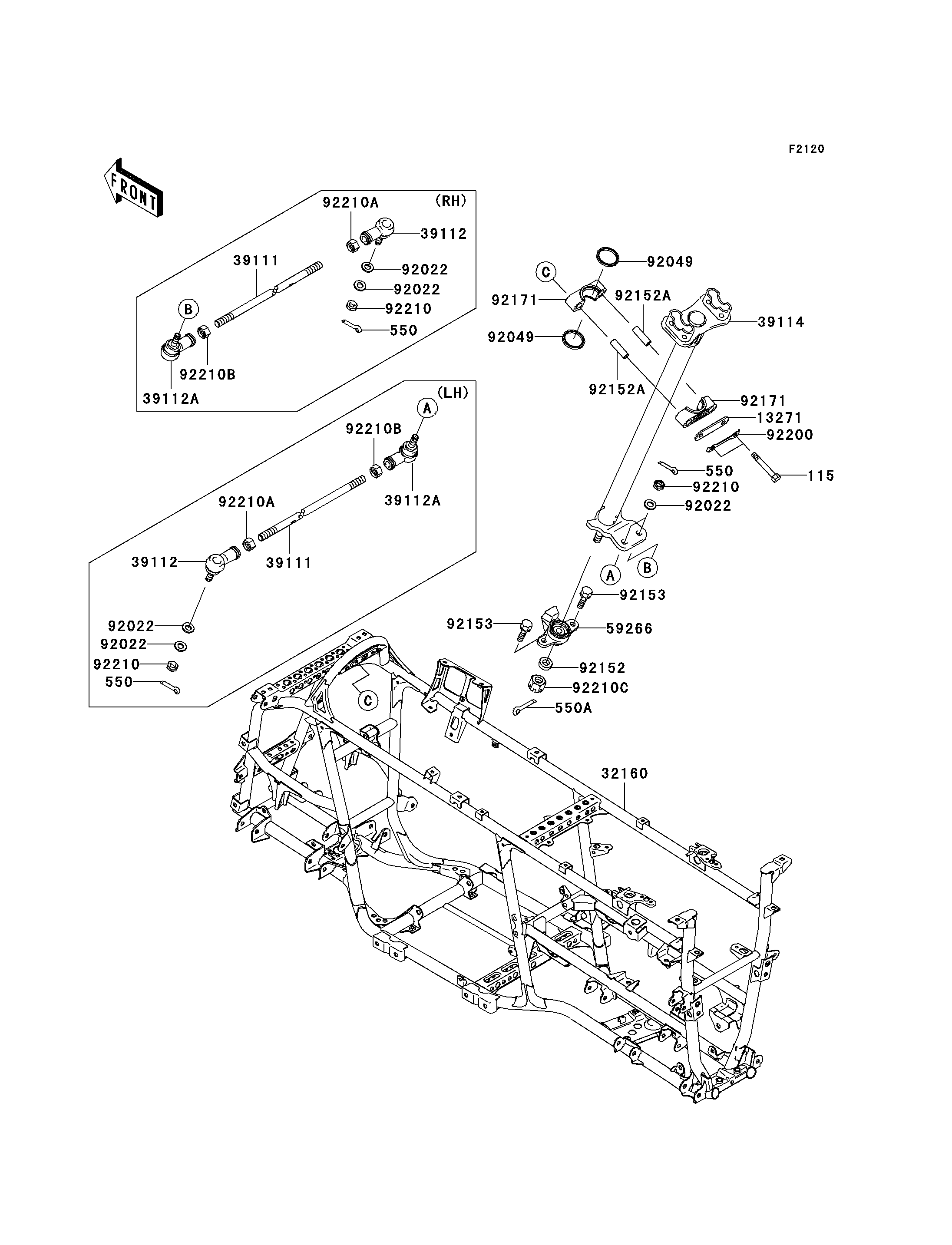

2006 Brute Force 750 4x4i - Frame

DOWNLOAD PDF
SELECT A NEW PART
115
550
550
550
550A
13271
32160
39111
39111
39112
39112
39112A
39112A
39114
59266
92022
92022
92022
92022
92022
92049
92049
92152
92152A
92152A
92153
92153
92171
92171
92200
92210
92210
92210
92210A
92210A
92210B
92210B
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X55 115 115S0855 2
PIN-COTTER,2.0X15 550 550D2015 4
PIN-COTTER,3.0X25 550A 550D3025 1
PLATE,STEERING,CLAMP 13271 13271-7506 1
FRAME-COMP 32160 32160-0135 1
ROD-TIE 39111 39111-0023 2
RODEND-TIE,RIGHT HANDED 39112 39112-0009 2
RODEND-TIE,LEFT HANDED 39112A 39112-0010 2
SHAFT-COMP-STRG 39114 39114-0006 1
JOINT-BALL 59266 59266-1125 1
WASHER,10.2X20X1.5 92022 92022-3742 6
SEAL-OIL,SR31.8X37.5X3.8LR 92049 92049-7501 2
COLLAR,12X21.3X7 92152 92152-1351 1
COLLAR,9.1X13.95X42 92152A 92152-7501 2
BOLT,8X30 92153 92153-1065 2
CLAMP,STEERING 92171 92171-7501 2
WASHER,STEERING CLAMP 92200 92200-7503 1
NUT,LOCK,10MM 92210 92210-1184 4
NUT,RIGHT HANDED 92210A 92210-1385 2
NUT,LEFT HANDED 92210B 92210-1386 2
NUT,12MM 92210C 92210-7501 1
