42036
42036
45014
45014A
92015
92015
92015
92015
92092
92092
92093
92093
92093
92093
92139
92139
92153
92153
92153
92153

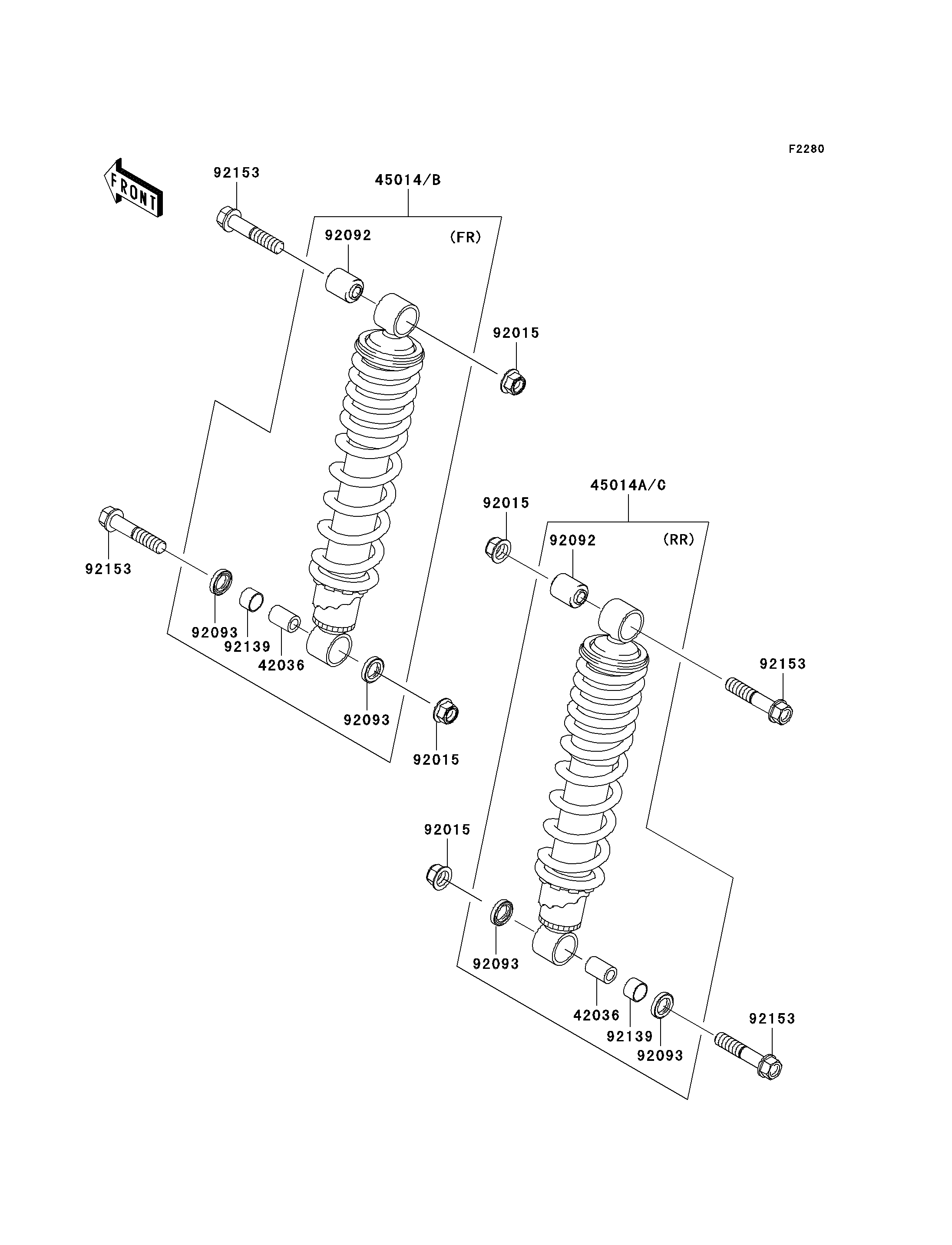

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SLEEVE 42036 42036-0018 4
SHOCKABSORBER,FR 45014 45014-0075 2
SHOCKABSORBER,RR 45014A 45014-0076 2
NUT,FLANGED,10MM 92015 92015-1335 8
BUSHING-RUBBER 92092 92092-0007 4
SEAL 92093 92093-0033 8
BUSHING 92139 92139-0084 4
BOLT,FLANGED,10X50 92153 92153-1139 8
