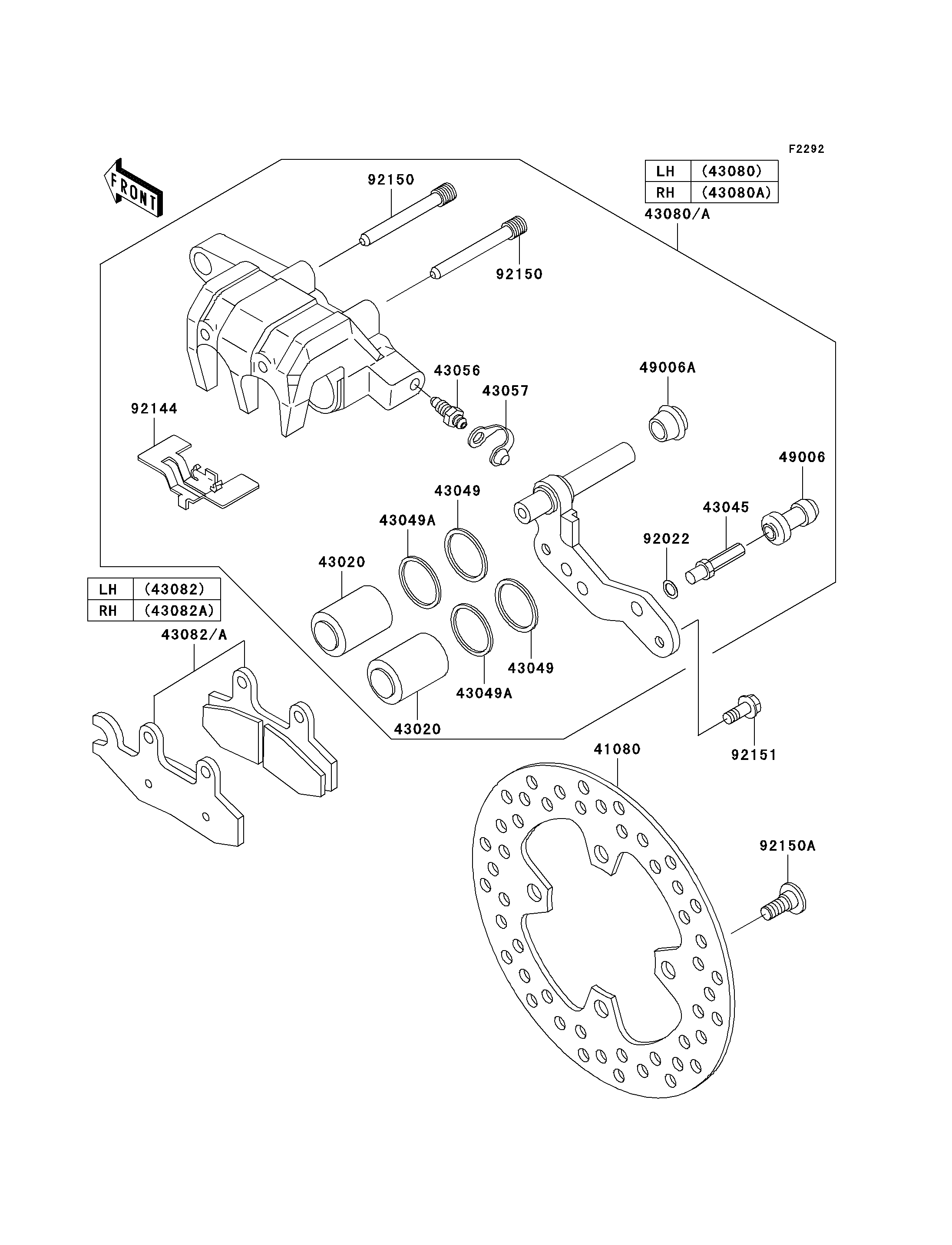

2006 Brute Force 750 4x4i - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43020
43020
43045
43049
43049
43049A
43049A
43056
43057
43080
43080A
43082
43082A
49006
49006A
92022
92144
92150
92150
92150A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1513 2
PISTON-COMP-BRAKE 43020 43020-1101 4
SHAFT-CALIPER 43045 43045-1010 2
PACKING 43049 43049-1063 4
PACKING 43049A 43049-1064 4
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-0019-DJ 1
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-0020-DJ 1
PAD-ASSY-BRAKE,FR,LH 43082 43082-0022 1
PAD-ASSY-BRAKE,FR,RH 43082A 43082-0023 1
BOOT,CALIPER 49006 49006-1088 2
BOOT,CALIPER 49006A 49006-1242 2
WASHER,WAVE 92022 92022-1373 2
SPRING,PAD 92144 92144-1319 2
BOLT 92150 92150-1144 4
BOLT,SOCKET,8X20 92150A 92150-1800 8
BOLT,FLANGED,8X19 92151 92151-1793 4
