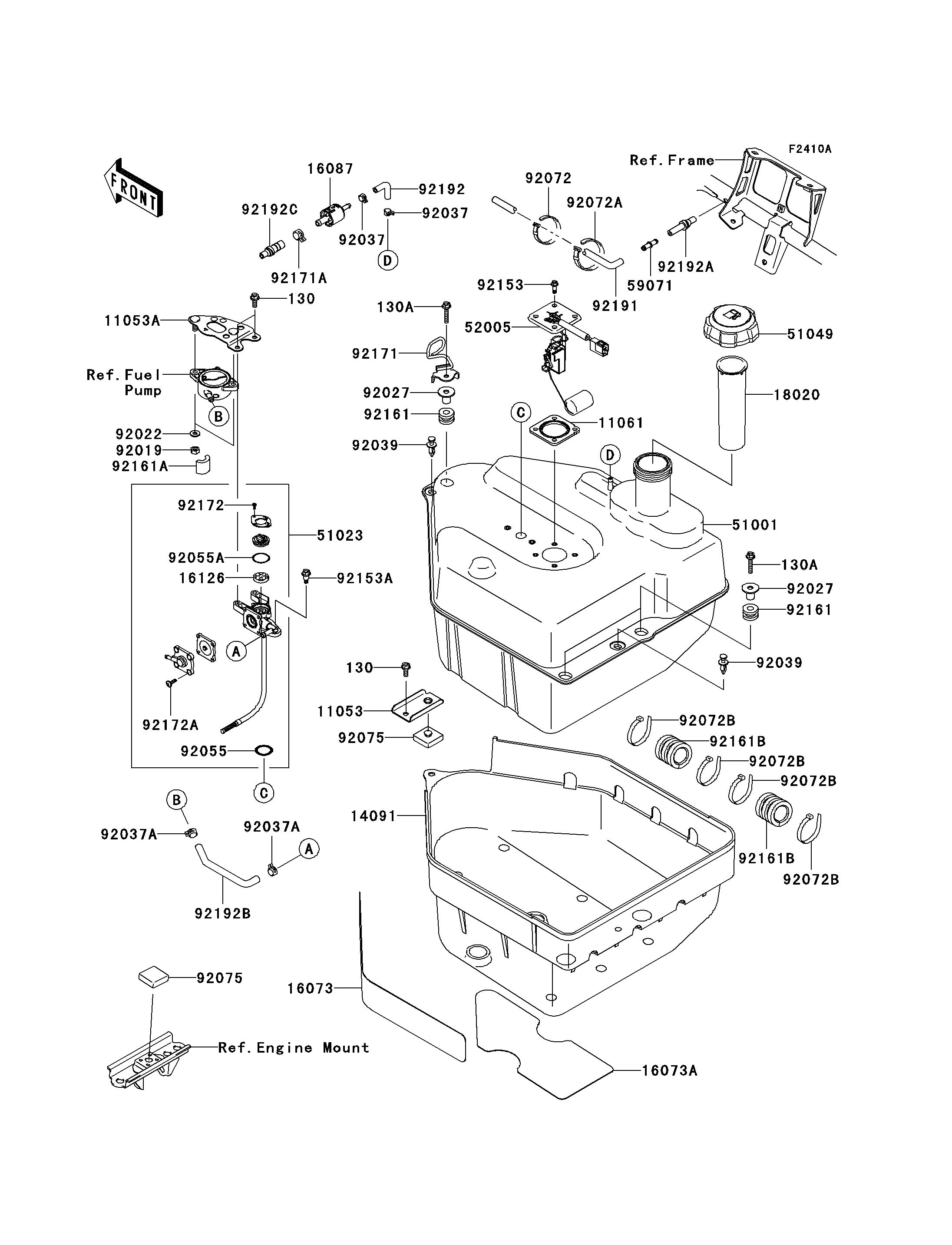

2007 Brute Force 750 4x4i - Fuel Tank(B7F/B7FA)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053A
11053A
11061
11061
14091
14091
16073
16073
16073A
16073A
16087
16087
16126
16126
18020
18020
51001
51001
51023
51023
51049
51049
52005
52005
59071
59071
92019
92019
92022
92022
92027
92027
92027
92027
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92039
92039
92039
92039
92055
92055
92055A
92055A
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92075
92075
92075
92075
92153
92153
92153A
92153A
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92171
92171
92171A
92171A
92172
92172
92172A
92172A
92191
92191
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
130
130
130
130
130A
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,TOP 11053 11053-0936 1
BRACKET,FUEL PUMP 11053A 11053-1247 1
GASKET,FUEL GAUGE 11061 11061-0071 1
COVER,FUEL TANK,LWR 14091 14091-0608 1
INSULATOR,FUEL TANK COVER,SIDE 16073 16073-0033 1
INSULATOR,FUEL TANK COVER,LWR 16073A 16073-0034 1
VALVE-CHECK 16087 16087-0002 1
VALVE 16126 16126-0027 1
BAFFLE,FUEL TANK 18020 18020-0008 1
TANK-COMP-FUEL 51001 51001-0058 1
TAP-ASSY,FUEL 51023 51023-0022 1
CAP-TANK,FUEL 51049 51049-1128 1
GAUGE,FUEL 52005 52005-0011 1
JOINT 59071 59071-3717 1
NUT,LOCK,6MM 92019 92019-008 2
WASHER,6.2X15.0X1.2 92022 92022-2373 2
COLLAR,L=16.1 92027 92027-1847 3
CLAMP,TUBE 92037 92037-1461 2
CLAMP,TUBE 92037A 92037-1505 2
RIVET 92039 92039-1229 2
RING-O,FUEL TAP 92055 92055-0081 1
RING-O 92055A 92055-0111 1
BAND,L=149 92072 92072-031 1
BAND,L=186 92072A 92072-056 1
BAND,L=188 92072B 92072-1239 4
DAMPER 92075 92075-1882 2
BOLT,FLANGED,5MM 92153 92153-0361 4
BOLT,6MM 92153A 92153-0824 2
DAMPER 92161 92161-0106 3
DAMPER,FUEL PUMP 92161A 92161-0125 1
DAMPER,FUEL TANK,RR 92161B 92161-1111 2
CLAMP,FUEL TUBE 92171 92171-0380 1
CLAMP 92171A 92171-0515 1
SCREW,3X6 92172 92172-0259 2
SCREW,4X15 92172A 92172-0260 4
TUBE,CANISTER-SEPARATOR,BLUE 92191 92191-1384 1
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1
TUBE,FRAME PIPE-CHECK VALVE 92192A 92192-0068 1
TUBE,FUEL 92192B 92192-0126 1
TUBE,FRAME PIPE-CHECK VALVE 92192C 92192-0128 1
BOLT-FLANGED,6X16 130 130G0616 3
BOLT-FLANGED,6X30 130A 130G0630 3
