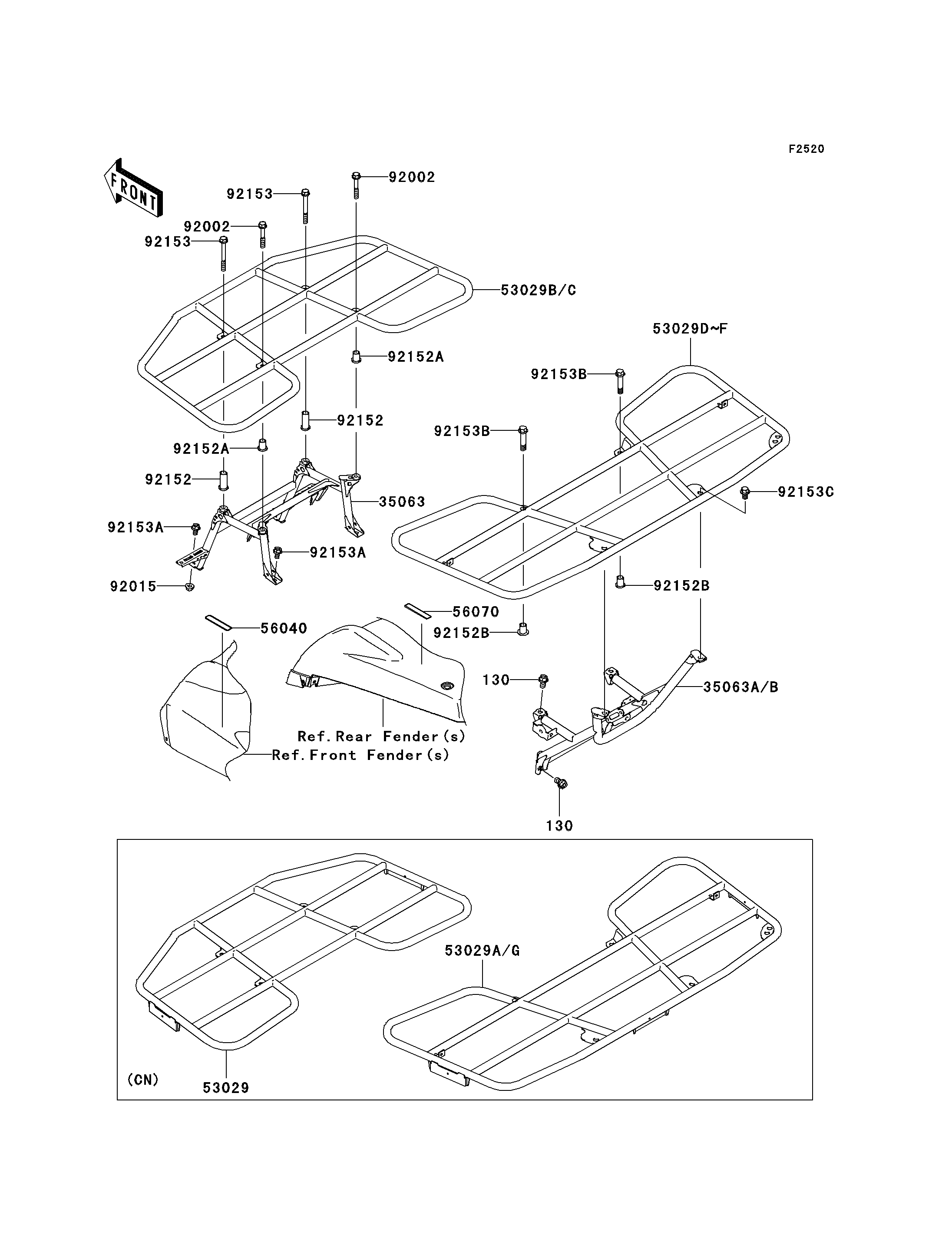

2006 Brute Force 750 4x4i - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
35063
35063A
56040
56070
92002
92002
92015
92152
92152
92152A
92152A
92152B
92152B
92153
92153
92153A
92153A
92153B
92153B
92153C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X16 130 130S1016 4
STAY,FR 35063 35063-0164 1
STAY,REAR CARRIER,F.BLACK 35063A 35063-0185-21 1
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56070 56070-0041 1
BOLT,8X50 92002 92002-1934 2
NUT,FLANGED,8MM 92015 92015-1406 2
COLLAR 92152 92152-0254 2
COLLAR 92152A 92152-0255 2
COLLAR 92152B 92152-0257 2
BOLT,FLANGED,8X70 92153 92153-0748 2
BOLT,FLANGED,8X14 92153A 92153-0931 4
BOLT,FLANGED,10X44 92153B 92153-1374 2
BOLT,FLANGED,10X14 92153C 92153-1375 2
CARRIER,FR,W.BLACK 53029 53029-0031-388 1 CN
CARRIER,RR,W.BLACK 53029A 53029-0032-388 1 CN
CARRIER,FR,W.BLACK 53029C 53029-0033-388 1 US
CARRIER,RR,W.BLACK 53029D 53029-0034-388 1 US
