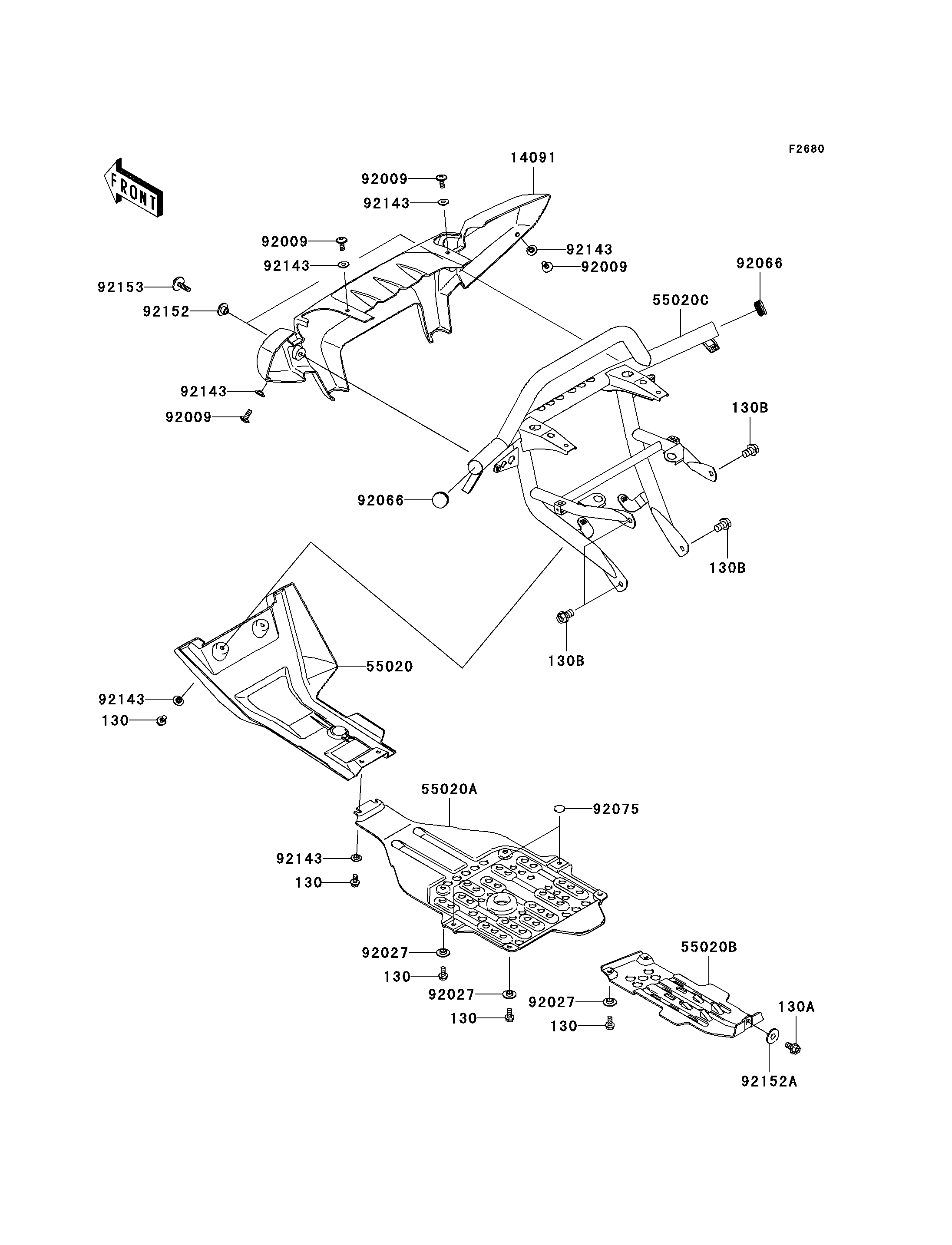

2006 Brute Force 750 4x4i - Guard(s)(B6F)
130
130
130
130
130
130A
130B
130B
130B
14091
55020
55020A
55020B
55020C
92009
92009
92009
92009
92027
92027
92027
92066
92066
92075
92143
92143
92143
92143
92143
92143
92152
92152A
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14 | 130 | 130J0614 | 10 | ||
BOLT-FLANGED,8X14 | 130A | 130J0814 | 1 | ||
BOLT-FLANGED,10X16 | 130B | 130J1016 | 4 | ||
COVER,FRONT BUMPER,F.BLACK | 14091 | 14091-0291-6Z | 1 | ||
GUARD,FRONT SKID,F.BLACK | 55020 | 55020-0064-6Z | 1 | ||
GUARD,ENGINE | 55020A | 55020-0065 | 1 | ||
GUARD,REAR GEAR BOX | 55020B | 55020-0105 | 1 | ||
GUARD,FRONT,F.BLACK | 55020C | 55020-0149-21 | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 4 | ||
COLLAR,L=4.7 | 92027 | 92027-1964 | 6 | ||
PLUG | 92066 | 92066-0035 | 2 | ||
DAMPER,RUBBER | 92075 | 92075-261 | 2 | ||
COLLAR | 92143 | 92143-1087 | 8 | ||
COLLAR | 92152 | 92152-0181 | 2 | ||
COLLAR | 92152A | 92152-0198 | 1 | ||
BOLT,SOCKET,6X22 | 92153 | 92153-0665 | 2 |
