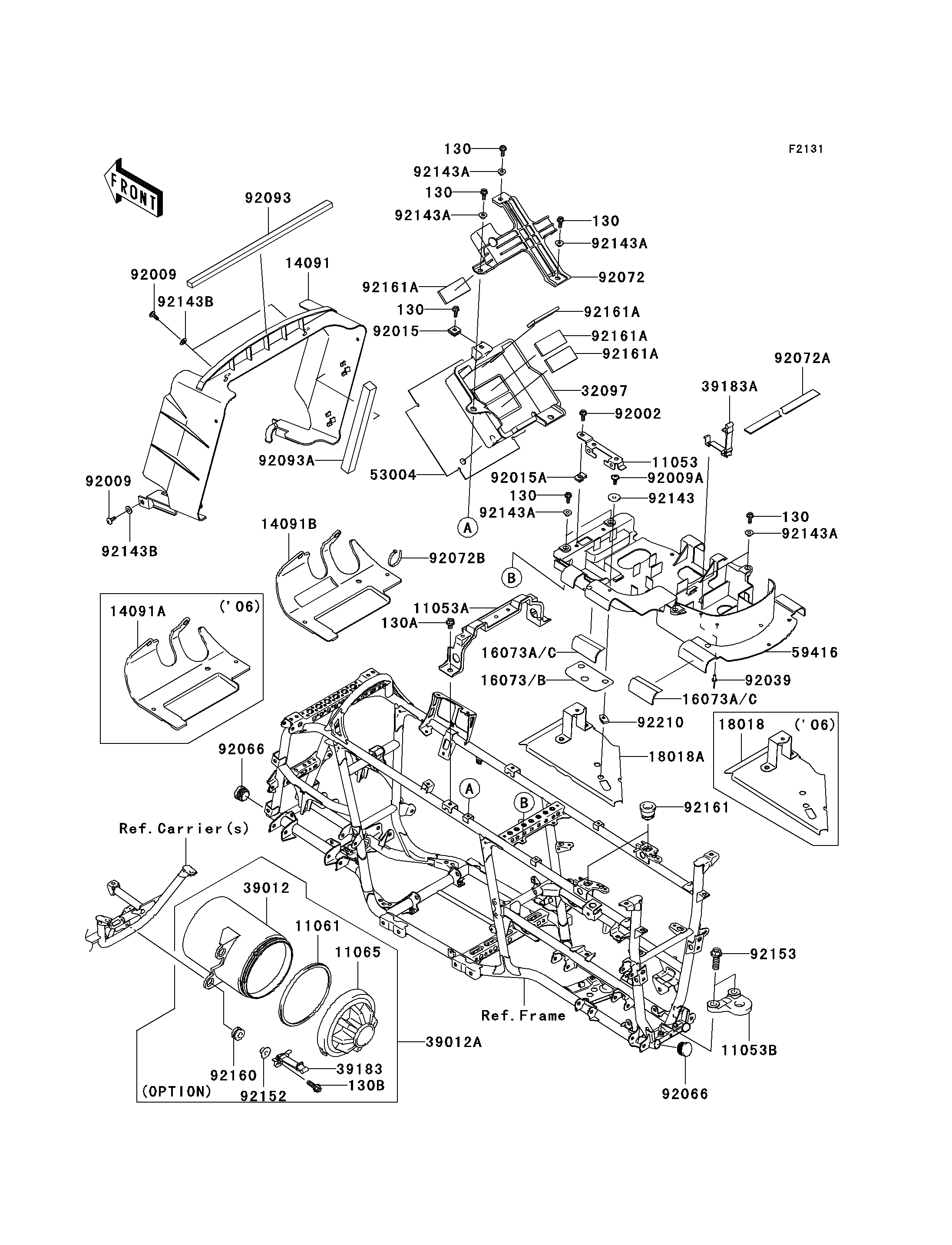

2006 Brute Force 750 4x4i - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053A
11053A
11053B
11053B
11061
11061
11065
11065
14091
14091
14091A
14091A
16073
16073
16073A
16073A
16073A
16073A
18018
18018
32097
32097
39012
39012
39012A
39012A
39183
39183
39183A
39183A
53004
53004
59416
59416
92002
92002
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92039
92039
92066
92066
92066
92066
92072
92072
92072A
92072A
92072B
92072B
92093
92093
92093A
92093A
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
130B
130B
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143B
92143B
92143B
92143B
92152
92152
92153
92153
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUSE ASSY 11053 11053-0937 1
BRACKET,SEAT&BATTERY BAND 11053A 11053-0969 1
BRACKET,TRAILER HITCH 11053B 11053-1638 1
GASKET,TOOL CASE 11061 11061-0072 1 (OPTION)
CAP,TOOL CASE 11065 11065-0088 1 (OPTION)
COVER,RADIATOR 14091 14091-0338 1
COVER,AIR CLEANER 14091A 14091-0504 1
INSULATOR,ELECTRIC CASE 16073 16073-0018 1
INSULATOR,ELECTRIC CASE 16073A 16073-0027 2
PLATE-HEAT GUARD 18018 18018-0003 1
CASE-BATTERY 32097 32097-0009 1
CASE-STORAGE 39012 39012-0005 1 (OPTION)
CASE-STORAGE,ASSY 39012A 39012-5013 1 (OPTION)
BAND-ASSY,TOOL BAG 39183 39183-0003 1 (OPTION)
BAND-ASSY,TOOL BAG 39183A 39183-1065 1
MAT,BATTERY CASE 53004 53004-0002 1
CASE-ELECTRIC 59416 59416-0004 1
BOLT,6X16 92002 92002-1571 1
SCREW,TAPPING,6X16 92009 92009-1166 4
SCREW,6X16 92009A 92009-1621 1
NUT,6MM 92015 92015-1094 1
NUT,6MM 92015A 92015-1602 1
RIVET,4.8MM 92039 92039-3719 2
PLUG 92066 92066-0036 4
BAND,BATTERY 92072 92072-0033 1
BAND,MAGIC TAPE 92072A 92072-0040 1
BAND,L=188 92072B 92072-1239 4
SEAL,L=408 92093 92093-0024 1
SEAL,L=250 92093A 92093-0028 2
BOLT-FLANGED,6X16 130 130J0616 8
BOLT-FLANGED,8X12 130A 130J0812 2
BOLT-FLANGED,8X25 130B 130J0825 2 (OPTION)
COLLAR,L=6.5 92143 92143-1025 1
COLLAR 92143A 92143-1057 7
COLLAR 92143B 92143-1087 4
COLLAR 92152 92152-0155 2 (OPTION)
BOLT,FLANGED,12X35 92153 92153-0847 2
DAMPER 92160 92160-1151 2 (OPTION)
DAMPER 92161 92161-0048 2
DAMPER 92161A 92161-1127 4
NUT 92210 92210-1331 1
