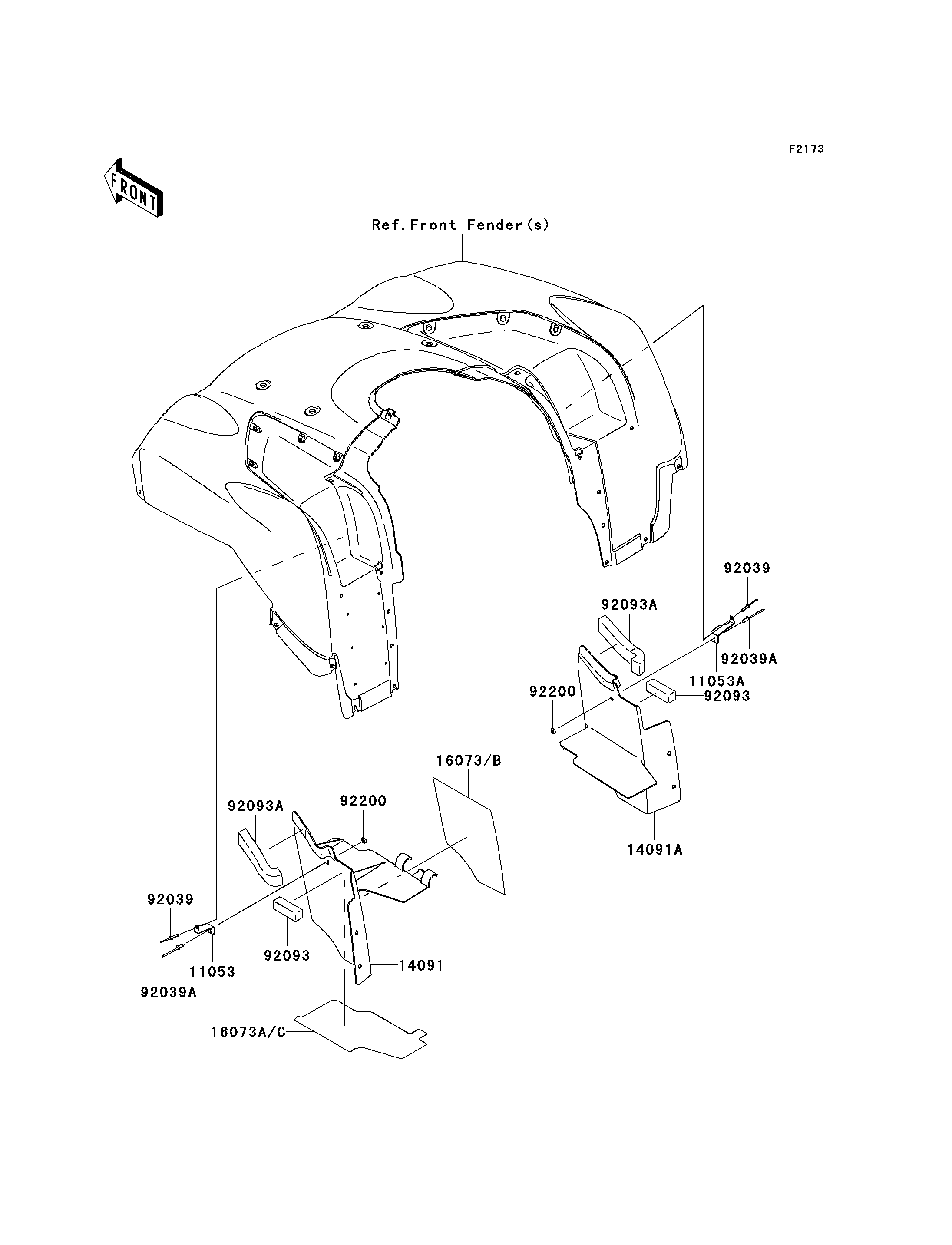

Parts Diagrams |
11053
11053A
14091
14091A
16073
16073A
92039
92039
92039A
92039A
92093
92093
92093A
92093A
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,INNER FLAP,LH | 11053 | 11053-1979 | 1 | ||
BRACKET,INNER FLAP,RH | 11053A | 11053-1980 | 1 | ||
COVER,FRONT FENDER,LH | 14091 | 14091-0491 | 1 | ||
COVER,FRONT FENDER,RH | 14091A | 14091-0492 | 1 | ||
INSULATOR,INNER FLAP,LH,LWR | 16073 | 16073-0028 | 1 | ||
INSULATOR,INNER FLAP,LH,UPP | 16073A | 16073-0029 | 1 | ||
RIVET | 92039 | 92039-1260 | 2 | ||
RIVET,3.2X8 | 92039A | 92039-3763 | 2 | ||
SEAL,FR FENDER | 92093 | 92093-0038 | 2 | ||
SEAL | 92093A | 92093-1580 | 2 | ||
WASHER,3.5X8X1 | 92200 | 92200-1251 | 2 |
BRACKET,INNER FLAP,LH | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,INNER FLAP,RH | |
REF # | 11053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FRONT FENDER,LH | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FRONT FENDER,RH | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INSULATOR,INNER FLAP,LH,LWR | |
REF # | 16073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INSULATOR,INNER FLAP,LH,UPP | |
REF # | 16073A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RIVET,3.2X8 | |
REF # | 92039A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FR FENDER | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,3.5X8X1 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
