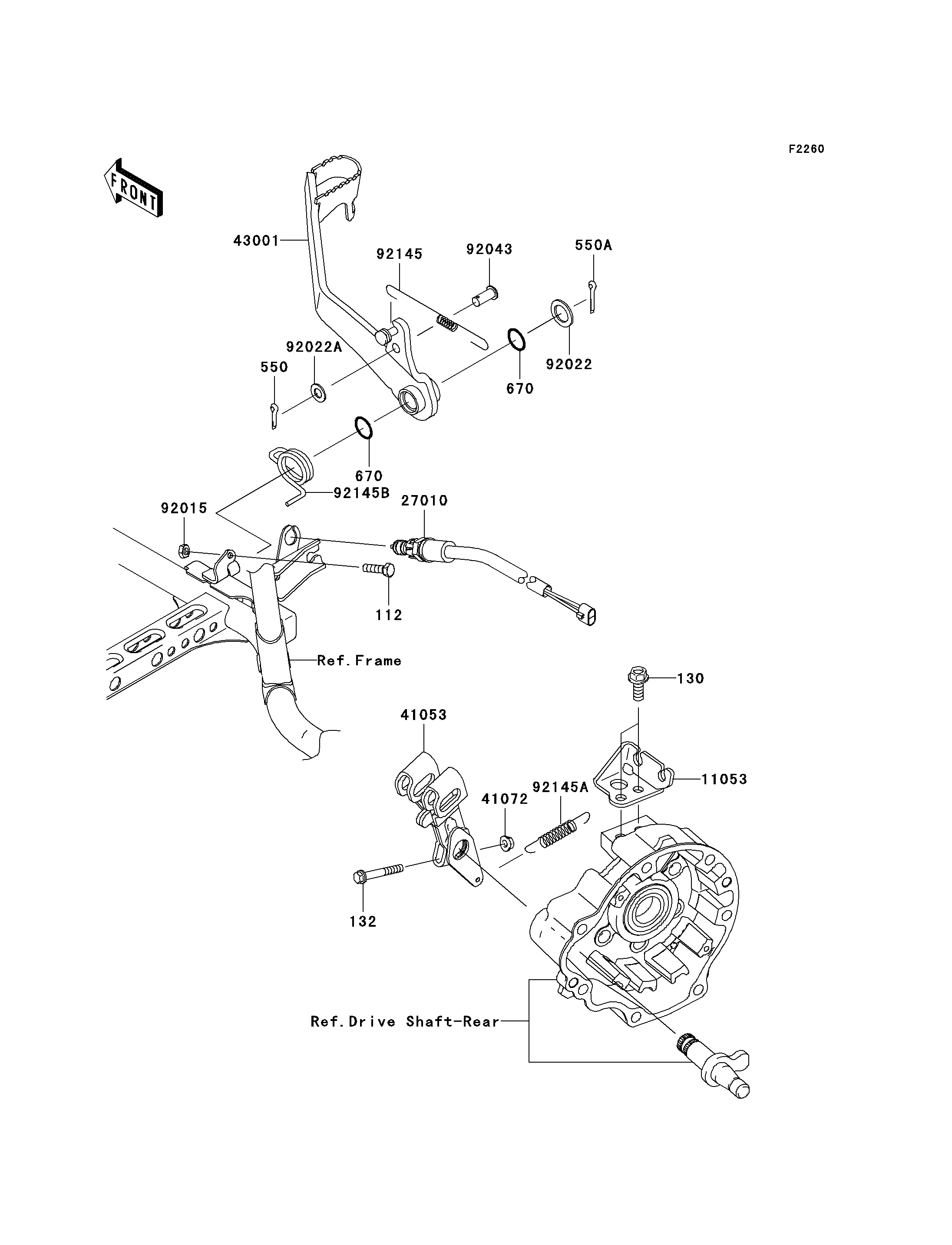

2006 Brute Force 750 4x4i - Brake Pedal
112
130
132
550
550A
670
670
11053
27010
41053
41072
43001
92015
92022
92022A
92043
92145
92145A
92145B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET,6X22 | 112 | 112D0622 | 1 | ||
BOLT-FLANGED,8X20 | 130 | 130J0820 | 2 | ||
BOLT-FLANGED-SMALL,6X40 | 132 | 132G0640 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
PIN-COTTER,2.0X22 | 550A | 550D2022 | 1 | ||
O RING,15MM | 670 | 670B2015 | 2 | ||
BRACKET,BRAKE CABLE | 11053 | 11053-0642 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1494 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-0006 | 1 | ||
NUT,6MM | 41072 | 41072-007 | 1 | ||
LEVER-BRAKE,PEDAL | 43001 | 43001-0036 | 1 | ||
NUT,6MM | 92015 | 92015-1410 | 1 | ||
WASHER,15.5X24X1.6 | 92022 | 92022-1049 | 1 | ||
WASHER,8.5X16X1.2 | 92022A | 92022-1582 | 1 | ||
PIN,8X16 | 92043 | 92043-1013 | 1 | ||
SPRING,REAR BRAKE SWITCH | 92145 | 92145-0144 | 1 | ||
SPRING,BRAKE LEVER RETURN | 92145A | 92145-1313 | 1 | ||
SPRING,BRAKE PEDAL RETURN | 92145B | 92145-1421 | 1 |
