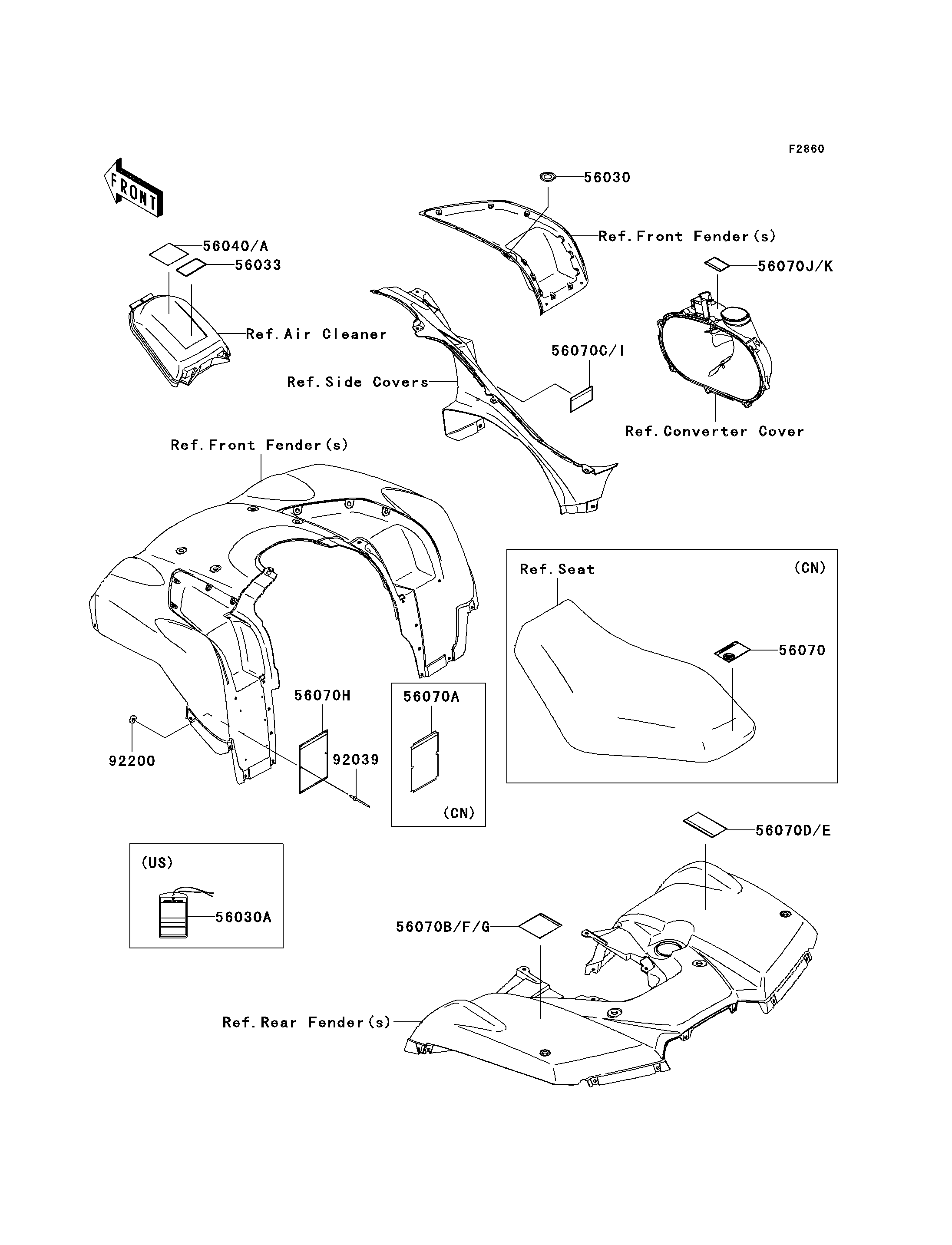

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION SWITCH | 56030 | 56030-0018 | 1 | ||
| LABEL-MANUAL,AIR CLEANER | 56033 | 56033-0064 | 1 | ||
| LABEL-WARNING,UNDER 16 | 56040 | 56040-1276 | 1 | ||
| LABEL-WARNING,DRIVE BELT | 56070D | 56070-0038 | 1 | ||
| LABEL-WARNING,TIRE&MAX LOAD | 56070F | 56070-0045 | 1 | ||
| LABEL-WARNING,SERIOUS INJURY | 56070H | 56070-1151 | 1 | ||
| LABEL-WARNING,SHIFT LEVER | 56070I | 56070-1170 | 1 | ||
| LABEL-WARNING,CVT COVER | 56070J | 56070-1269 | 1 | ||
| RIVET,3.2X8 | 92039 | 92039-3763 | 6 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 6 | ||
| LABEL,HANGTAG | 56030A | 56030-0047 | 1 | US | |
| LABEL-WARNING,AGE | 56040A | 56040-1325 | 1 | CN | |
| LABEL-WARNING,NO PASSENGER | 56070 | 56070-0018 | 1 | CN | |
| LABEL-WARNING,GENERAL | 56070A | 56070-0019 | 1 | CN | |
| LABEL-WARNING,TIRE&MAX LOAD | 56070B | 56070-0025 | 1 | CN | |
| LABEL-WARNING,SHIFT LEVER(FRENCH) | 56070C | 56070-0037 | 1 | CN | |
| LABEL-WARNING,DRIVE BELT(FRENCH) | 56070E | 56070-0039 | 1 | CN | |
| LABEL-WARNING,CVT COVER(FRENCH) | 56070K | 56070-1271 | 1 | CN |
