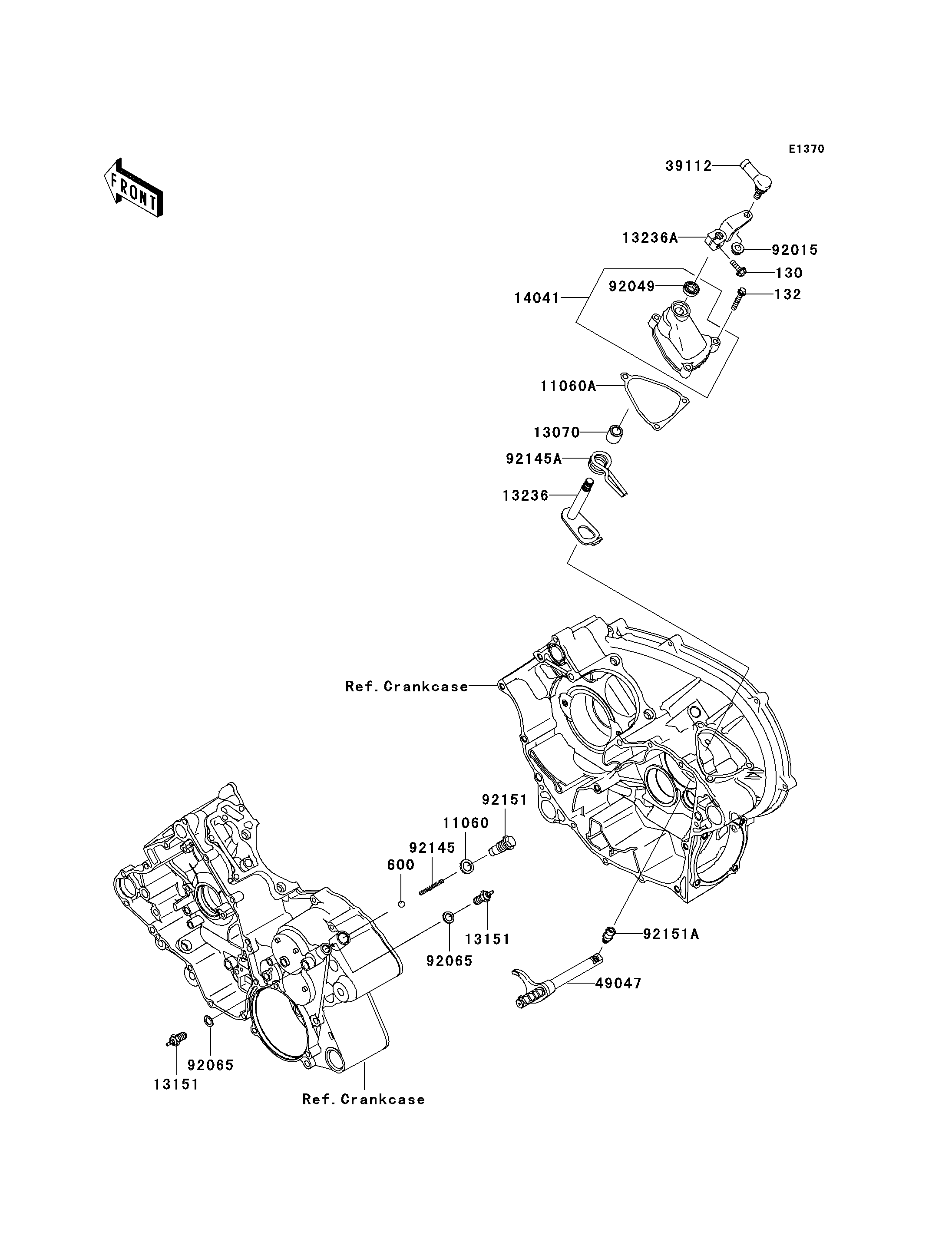

2009 Brute Force 750 4x4i Hardwoods Green HD - Gear Change Mechanism
130
132
600
11060
11060A
13070
13151
13151
13236
13236A
14041
39112
49047
92015
92049
92065
92065
92145
92145A
92151
92151A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130CD0620 | 1 | ||
BOLT-FLANGED-SMALL,6X30 | 132 | 132BD0630 | 3 | ||
BALL-STEEL,5/16" | 600 | 600A1000 | 1 | ||
GASKET,14X20X2 | 11060 | 11060-1287 | 1 | ||
GASKET,CHANGE LEVER COVER | 11060A | 11060-1956 | 1 | ||
GUIDE | 13070 | 13070-1352 | 1 | ||
SWITCH-COMP,NEUTRAL | 13151 | 13151-1080 | 2 | ||
LEVER-COMP,CHANGE | 13236 | 13236-0051 | 1 | ||
LEVER-COMP,CHANGE LEVER | 13236A | 13236-1343 | 1 | ||
COVER-COMP,CHANGE LEVER | 14041 | 14041-1136 | 1 | ||
RODEND-TIE,CHANGE LEVER | 39112 | 39112-1080 | 1 | ||
ROD-SHIFT | 49047 | 49047-1104 | 1 | ||
NUT,8MM | 92015 | 92015-1432 | 1 | ||
SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 2 | ||
SPRING,CHANGE POSITION | 92145 | 92145-1297 | 1 | ||
SPRING,CHANGE LEVER | 92145A | 92145-1299 | 1 | ||
BOLT,CHANGE POSITION | 92151 | 92151-1687 | 1 | ||
BOLT,SHIFT ROD | 92151A | 92151-1699 | 1 |
BOLT-FLANGED,6X20 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X30 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BALL-STEEL,5/16" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,14X20X2 | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CHANGE LEVER COVER | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-COMP,NEUTRAL | |
REF # | 13151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-COMP,CHANGE | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,CHANGE LEVER | |
REF # | 13236A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-COMP,CHANGE LEVER | |
REF # | 14041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RODEND-TIE,CHANGE LEVER | |
REF # | 39112 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-SHIFT | |
REF # | 49047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB12205.5 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,10.5X16X1 | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,CHANGE POSITION | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE LEVER | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CHANGE POSITION | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SHIFT ROD | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
