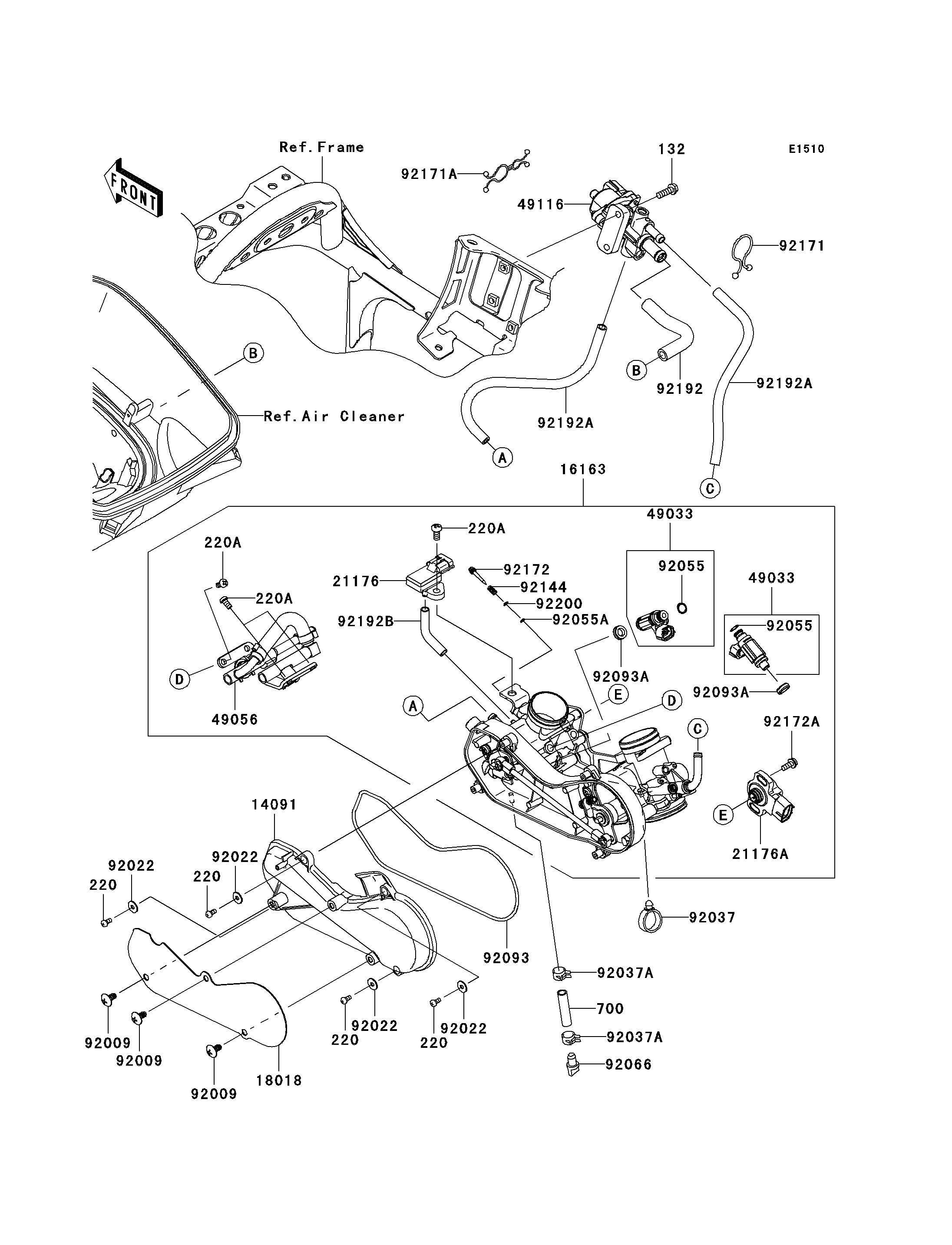

2008 Brute Force 750 4x4i NRA Outdoors - Throttle

DOWNLOAD PDF
SELECT A NEW PART
132
220
220
220
220
220A
220A
220A
700
14091
16163
18018
21176
21176A
49033
49033
49056
49116
92009
92009
92009
92022
92022
92022
92022
92037
92037A
92037A
92055
92055
92055A
92066
92093
92093A
92093A
92144
92171
92171A
92172
92172A
92192
92192A
92192A
92192B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X18 132 132BD0618 2
SCREW-PAN-CROS,4X8 220 220AA0408 4
SCREW-PAN-CROSS,6X12 220A 220AA0612 5
TUBE-PVC 700 700Q0740 1
COVER 14091 14091-0737 1
THROTTLE-ASSY,36EIS 16163 16163-0125 1
PLATE-HEAT GUARD 18018 18018-0010 1
SENSOR,PRESSURE 21176 21176-0058 1
SENSOR,TPS 21176A 21176-0100 1
NOZZLE-INJECTION 49033 49033-1060 2
PIPE-INJECTION 49056 49056-0021 1
VALVE-ASSY 49116 49116-0021 1
SCREW,6X12 92009 92009-1480 3
WASHER,5.2X13X1 92022 92022-1380 4
CLAMP,HOSE 92037 92037-1827 1
CLAMP 92037A 92037-2113 2
RING-O,INJECTION NOZZLE 92055 92055-1622 2
RING-O,AIR SCREW 92055A 92055-1658 2
PLUG,DRAIN 92066 92066-1211 1
SEAL 92093 92093-0082 1
SEAL 92093A 92093-0127 2
SPRING,THROTTLE STOP SCREW 92144 92144-1674 2
CLAMP 92171 92171-1185 1
CLAMP 92171A 92171-1438 1
SCREW 92172 92172-0156 2
SCREW 92172A 92172-0254 2
TUBE 92192 92192-0437 1
TUBE 92192A 92192-0439 2
TUBE,3.2X7.4X50 92192B 92192-0578 1
WASHER,PILOT AIR SCREW 92200 92200-1564 2
