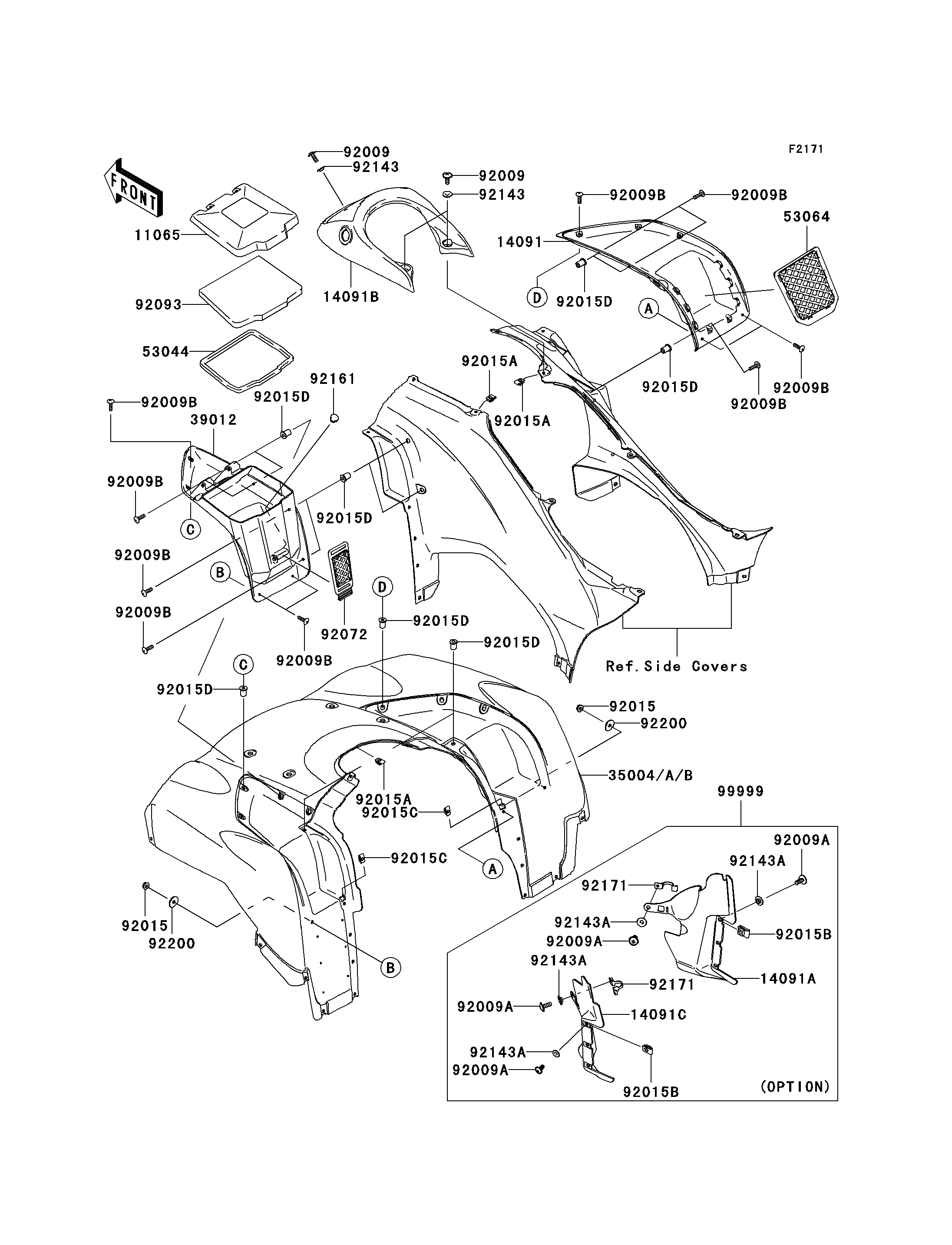

2009 Brute Force 750 4x4i Hardwoods Green HD - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
14091
14091A
14091B
14091C
35004B
39012
53044
53064
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015
92015A
92015A
92015A
92015B
92015B
92015C
92015C
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92072
92093
92143
92143
92143A
92143A
92143A
92143A
92161
92171
92171
92200
92200
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STORAGE,F.BLACK 11065 11065-0194-6Z 1
COVER,POCKET,RH,F.BLACK 14091 14091-0136-6Z 1
COVER,SIDE,INNER,RH 14091A 14091-0179 1 (OPTION)
COVER,TOP,F.BLACK 14091B 14091-0270-6Z 1
COVER,SIDE,INNER,LH 14091C 14091-0337 1 (OPTION)
FENDER-FRONT,C.H.GREEN 35004B 35004-0107-826 1
CASE-STORAGE,F.BLACK 39012 39012-0015-6Z 1
TRIM,L=700 53044 53044-0037 1
NET-CARGO 53064 53064-0002 1
SCREW,6X16 92009 92009-1621 3
SCREW,6X16 92009A 92009-1621 8 (OPTION)
SCREW,5X18 92009B 92009-1655 17
NUT,FLANGED,5MM 92015 92015-1259 2
NUT,6MM 92015A 92015-1602 3
NUT,6MM 92015B 92015-1602 6 (OPTION)
NUT,5MM 92015C 92015-1710 2
NUT,WELL,5MM 92015D 92015-1757 15
BAND,STORAGE 92072 92072-0095 1
SEAL,STORAGE CAP 92093 92093-0136 1
COLLAR 92143 92143-1087 3
COLLAR 92143A 92143-1087 8 (OPTION)
DAMPER 92161 92161-0586 1
CLAMP 92171 92171-0223 2 (OPTION)
WASHER,5.5X20X1.2 92200 92200-0284 2
INNER FENDER KIT 99999 99999-0055 1 (OPTION)
