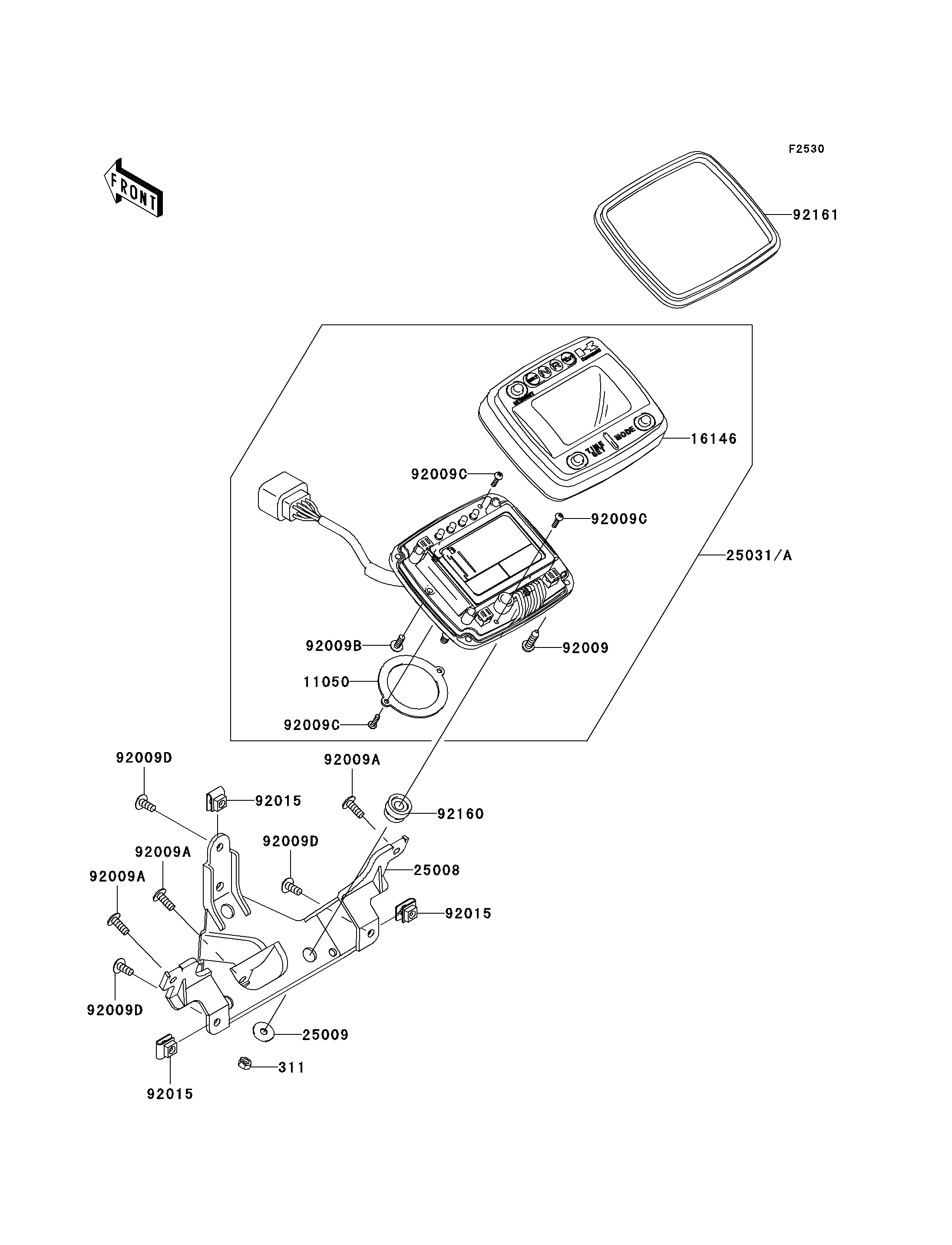

2009 Brute Force 750 4x4i Hardwoods Green HD - Meter(s)
311
11050
16146
25008
25009
92009
92009A
92009A
92009A
92009B
92009C
92009C
92009C
92009D
92009D
92009D
92015
92015
92015
92160
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX | 311 | 311AB0500 | 3 | ||
BRACKET,METER | 11050 | 11050-1932 | 1 | ||
COVER-ASSY,UPPER | 16146 | 16146-0011 | 1 | ||
BRACKET-METER | 25008 | 25008-0003 | 1 | ||
WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 4 | ||
SCREW,TAPPING,5X14 | 92009A | 92009-1197 | 3 | ||
SCREW,TAPPING,4X12 | 92009B | 92009-1254 | 1 | ||
SCREW,3X12 | 92009C | 92009-1326 | 4 | ||
SCREW,5X12 | 92009D | 92009-1652 | 3 | ||
NUT,5MM | 92015 | 92015-1573 | 3 | ||
DAMPER | 92160 | 92160-1460 | 3 | ||
DAMPER,METER,UPP | 92161 | 92161-1114 | 1 | ||
METER-ASSY,KPH | 25031 | 25031-0226 | 1 | CN | |
METER-ASSY,MPH | 25031A | 25031-0227 | 1 | US |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BRACKET,METER | |
REF # | 11050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-ASSY,UPPER | |
REF # | 16146 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.2X16X1.2 | |
REF # | 25009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X14 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X12 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,3X12 | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,5X12 | |
REF # | 92009D |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER,METER,UPP | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER-ASSY,KPH | |
REF # | 25031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
METER-ASSY,MPH | |
REF # | 25031A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
