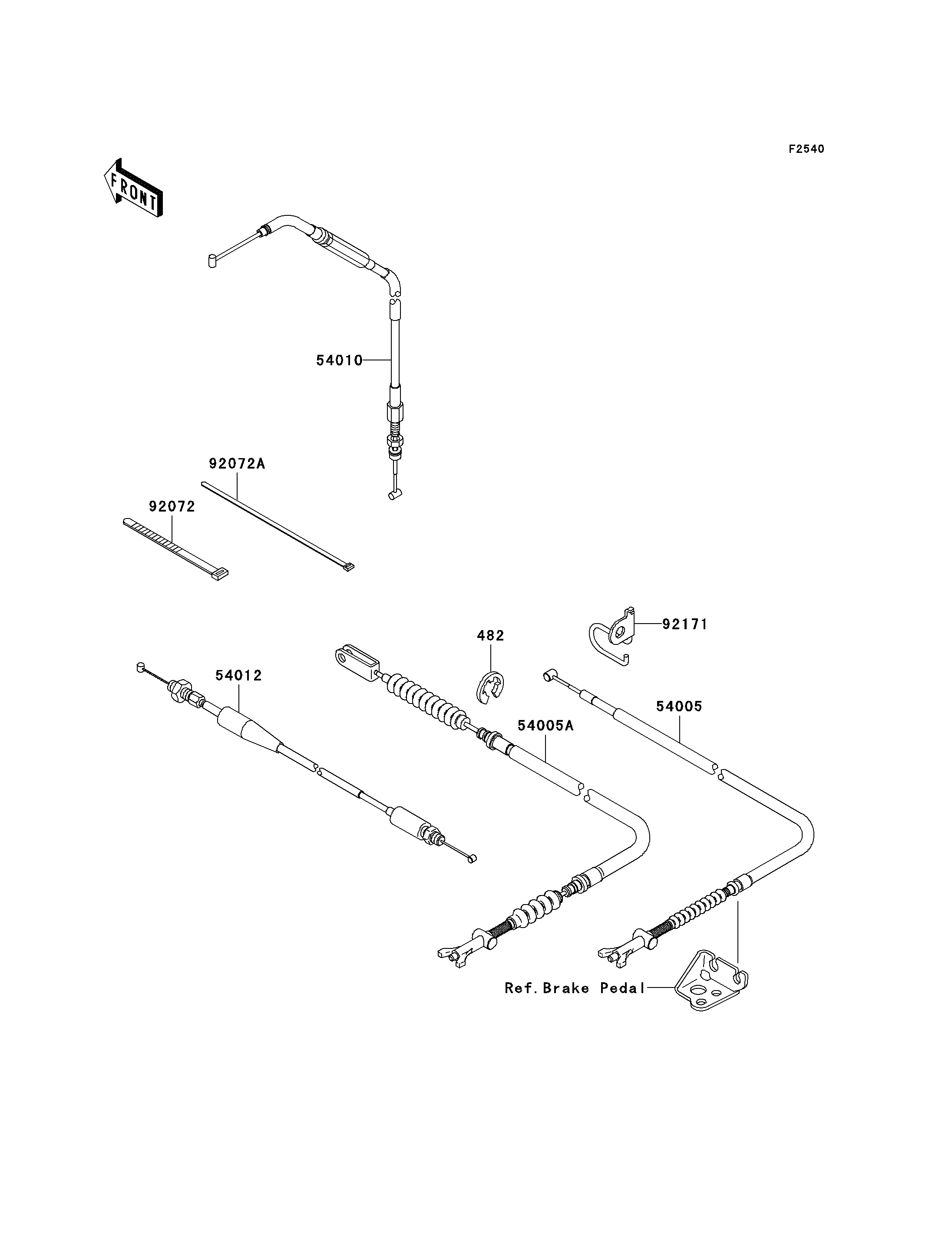

2009 Brute Force 750 4x4i Hardwoods Green HD - Cables

482
54005
54005A
54010
54012
92072
92072A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,8MM 482 482EA8000 1
CABLE-BRAKE,PARKING 54005 54005-0017 1
CABLE-BRAKE,FOOT 54005A 54005-0018 1
CABLE,FRONT DIFF LOCK 54010 54010-0064 1
CABLE-THROTTLE 54012 54012-0207 1
BAND,L=123 92072 92072-030 1
BAND,L=188 92072A 92072-1239 3
CLAMP,BRAKE CABLE 92171 92171-0228 1
