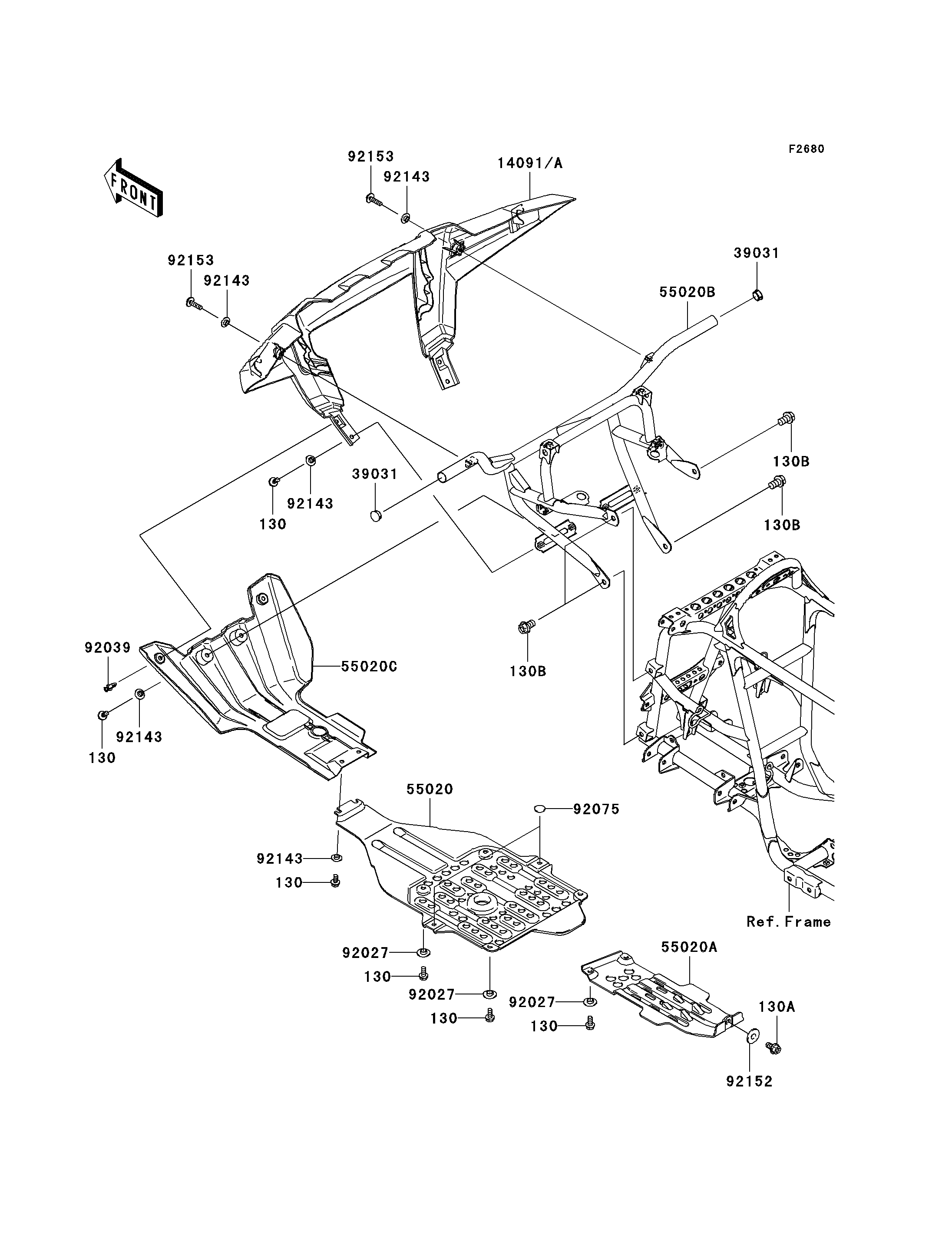

2009 Brute Force 750 4x4i Hardwoods Green HD - Guard(s)
130
130
130
130
130
130
130A
130B
130B
130B
14091
39031
39031
55020
55020A
55020B
55020C
92027
92027
92027
92039
92075
92143
92143
92143
92143
92143
92152
92153
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14 | 130 | 130BB0614 | 12 | ||
BOLT-FLANGED,8X14 | 130A | 130BB0814 | 1 | ||
BOLT-FLANGED,10X16 | 130B | 130BB1016 | 4 | ||
COVER,FRONT BUMPER,F.BLACK | 14091 | 14091-0961-6Z | 1 | ||
CAP-END | 39031 | 39031-0011 | 2 | ||
GUARD,ENGINE | 55020 | 55020-0065 | 1 | ||
GUARD,REAR GEAR BOX | 55020A | 55020-0105 | 1 | ||
GUARD,FR | 55020B | 55020-0392 | 1 | ||
GUARD,FRONT SKID,F.BLACK | 55020C | 55020-0426-6Z | 1 | ||
COLLAR,L=4.7 | 92027 | 92027-1964 | 6 | ||
RIVET | 92039 | 92039-1229 | 2 | ||
DAMPER,RUBBER | 92075 | 92075-261 | 2 | ||
COLLAR | 92143 | 92143-1087 | 8 | ||
COLLAR | 92152 | 92152-0198 | 1 | ||
BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 2 |
BOLT-FLANGED,6X14 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X14 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,10X16 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COVER,FRONT BUMPER,F.BLACK | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-END | |
REF # | 39031 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUARD,ENGINE | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,REAR GEAR BOX | |
REF # | 55020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FR | |
REF # | 55020B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FRONT SKID,F.BLACK | |
REF # | 55020C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=4.7 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RIVET | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,RUBBER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X22 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
