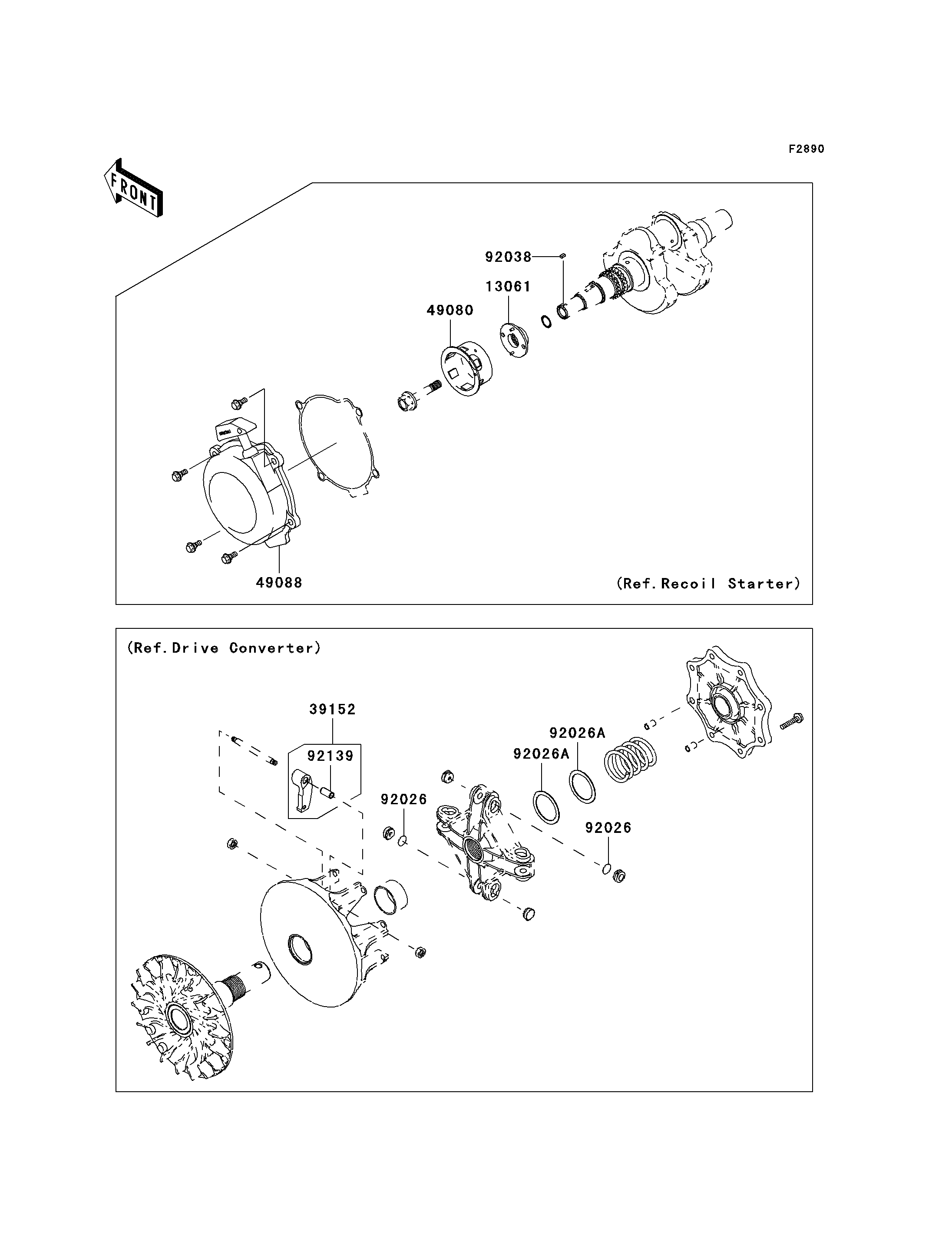

2009 Brute Force 750 4x4i Hardwoods Green HD - Optional Parts(E8F-E9FA)

13061
39152
49080
49088
92026
92026
92026A
92026A
92038
92139
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS 13061 13061-1873 1 (OPTION)
WEIGHT-RAMP 39152 39152-0028 4 (OPTION)
PULLEY-STARTING 49080 49080-1061 1 (OPTION)
STARTER-RECOIL 49088 49088-1058 1 (OPTION)
SPACER,T=0.1 92026 92026-0038 2 (OPTION)
SPACER,39X49.5X1.0 92026A 92026-1603 2 (OPTION)
KEY,SUNK 92038 92038-1051 1 (OPTION)
BUSHING 92139 92139-0215 4 (OPTION)
