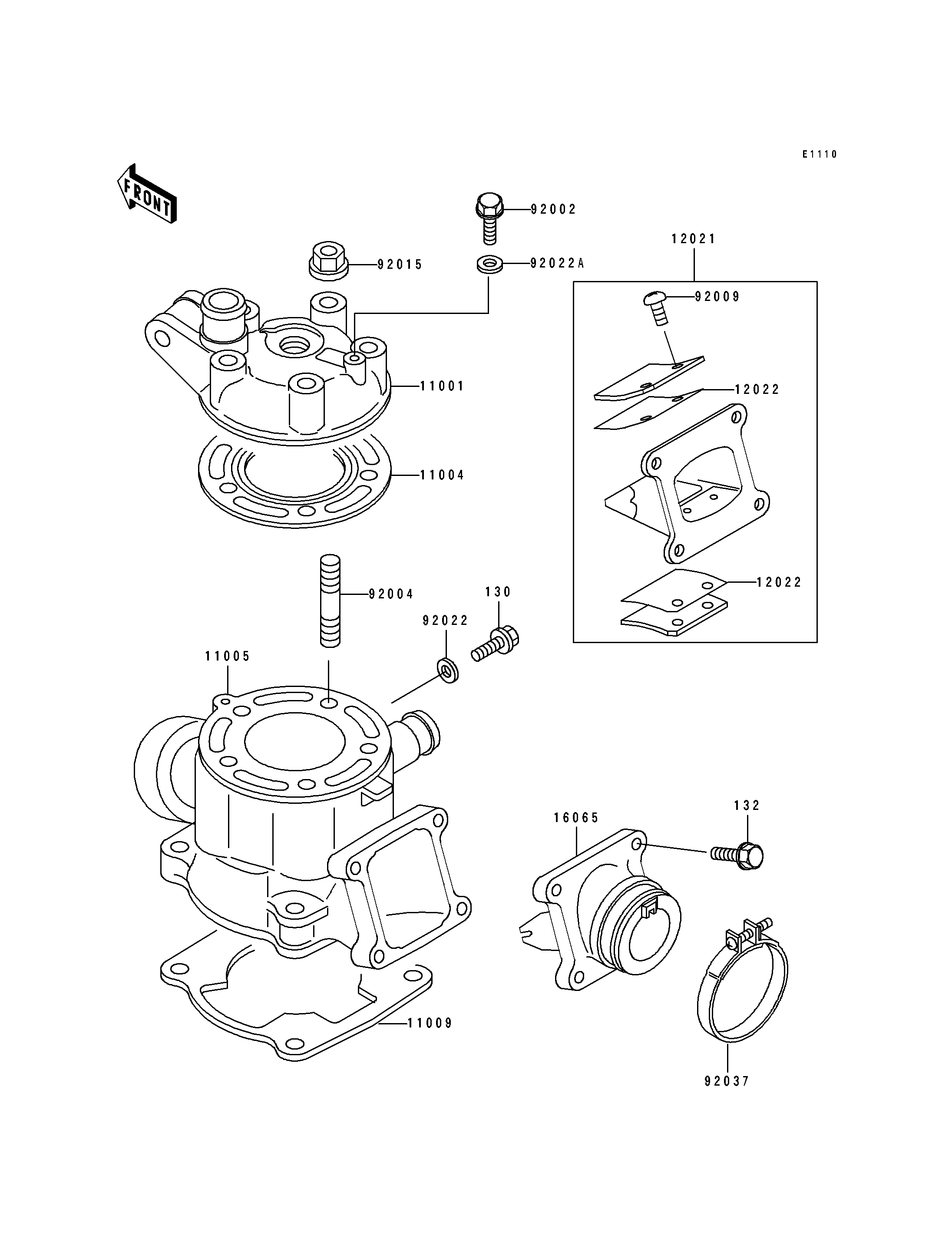

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1336 1
GASKET-HEAD 11004 11004-1214 1
CYLINDER-ENGINE 11005 11005-1633 1
GASKET,CYLINDER BASE 11009 11009-1970 1
VALVE-ASSY-REED 12021 12021-1075 1
VALVE-REED 12022 12022-1054 2
HOLDER-CARBURETOR 16065 16065-1224 1
BOLT,6X10 92002 92002-1222 1
STUD,8X32 92004 92004-1197 5
SCREW,REED VALVE 92009 92009-1014 4
NUT,8MM 92015 92015-1143 5
WASHER,6.1X12X1 92022 92022-077 1
WASHER,6.2X11X1 92022A 92022-304 1
CLAMP 92037 92037-1843 1
BOLT-FLANGED,6X8 130 130B0608 1
BOLT-FLANGED-SMALL 132 132G0620 4
