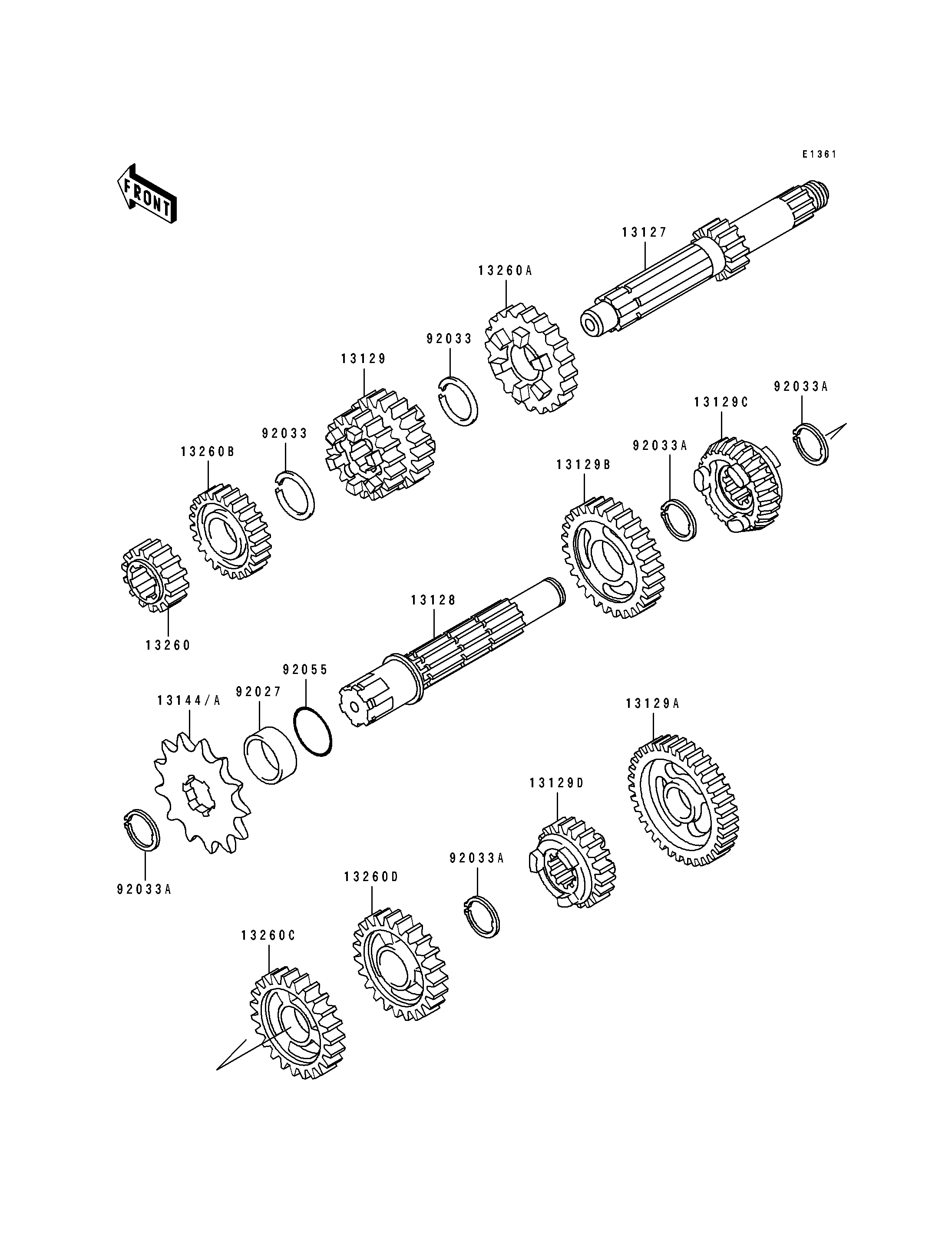

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1217 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1126 | 1 | ||
GEAR,INPUT 3RD&4TH,18T&20T | 13129 | 13129-1722 | 1 | ||
GEAR,OUTPUT LOW,33T | 13129A | 13129-1725 | 1 | ||
GEAR,OUTPUT 2ND,30T | 13129B | 13129-1726 | 1 | ||
GEAR,OUTPUT 5TH,24T | 13129C | 13129-1729 | 1 | ||
GEAR,OUTPUT 6TH,22T | 13129D | 13129-1730 | 1 | ||
SPROCKET-OUTPUT,14T | 13144 | 13144-1022 | 1 | (OPTION) | |
SPROCKET-OUTPUT,13T | 13144A | 13144-1023 | 1 | ||
GEAR,INPUT 2ND,16T | 13260 | 13260-1014 | 1 | ||
GEAR,INPUT 6TH,23T | 13260A | 13260-1015 | 1 | ||
GEAR,INPUT 5TH,22T | 13260B | 13260-1022 | 1 | ||
GEAR,OUTPUT 3RD,27T | 13260C | 13260-1023 | 1 | ||
GEAR,OUTPUT 4TH,25T | 13260D | 13260-1024 | 1 | ||
COLLAR,20X25X12.5 | 92027 | 92027-1077 | 1 | ||
RING-SNAP | 92033 | 92033-028 | 2 | ||
RING-SNAP,18MM | 92033A | 92033-1079 | 4 | ||
RING-O,17.5X1.5 | 92055 | 92055-022 | 1 |
SHAFT-TRANSMISSION INPUT,13T | |
REF # | 13127 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION OUTPUT | |
REF # | 13128 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 3RD&4TH,18T&20T | |
REF # | 13129 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT LOW,33T | |
REF # | 13129A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 2ND,30T | |
REF # | 13129B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 5TH,24T | |
REF # | 13129C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 6TH,22T | |
REF # | 13129D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-OUTPUT,14T | |
REF # | 13144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-OUTPUT,13T | |
REF # | 13144A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 2ND,16T | |
REF # | 13260 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 6TH,23T | |
REF # | 13260A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 5TH,22T | |
REF # | 13260B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 3RD,27T | |
REF # | 13260C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 4TH,25T | |
REF # | 13260D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,20X25X12.5 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,18MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,17.5X1.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
