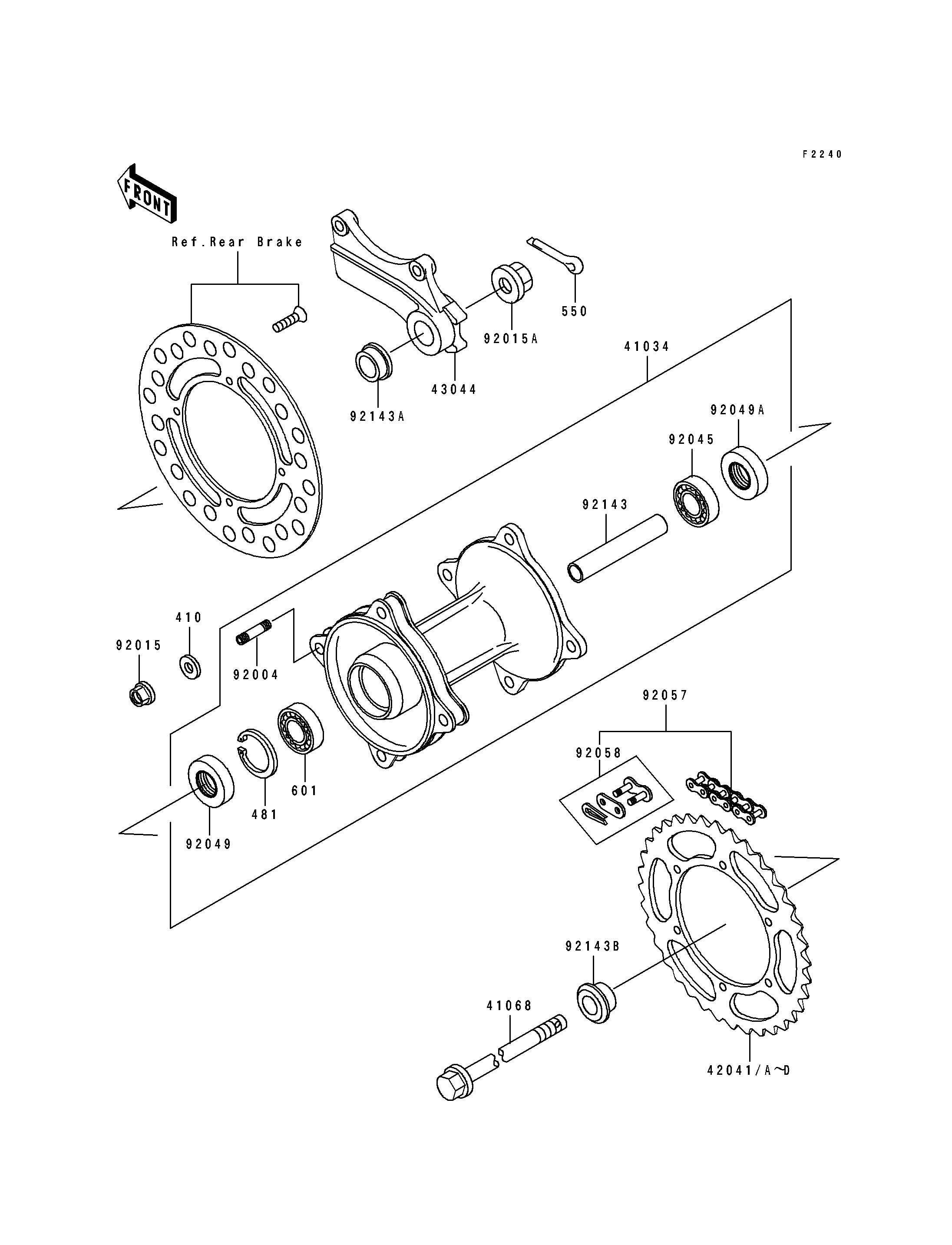

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1194 | 1 | ||
| AXLE,RR | 41068 | 41068-1302 | 1 | ||
| SPROCKET-HUB,54T | 42041 | 42041-1223 | 1 | ||
| SPROCKET-HUB,52T | 42041A | 42041-1245 | 1 | (OPTION) | |
| SPROCKET-HUB,53T | 42041B | 42041-1246 | 1 | (OPTION) | |
| SPROCKET-HUB,55T | 42041C | 42041-1247 | 1 | (OPTION) | |
| SPROCKET-HUB,56T | 42041D | 42041-1248 | 1 | (OPTION) | |
| HOLDER-COMP-CALIPER | 43044 | 43044-1073 | 1 | ||
| STUD,8X16 | 92004 | 92004-1183 | 4 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| NUT,FLANGED,12MM | 92015A | 92015-1433 | 1 | ||
| BEARING-BALL,TMB201LLUC3/2A | 92045 | 92045-1062 | 1 | ||
| SEAL-OIL,DD20377 | 92049 | 92049-1096 | 1 | ||
| SEAL-OIL,DC17343.5 | 92049A | 92049-1290 | 1 | ||
| CHAIN,DRIVE,DID420DSX124L | 92057 | 92057-1315 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1066 | 1 | ||
| COLLAR,12.2X17.3X107.5 | 92143 | 92143-1282 | 1 | ||
| COLLAR,REAR AXLE,L=12 | 92143A | 92143-1284 | 1 | ||
| COLLAR,REAR AXLE,L=14.5 | 92143B | 92143-1286 | 1 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 4 | ||
| CIRCLIP-TYPE-C,37MM | 481 | 481J3700 | 1 | ||
| PIN-COTTER,2.5X20 | 550 | 550D2520 | 1 | ||
| BEARING-BALL,#6201UUC3 | 601 | 601B6301UU | 1 |
| DRUM-ASSY,REAR BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,54T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,52T | |
| REF # | 42041A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,53T | |
| REF # | 42041B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,55T | |
| REF # | 42041C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET-HUB,56T | |
| REF # | 42041D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| HOLDER-COMP-CALIPER | |
| REF # | 43044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X16 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,TMB201LLUC3/2A | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,DD20377 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,DC17343.5 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,DID420DSX124L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12.2X17.3X107.5 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE,L=12 | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE,L=14.5 | |
| REF # | 92143B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,37MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,2.5X20 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6201UUC3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
