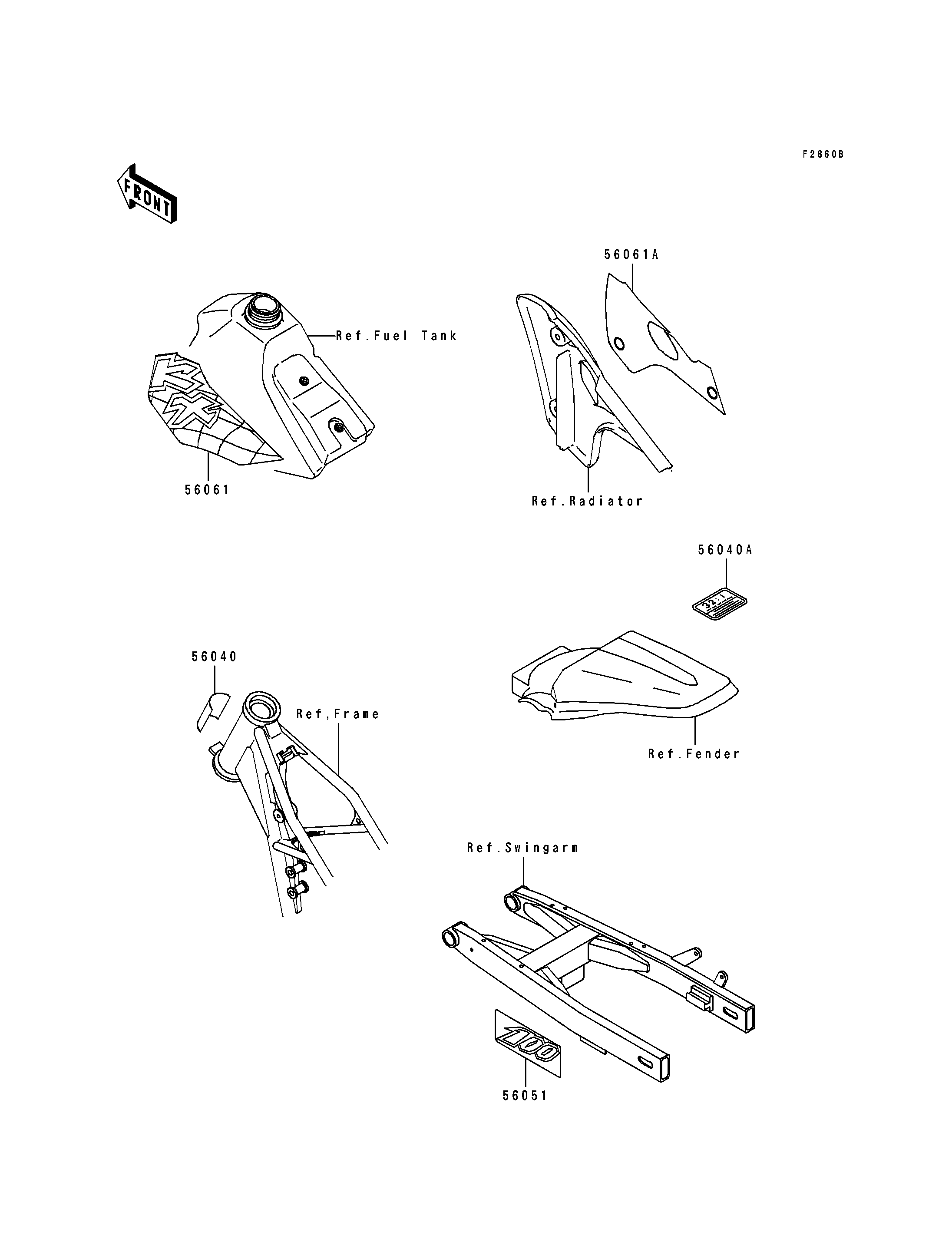

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-WARNING,NOISE 56040 56040-1101 1
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1
MARK,SWING ARM,100 56051 56051-1498 2
PATTERN,FUEL TANK,LH 56061 56061-1774 1
PATTERN,SHROUD,RH 56061A 56061-1775 1
