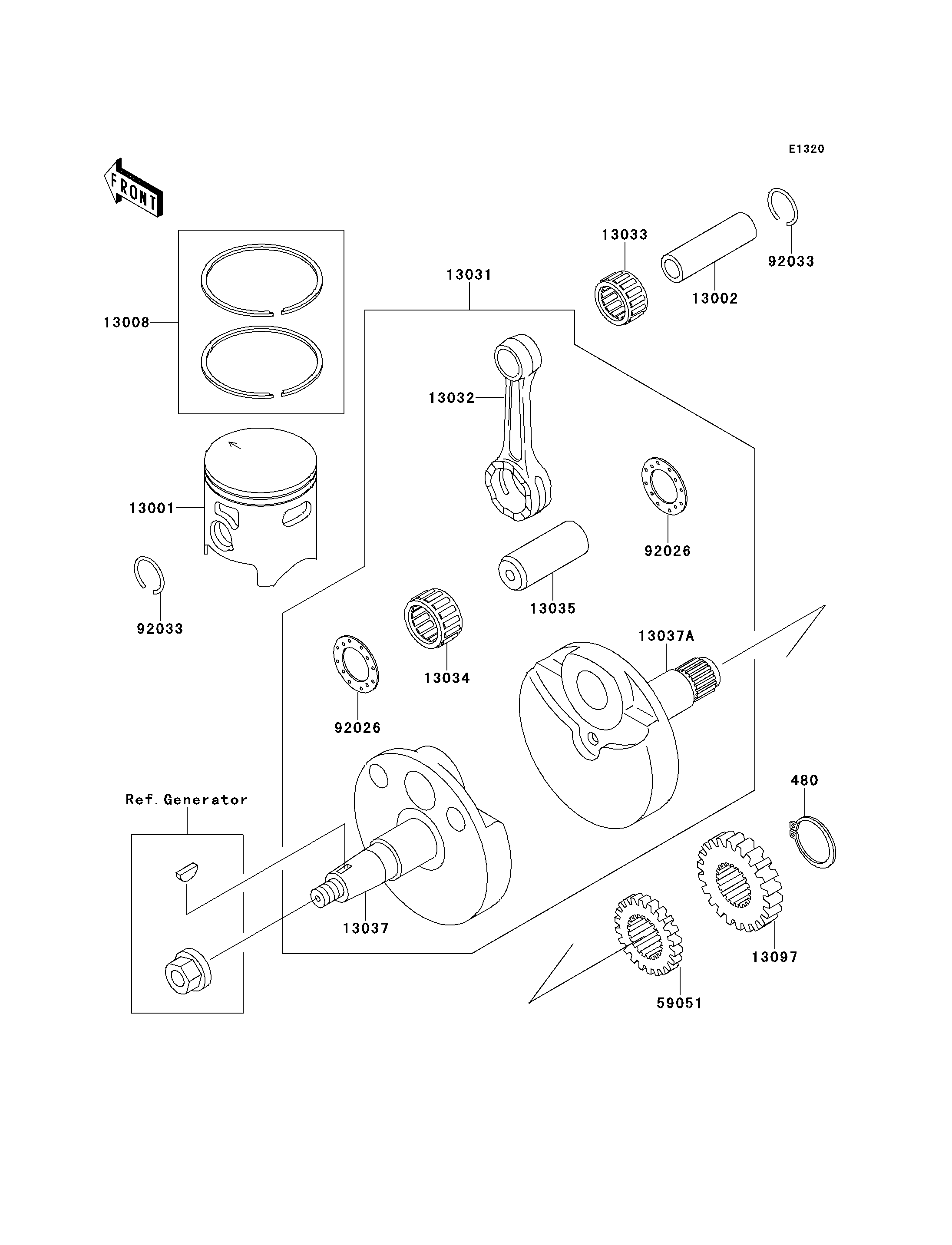

Parts Diagrams |
480
13001
13002
13008
13031
13032
13033
13034
13035
13037
13037A
13097
59051
92026
92026
92033
92033
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 1 | ||
PISTON-ENGINE | 13001 | 13001-1503 | 1 | ||
PIN-PISTON | 13002 | 13002-1018 | 1 | ||
RING-SET-PISTON | 13008 | 13008-1107 | 1 | ||
CRANKSHAFT-COMP | 13031 | 13031-1433 | 1 | ||
ROD-CONNECTING | 13032 | 13032-1230 | 1 | ||
BEARING-SMALL END,14R1818AP-1 | 13033 | 13033-1053 | 1 | ||
BEARING-BIG END,B4 | 13034 | 13034-1104 | 1 | ||
PIN-CRANK | 13035 | 13035-1054 | 1 | ||
CRANKSHAFT,LH | 13037 | 13037-1571 | 1 | ||
CRANKSHAFT,RH | 13037A | 13037-1572 | 1 | ||
GEAR-PRIMARY SPUR,20T | 13097 | 13097-1148 | 1 | ||
GEAR-SPUR,PUMP,23T | 59051 | 59051-1146 | 1 | ||
SPACER,22.2X37X1.0 | 92026 | 92026-1136 | 2 | ||
RING-SNAP | 92033 | 92033-1050 | 2 |
CIRCLIP-TYPE-C,16MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-PISTON | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SET-PISTON | |
REF # | 13008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP | |
REF # | 13031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-CONNECTING | |
REF # | 13032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-SMALL END,14R1818AP-1 | |
REF # | 13033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BIG END,B4 | |
REF # | 13034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-CRANK | |
REF # | 13035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT,LH | |
REF # | 13037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT,RH | |
REF # | 13037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-PRIMARY SPUR,20T | |
REF # | 13097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,PUMP,23T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,22.2X37X1.0 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
