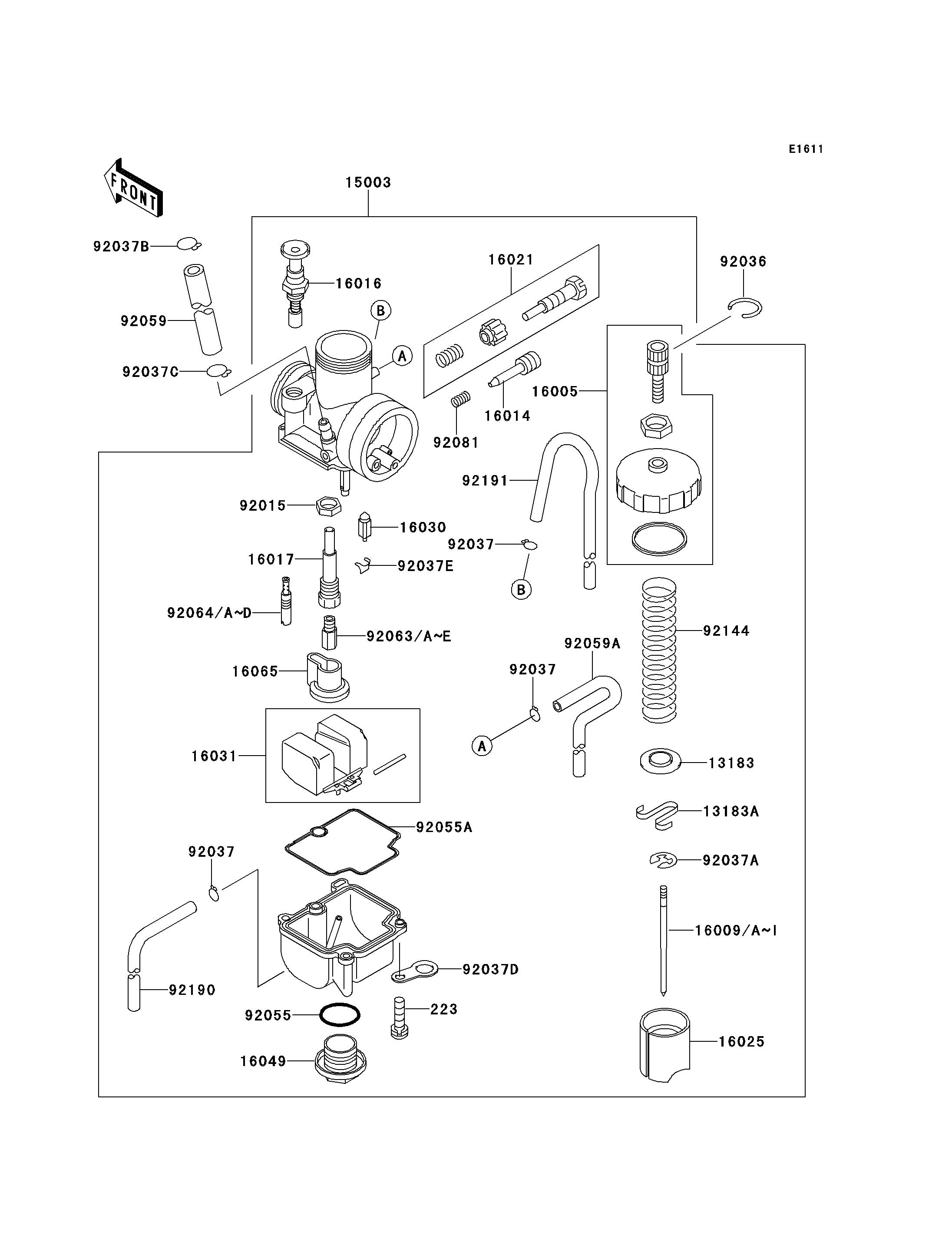

1999 KX100 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13183
13183
13183A
13183A
15003
15003
16005
16005
16009
16009
16009A
16009A
16009B
16009B
16009C
16009C
16009D
16009D
16009E
16009E
16009F
16009F
16009G
16009G
16009H
16009H
16009I
16009I
16014
16014
16016
16016
16017
16017
16021
16021
16025
16025
16030
16030
16031
16031
16049
16049
16065
16065
92015
92015
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92037D
92037D
92037E
92037E
92055
92055
223
223
92055A
92055A
92059
92059
92059A
92059A
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92064D
92064D
92081
92081
92144
92144
92190
92190
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13183 13183-1162 1
PLATE,THROTTLE 13183A 13183-1250 1
CARBURETOR-ASSY 15003 15003-1414 1
TOP-CHAMBER 16005 16005-1077 1
NEEDLE-JET,N5HG 16009 16009-1953 1 (OPTION)
NEEDLE-JET,N5HD 16009A 16009-1958 1 (OPTION)
NEEDLE-JET,N5HE 16009B 16009-1959 1 (OPTION)
NEEDLE-JET,N5HF 16009C 16009-1960 1
NEEDLE-JET,N5HH 16009D 16009-1961 1 (OPTION)
NEEDLE-JET,N5JD 16009E 16009-1963 1 (OPTION)
NEEDLE-JET,N5JE 16009F 16009-1964 1 (OPTION)
NEEDLE-JET,N5JF 16009G 16009-1965 1 (OPTION)
NEEDLE-JET,N5JG 16009H 16009-1966 1 (OPTION)
NEEDLE-JET,N5JH 16009I 16009-1967 1 (OPTION)
SCREW-PILOT AIR 16014 16014-1033 1
PLUNGER,STARTER 16016 16016-1028 1
JET-NEEDLE 16017 16017-1365 1
SCREW-THROTTLE STOP 16021 16021-1166 1
VALVE-THROTTLE,CA3.0 16025 16025-1162 1
VALVE-FLOAT 16030 16030-1064 1
FLOAT 16031 16031-1083 1
COVER-MAIN JET 16049 16049-1051 1
HOLDER-CARBURETOR 16065 16065-1162 1
NUT 92015 92015-1674 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1396 3
CLAMP,JET NEEDLE 92037A 92037-1401 1
CLAMP,TUBE 92037B 92037-147 1
CLAMP 92037C 92037-1712 1
CLAMP,HOSE 92037D 92037-1969 1
CLAMP,FLOAT 92037E 92037-1991 1
RING-O,MAIN JET COVER 92055 92055-1167 1
SCREW-PAN-WS-CROS 223 223C0416 2
RING-O,FLOAT CHAMBER 92055A 92055-1389 1
TUBE,5X10X160 92059 92059-1826 1
TUBE,4X7X360 92059A 92059-1941 1
JET-MAIN,#125 92063 92063-1334 1
JET-MAIN,#128 92063A 92063-1335 1 (OPTION)
JET-MAIN,#130 92063B 92063-1336 1 (OPTION)
JET-MAIN,#135 92063C 92063-1338 1 (OPTION)
JET-MAIN,#120 92063D 92063-1357 1 (OPTION)
JET-MAIN,#122 92063E 92063-1358 1 (OPTION)
JET-PILOT,#52 92064 92064-1130 1 (OPTION)
JET-PILOT,#50 92064A 92064-1144 1 (OPTION)
JET-PILOT,#55 92064B 92064-1145 1
JET-PILOT,#58 92064C 92064-1146 1 (OPTION)
JET-PILOT,#60 92064D 92064-1147 1 (OPTION)
SPRING,ADJUST SCREW 92081 92081-1555 1
SPRING,THROTTLE VALVE 92144 92144-1177 1
TUBE,4X7X330 92190 92190-1291 1
TUBE,4X7X560 92191 92191-1243 1
