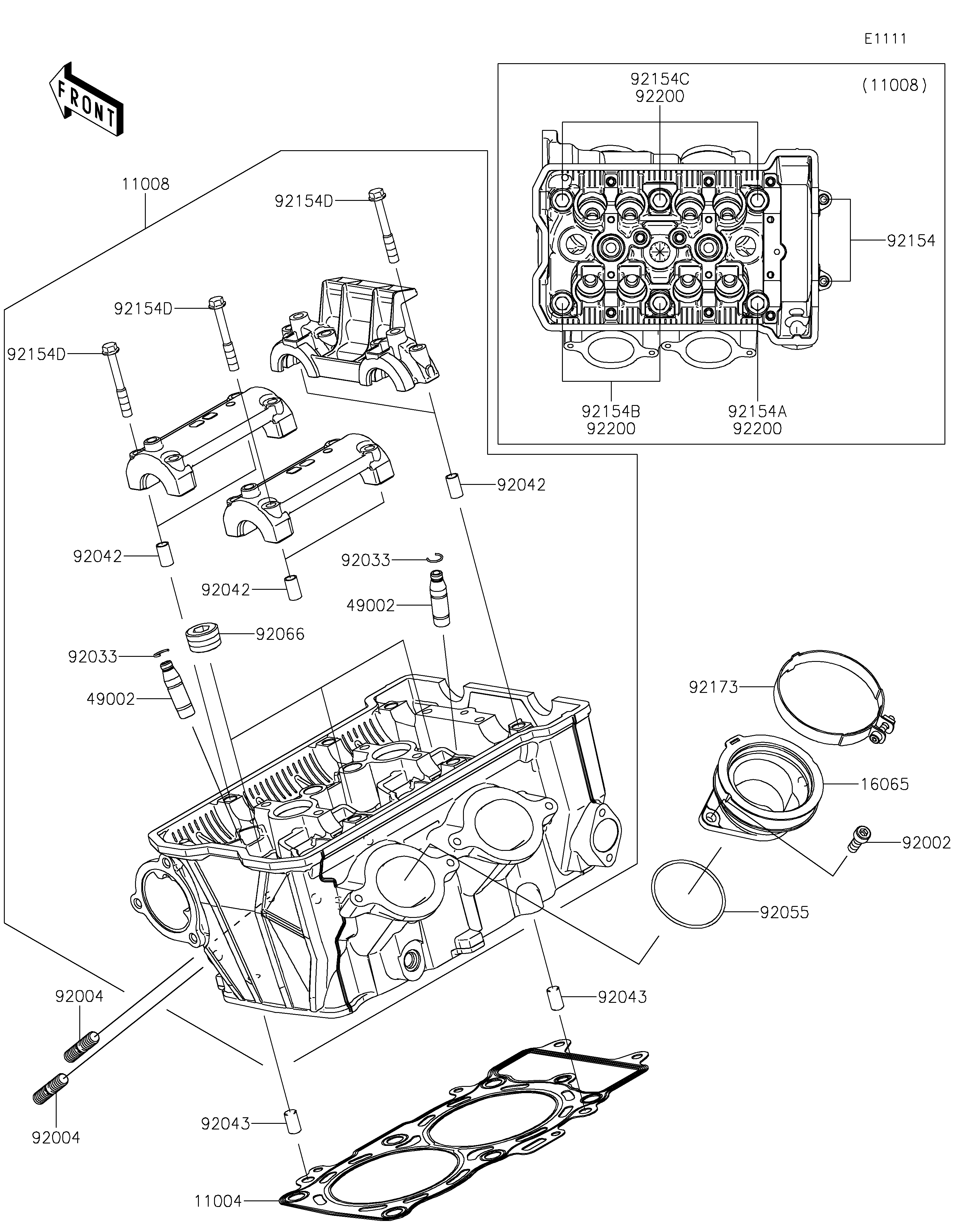

2020 Z650 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
16065
49002
49002
92002
92004
92004
92033
92033
92042
92042
92042
92043
92043
92055
92066
92154
92154A
92154B
92154C
92154D
92154D
92154D
92173
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0763 1
HEAD-COMP-CYLINDER 11008 11008-0976 1
HOLDER-CARBURETOR 16065 16065-0131 2
GUIDE-VALVE 49002 49002-0039 8
BOLT,6X16 92002 92002-1143 4
STUD,8X22 92004 92004-0025 4
RING-SNAP 92033 92033-1247 8
PIN,DOWEL,6.3X8X14 92042 92042-007 6
PIN,8X14 92043 92043-1567 2
RING-O,47X1.9 92055 92055-1600 2
PLUG,PT1/2X12.5 92066 92066-0002 3
BOLT,SOCKET,6X30 92154 92154-0116 2
BOLT,FLANGED,10X100 92154A 92154-2363 1
BOLT,FLANGED,10X158 92154B 92154-2364 2
BOLT,FLANGED,10X176 92154C 92154-2365 3
BOLT,FLANGED,6X45 92154D 92154-3737 12
CLAMP 92173 92173-0239 2
WASHER,10.5X19X2.3 92200 92200-0257 6
