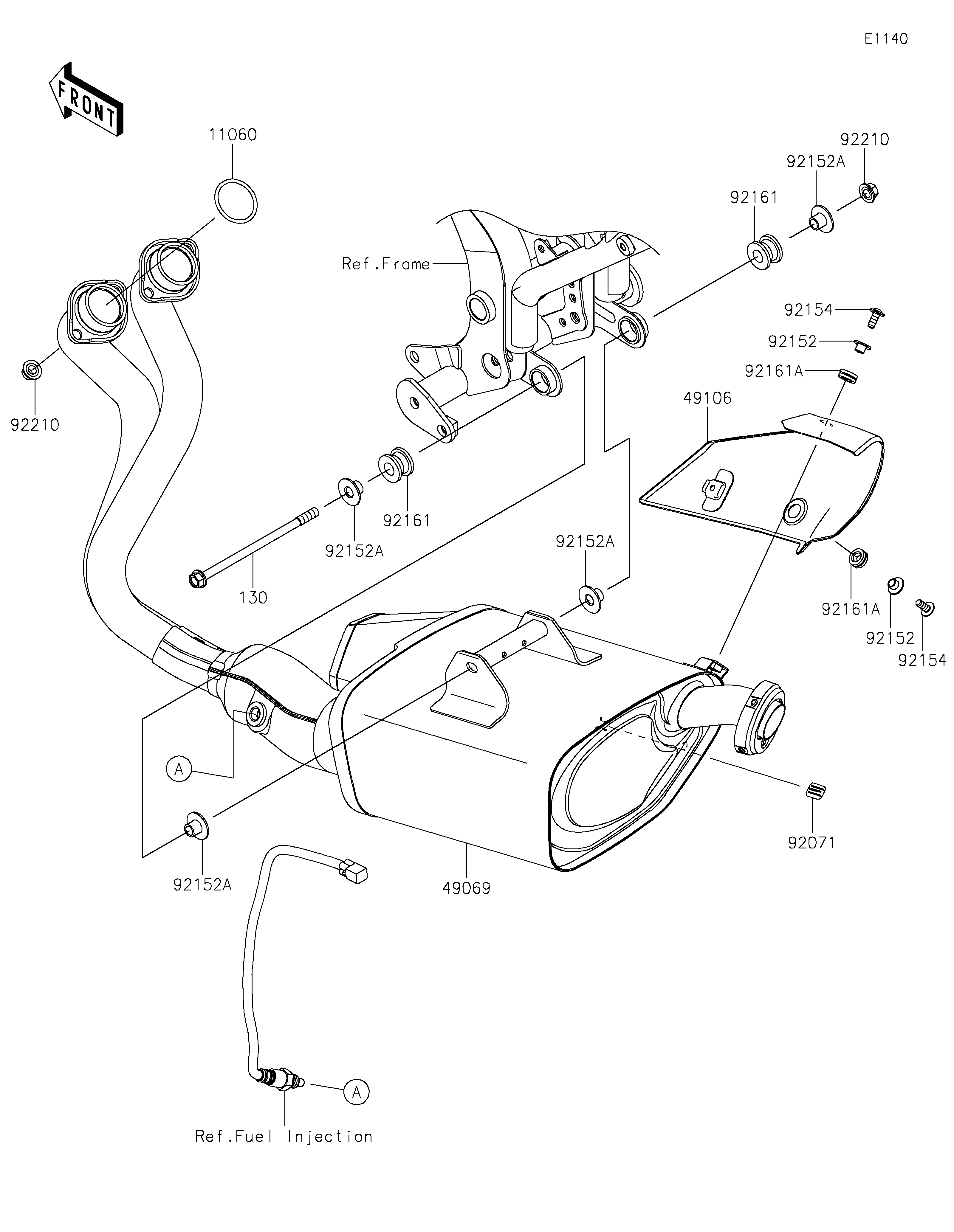

Parts Diagrams |
11060
130
49069
49106
92071
92152
92152
92152A
92152A
92152A
92152A
92154
92154
92161
92161
92161A
92161A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE HOLDER | 11060 | 11060-1103 | 2 | ||
| BOLT-FLANGED,8X145 | 130 | 130CD08145 | 1 | ||
| MUFFLER-ASSY | 49069 | 49069-0832 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-0796 | 1 | ||
| GROMMET | 92071 | 92071-0760 | 1 | ||
| COLLAR,6.3X8.3X7.2 | 92152 | 92152-1602 | 2 | ||
| COLLAR | 92152A | 92152-2367 | 4 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-0856 | 2 | ||
| DAMPER | 92161 | 92161-0193 | 2 | ||
| DAMPER | 92161A | 92161-1475 | 2 | ||
| NUT,8MM | 92210 | 92210-1114 | 5 |
