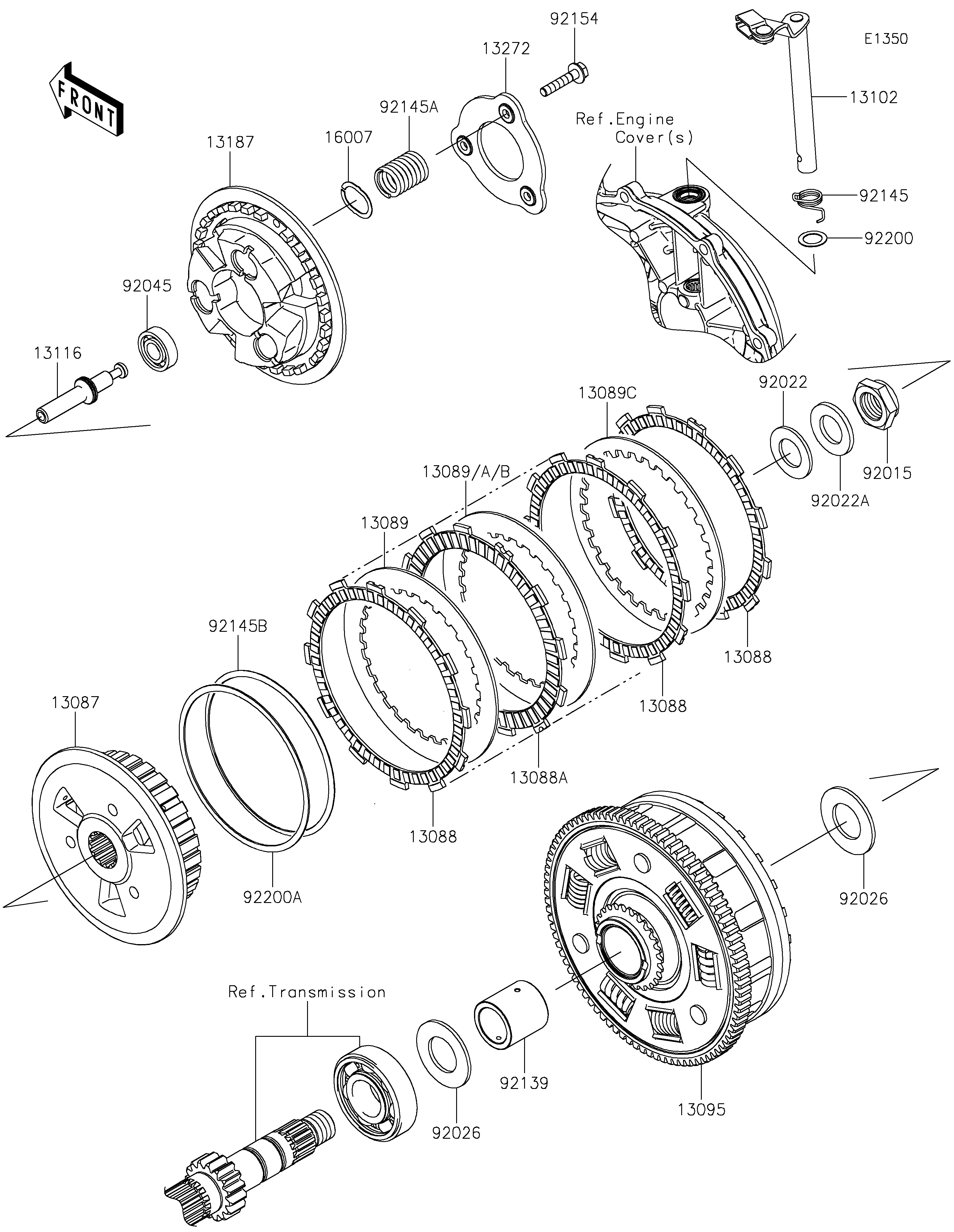

2020 Z650 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13088
13088A
13089
13089
13089A
13089B
13089C
13095
13102
13116
13187
13272
16007
92015
92022
92022A
92026
92026
92045
92139
92145
92145A
92145B
92154
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0581 1
PLATE-FRICTION 13088 13088-0557 3
PLATE-FRICTION 13088A 13088-0566 4
PLATE-CLUTCH,T=2.0 13089 13089-0021 5
PLATE-CLUTCH,T=1.6 13089A 13089-0038 AR
PLATE-CLUTCH,T=2.3 13089B 13089-0039 AR
PLATE-CLUTCH 13089C 13089-0558 1
HOUSING-COMP-CLUTCH 13095 13095-0585 1
RELEASE-COMP-CLUTCH 13102 13102-0070 1
ROD-PUSH 13116 13116-0734 1
PLATE-CLUTCH OPERATING 13187 13187-0029 1
PLATE 13272 13272-1303 1
SEAT-SPRING 16007 16007-0736 3
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
WASHER,20.3X36X3.7 92022A 92022-1868 1
SPACER,25.5X47X2.5 92026 92026-0716 2
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BUSHING 92139 92139-0710 1
SPRING,CLUTCH RELEASE 92145 92145-0897 1
SPRING 92145A 92145-1732 3
SPRING 92145B 92145-1765 1
BOLT,UPSET,6X30 92154 92154-0997 3
WASHER,12X18.5X0.5 92200 92200-1487 1
WASHER,T=1.0 92200A 92200-1579 1
