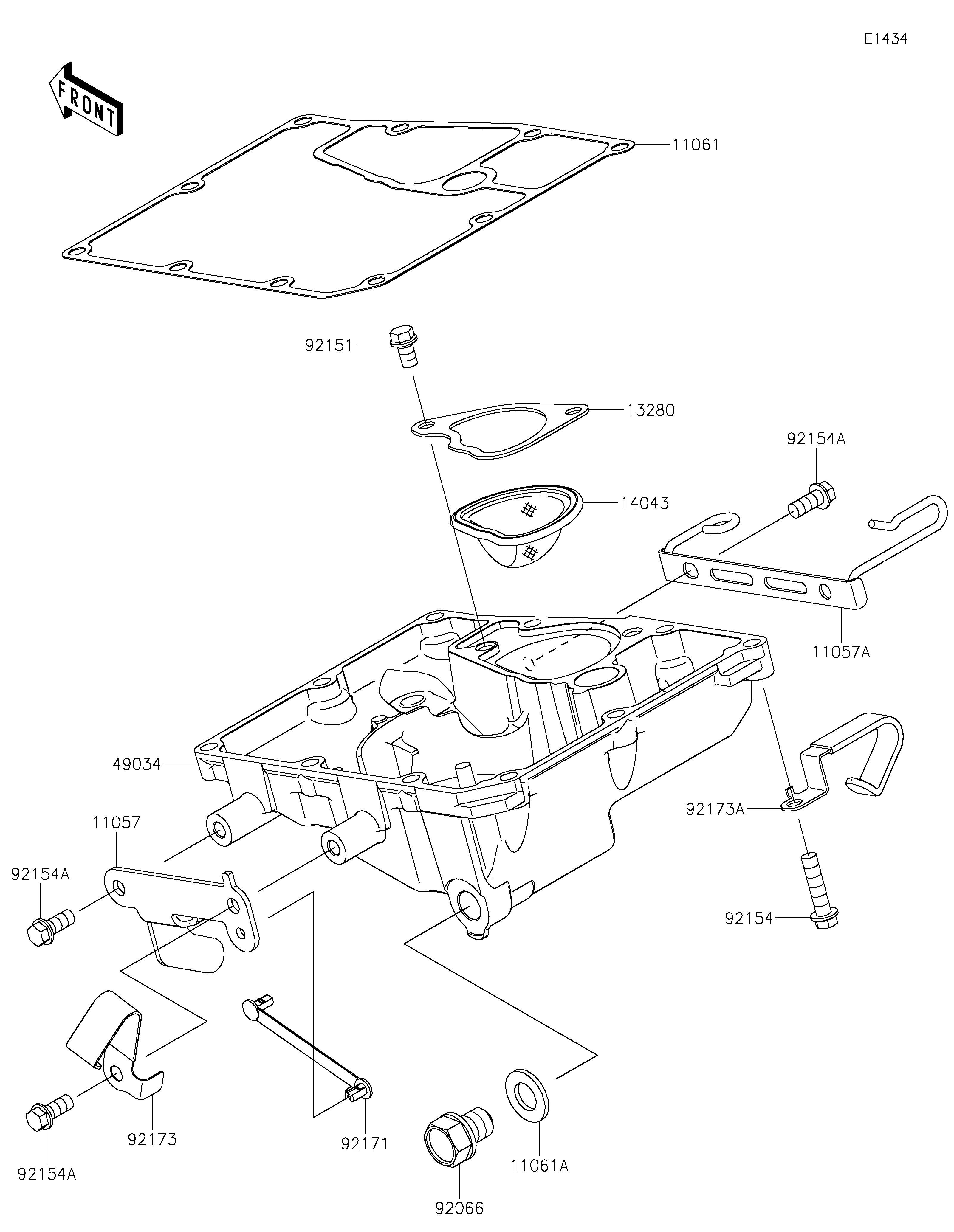

Parts Diagrams |
11057
11057A
11061
11061A
13280
14043
49034
92066
92151
92154
92154A
92154A
92154A
92171
92173
92173A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11057 | 11057-0046 | 1 | ||
| BRACKET,RH | 11057A | 11057-0047 | 1 | ||
| GASKET,OIL PAN | 11061 | 11061-0167 | 1 | ||
| GASKET,12X22X2 | 11061A | 11061-0417 | 1 | ||
| HOLDER,OIL FILTER | 13280 | 13280-0134 | 1 | ||
| FILTER,OIL(SCAVENGE) | 14043 | 14043-0008 | 1 | ||
| PAN-OIL | 49034 | 49034-0552 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-0767 | 1 | ||
| BOLT,FLANGED-SMALL,6X10 | 92151 | 92151-1389 | 2 | ||
| BOLT,FLANGED,6X25 | 92154 | 92154-0819 | 10 | ||
| BOLT,FLANGED,6X14 | 92154A | 92154-1426 | 4 | ||
| CLAMP,SPEED | 92171 | 92171-0836 | 1 | ||
| CLAMP,84MM | 92173 | 92173-1008 | 1 | ||
| CLAMP | 92173A | 92173-1693 | 1 |
