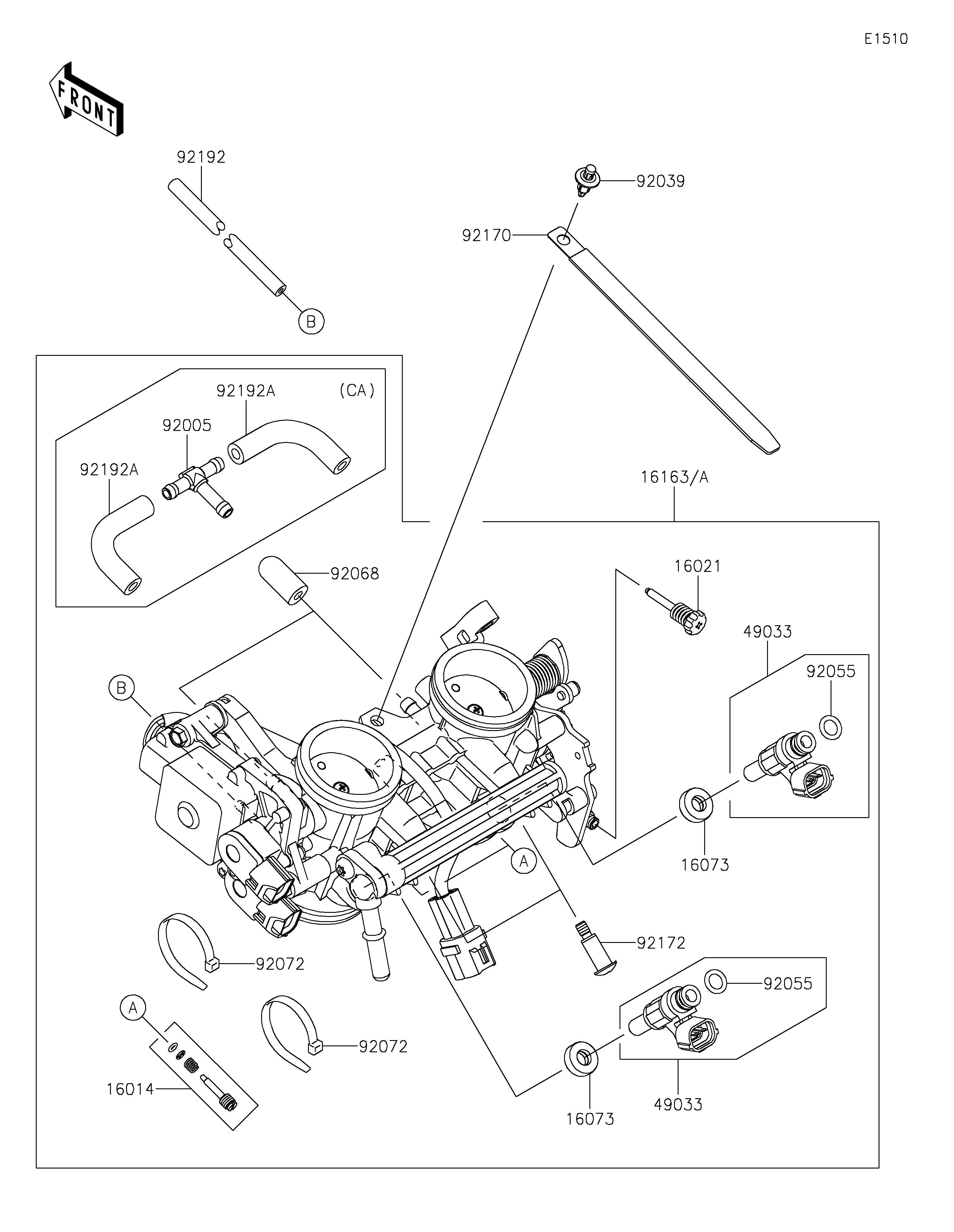

2020 Z650 - Throttle

DOWNLOAD PDF
SELECT A NEW PART
16014
16021
16073
16073
16163A
49033
49033
92005
92039
92055
92055
92072
92072
92170
92172
92192
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PILOT AIR 16014 16014-0002 2
SCREW-THROTTLE STOP 16021 16021-0033 1
INSULATOR 16073 16073-0129 2
THROTTLE-ASSY 16163A 16163-1131 1 _________________________________________CA
NOZZLE-INJECTION 49033 49033-0568 2
FITTING,3WAY 92005 92005-0730 1 _________________________________________CA
RIVET 92039 92039-0707 1
RING-O,INJECTION NOZZLE 92055 92055-0124 2
BAND,SUB-HARNESS 92072 92072-0012 2
CLAMP,L=150 92170 92170-1114 1
SCREW,PIPE INJECTION 92172 92172-0064 2
TUBE,3X6.7X300 92192 92192-0977 1
TUBE 92192A 92192-1045 2 _________________________________________CA
