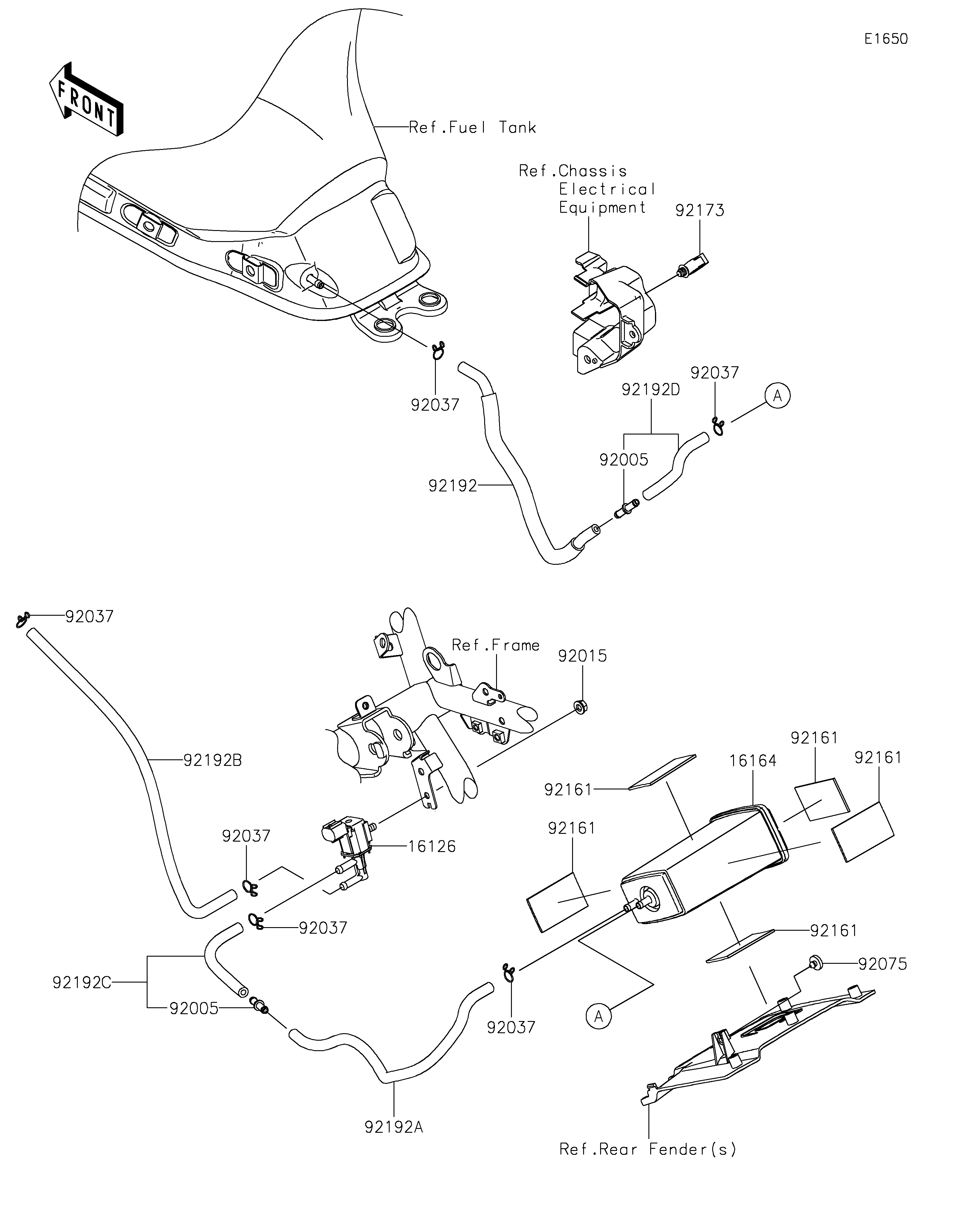

2020 Z650 - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
16126
16164
92005
92005
92015
92037
92037
92037
92037
92037
92037
92075
92161
92161
92161
92161
92161
92173
92192
92192A
92192B
92192C
92192D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,SOLENOID 16126 16126-0705 1 _________________________________________CA
CANISTER 16164 16164-0012 1 _________________________________________CA
FITTING 92005 92005-0721 2 _________________________________________CA
NUT,FLANGED,6MM 92015 92015-1367 1 _________________________________________CA
CLAMP,TUBE 92037 92037-147 6 _________________________________________CA
DAMPER,BOOST SENSOR 92075 92075-2113 1 _________________________________________CA
DAMPER 92161 92161-1883 5 _________________________________________CA
CLAMP,HOLDER CLIP 92173 92173-0868 1 _________________________________________CA
TUBE,TANK-FITTING 92192 92192-1659 1 _________________________________________CA
TUBE,CANISTER-FITTING 92192A 92192-1660 1 _________________________________________CA
TUBE,VALVE-THROTTLE BODY 92192B 92192-1661 1 _________________________________________CA
TUBE,VALVE-FITTING 92192C 92192-1700 1 _________________________________________CA
TUBE,CANISTER-FITTING 92192D 92192-1701 1 _________________________________________CA
