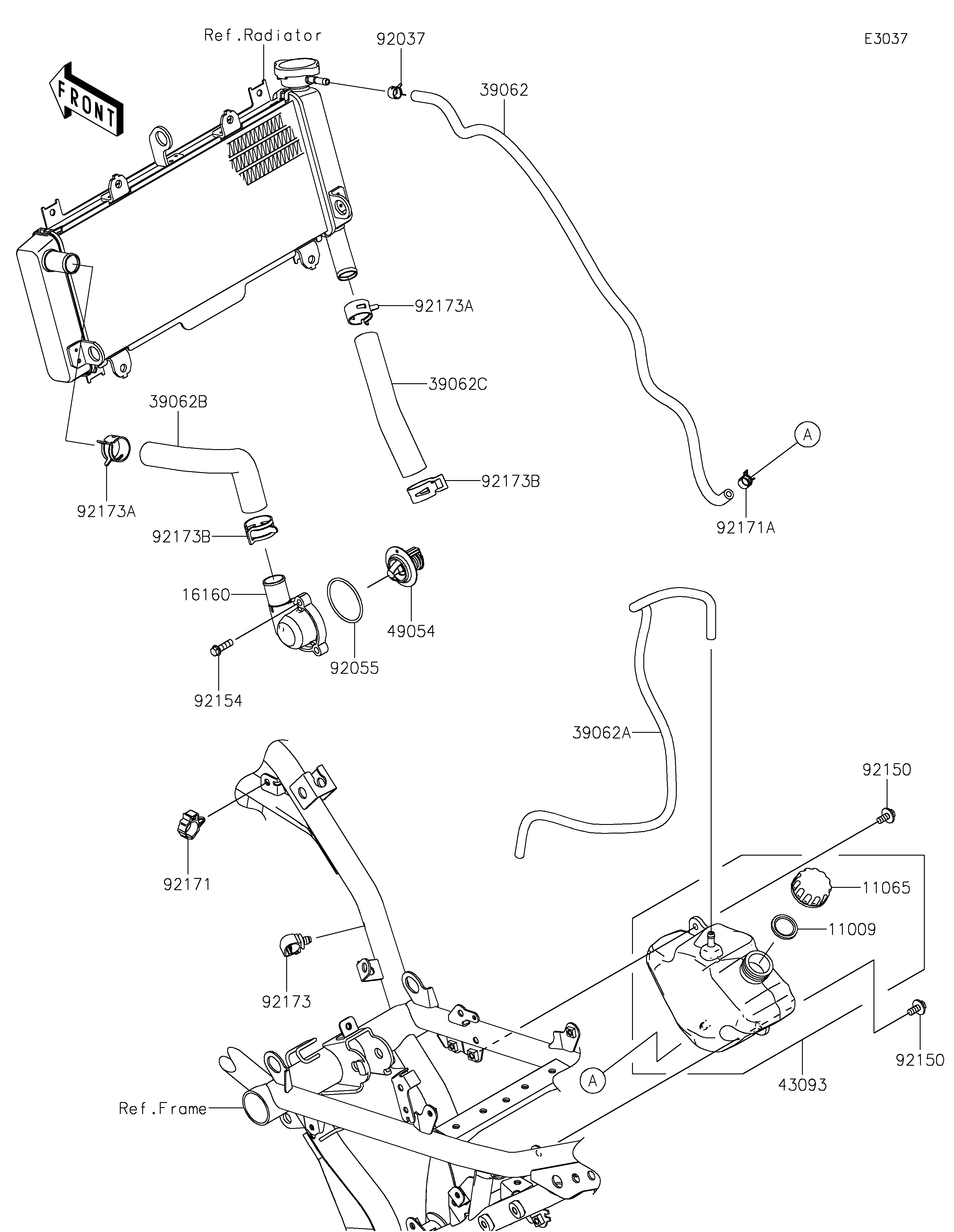

2020 Z650 - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11065
16160
39062
39062A
39062B
39062C
43093
49054
92037
92055
92150
92150
92154
92171
92171A
92173
92173A
92173A
92173B
92173B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11065 11065-0962 1
BODY,THERMO 16160 16160-0793 1
HOSE-COOLING,RADI.-RESERVOIR 39062 39062-0745 1
HOSE-COOLING,BREATHER 39062A 39062-0746 1
HOSE-COOLING,HEAD-RADIATOR 39062B 39062-0747 1
HOSE-COOLING,RADIATOR-PUMP 39062C 39062-0748 1
RESERVOIR-ASSY-TANK 43093 43093-0003 1
THERMOSTAT 49054 49054-0001 1
CLAMP 92037 92037-2113 1
RING-O,44.7X2.4 92055 92055-0160 1
BOLT,6X14 92150 92150-1340 2
BOLT,FLANGED,6X20 92154 92154-1778 3
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP,10.5X8X0.7 92171A 92171-1992 1
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-1567 2
CLAMP 92173B 92173-1688 2
