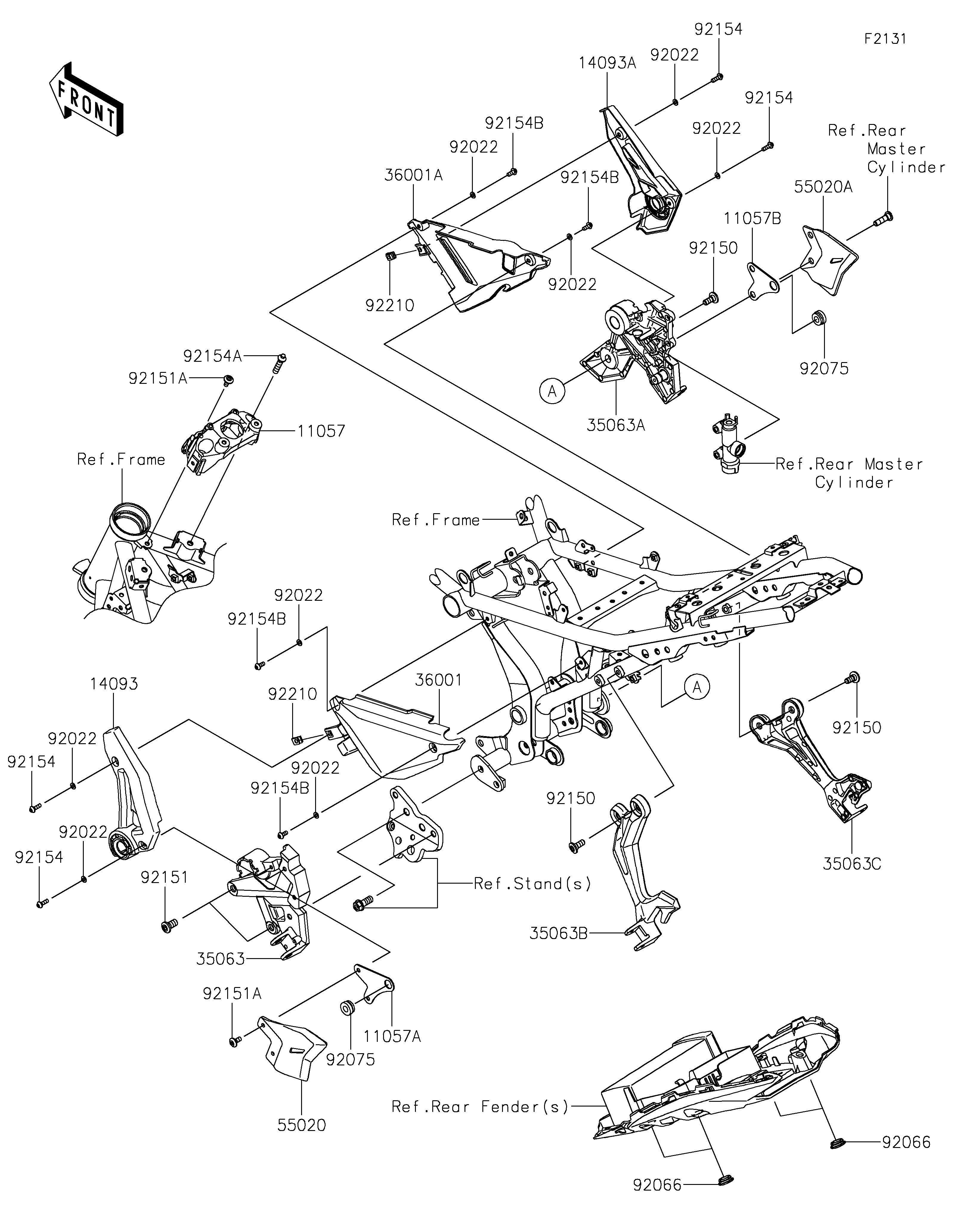

2020 Z650 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
14093
14093A
35063
35063A
35063B
35063C
36001
36001A
55020
55020A
92022
92022
92022
92022
92022
92022
92022
92022
92066
92066
92075
92075
92150
92150
92150
92151
92151A
92151A
92154
92154
92154
92154
92154A
92154B
92154B
92154B
92154B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IG. SWITCH 11057 11057-0079 1
BRACKET,STEP STAY,LH 11057A 11057-0476 1
BRACKET,STEP STAY,RH 11057B 11057-0477 1
COVER,STEP,LH,F.S.BLACK 14093 14093-0480-18T 1
COVER,STEP,RH,F.S.BLACK 14093A 14093-0623-18T 1
STAY,STEP,FR,LH,F.S.BLACK 35063 35063-1348-18R 1
STAY,STEP,FR,RH,F.S.BLACK 35063A 35063-1349-18R 1
STAY,STEP,RR,LH,F.S.BLACK 35063B 35063-1350-18R 1
STAY,STEP,RR,RH,F.S.BLACK 35063C 35063-1351-18R 1
COVER-SIDE,LH 36001 36001-0642 1
COVER-SIDE,RH 36001A 36001-0643 1
GUARD,HEEL,LH 55020 55020-1956 1
GUARD,HEEL,RH 55020A 55020-1957 1
WASHER,5.1X10X1.0 92022 92022-1977 8
PLUG 92066 92066-0096 4
DAMPER 92075 92075-277 2
BOLT,SOCKET,8X20 92150 92150-1760 5
BOLT,SOCKET,10X20 92151 92151-1557 2
BOLT,SOCKET,6X14 92151A 92151-1654 3
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,TORX,8X35 92154A 92154-0730 2
BOLT,SOCKET,5X12 92154B 92154-0917 4
NUT,PLATE,5MM 92210 92210-0935 2
