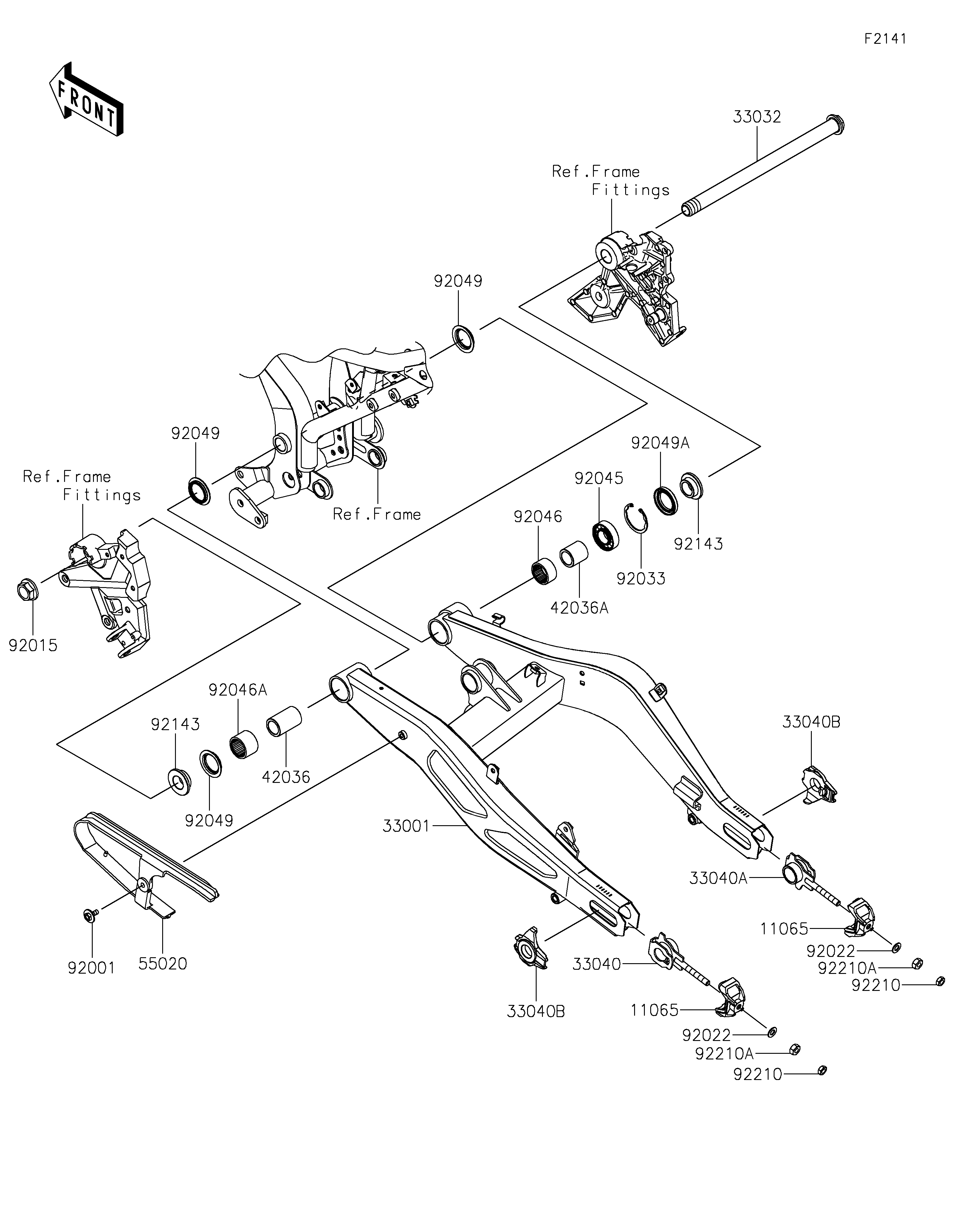

2020 Z650 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
33001
33032
33040
33040A
33040B
33040B
42036
42036A
55020
92001
92015
92022
92022
92033
92045
92046
92046A
92049
92049
92049
92049A
92143
92143
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.S.BLACK 11065 11065-0957-18R 2
ARM-COMP-SWING,F.S.BLACK 33001 33001-0663-18R 1
SHAFT-SWING ARM,20X298 33032 33032-0050 1
ADJUSTER-CHAIN,IN,LH 33040 33040-0085 1
ADJUSTER-CHAIN,IN,RH 33040A 33040-0086 1
ADJUSTER-CHAIN,OUTER,F.S.BLACK 33040B 33040-0087-18R 2
SLEEVE,20.1X28X43.5 42036 42036-0785 1
SLEEVE,20.1X28X29.5 42036A 42036-0786 1
GUARD,CHAIN 55020 55020-1959 1
BOLT,6X16 92001 92001-1950 1
NUT,FLANGED,20MM 92015 92015-1724 1
WASHER,8.5X16X1.2 92022 92022-1582 2
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 1
BEARING-NEEDLE,BM2824 92046A 92046-1202 1
SEAL-OIL 92049 92049-0132 3
SEAL-OIL 92049A 92049-0138 1
COLLAR,SWING ARM,RH,L=12.5 92143 92143-1727 2
NUT,8MM 92210 92210-0116 2
NUT,8MM 92210A 92210-0117 2
