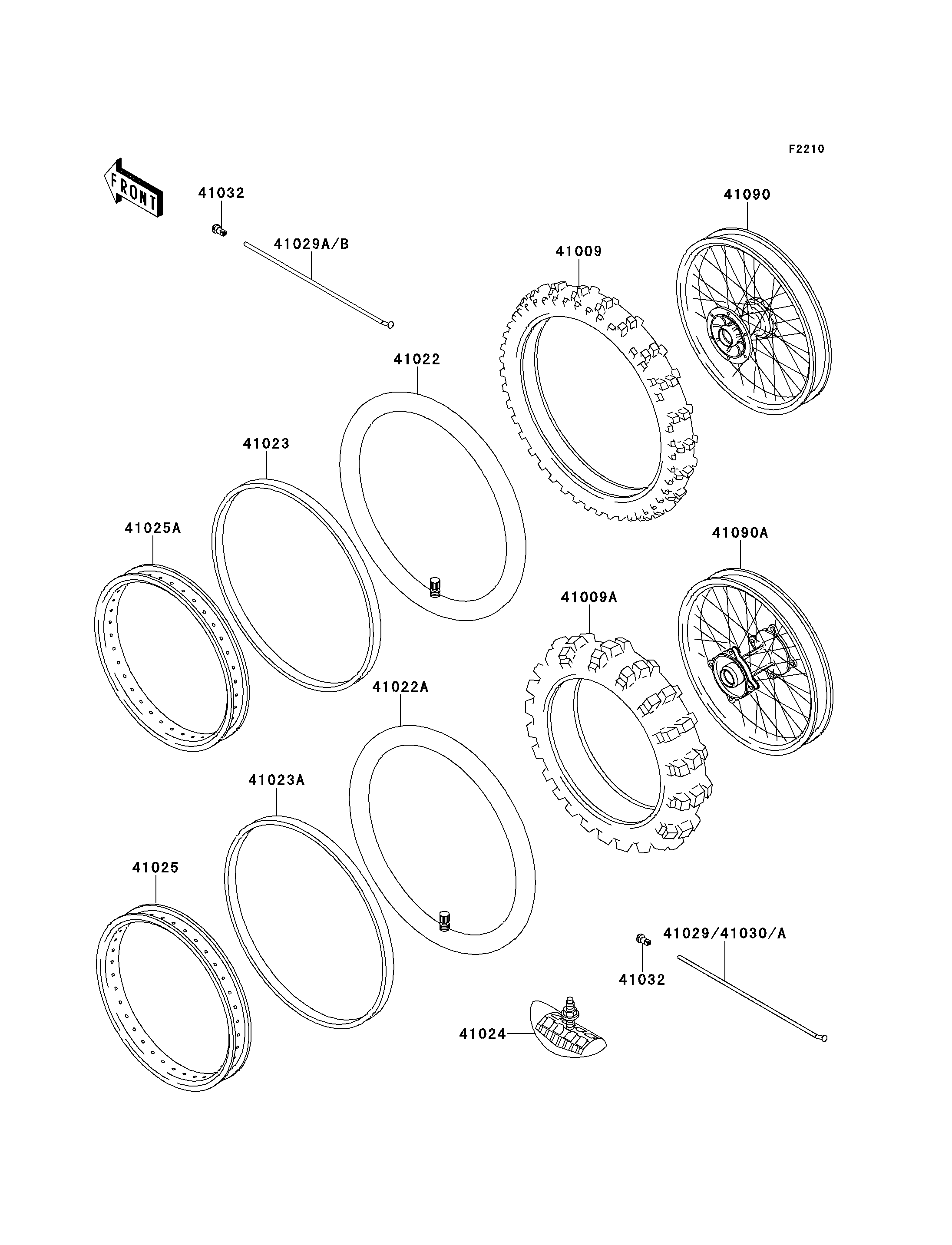

1999 KX100 - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41024
41025
41025A
41029
41029A
41029B
41030
41030A
41032
41032
41090
41090A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,70/100-19 42M,M61(BS) 41009 41009-1207 1
TIRE,RR,90/100-16 52M,M58(BS) 41009A 41009-1208 1
TUBE-TIRE,70/100-19(BS) 41022 41022-1203 1
TUBE-TIRE,90/100-16(BS) 41022A 41022-1204 1
BAND-RIM,X-19(BS) 41023 41023-1122 1
BAND-RIM,X-16A(BS) 41023A 41023-1123 1
STOPPER-RIM,1.85-M(DUNLOP) 41024 41024-011 1
RIM,RR,1.85X16 41025 41025-1347 1
RIM,FR,1.40X19 41025A 41025-1356 1
SPOKE-INNER,RR,179MMX170D 41029 41029-1278 14
SPOKE-INNER,FR,RH,211MMX165D 41029A 41029-1288 14
SPOKE-INNER,FR,LH,207MMX165D 41029B 41029-1289 14
SPOKE-OUTER,RR,RH,171MMX170D 41030 41030-1151 7
SPOKE-OUTER,RR,LH,175MMX170D 41030A 41030-1161 7
NIPPLE-SPOKE 41032 41032-1054 56
WHEEL-SUB ASSY,FR 41090 41090-1111 1 (OPTION)
WHEEL-SUB ASSY,RR 41090A 41090-1112 1 (OPTION)
