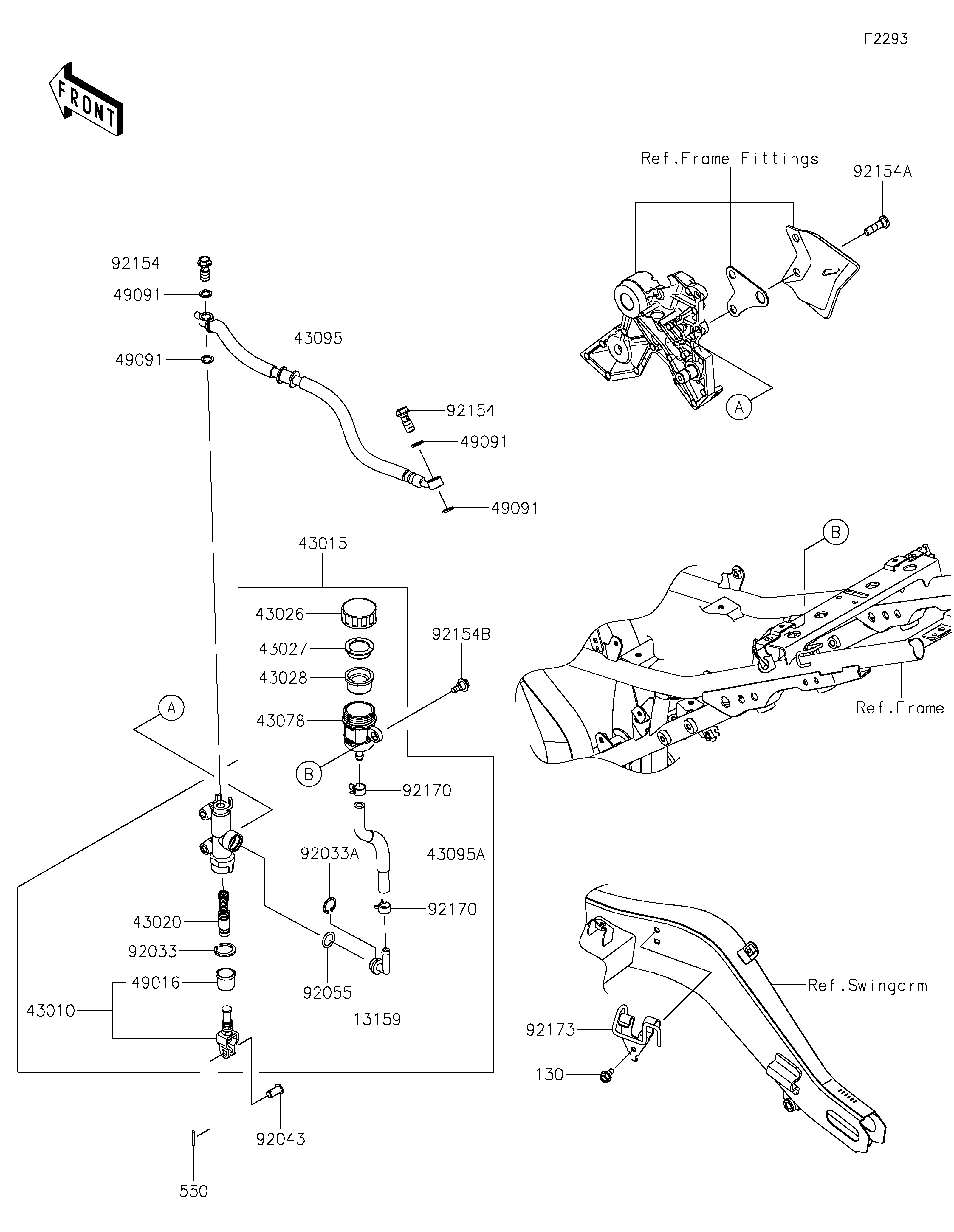

2020 Z650 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49016
49091
49091
49091
49091
550
92033
92033A
92043
92055
92154
92154
92154A
92154B
92170
92170
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0020 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0754 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0060 1
HOSE-BRAKE,RR,436MM 43095 43095-0965 1
HOSE-BRAKE,RR M/CYL. 43095A 43095-0969 1
COVER-SEAL,BRAKE PISTON 49016 49016-1103 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
PIN-COTTER,2.0X15 550 550AA2015 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0182 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,OIL,L=23 92154 92154-0226 2
BOLT,SOCKET,8X30 92154A 92154-0843 2
BOLT 92154B 92154-0929 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92173 92173-2291 1
