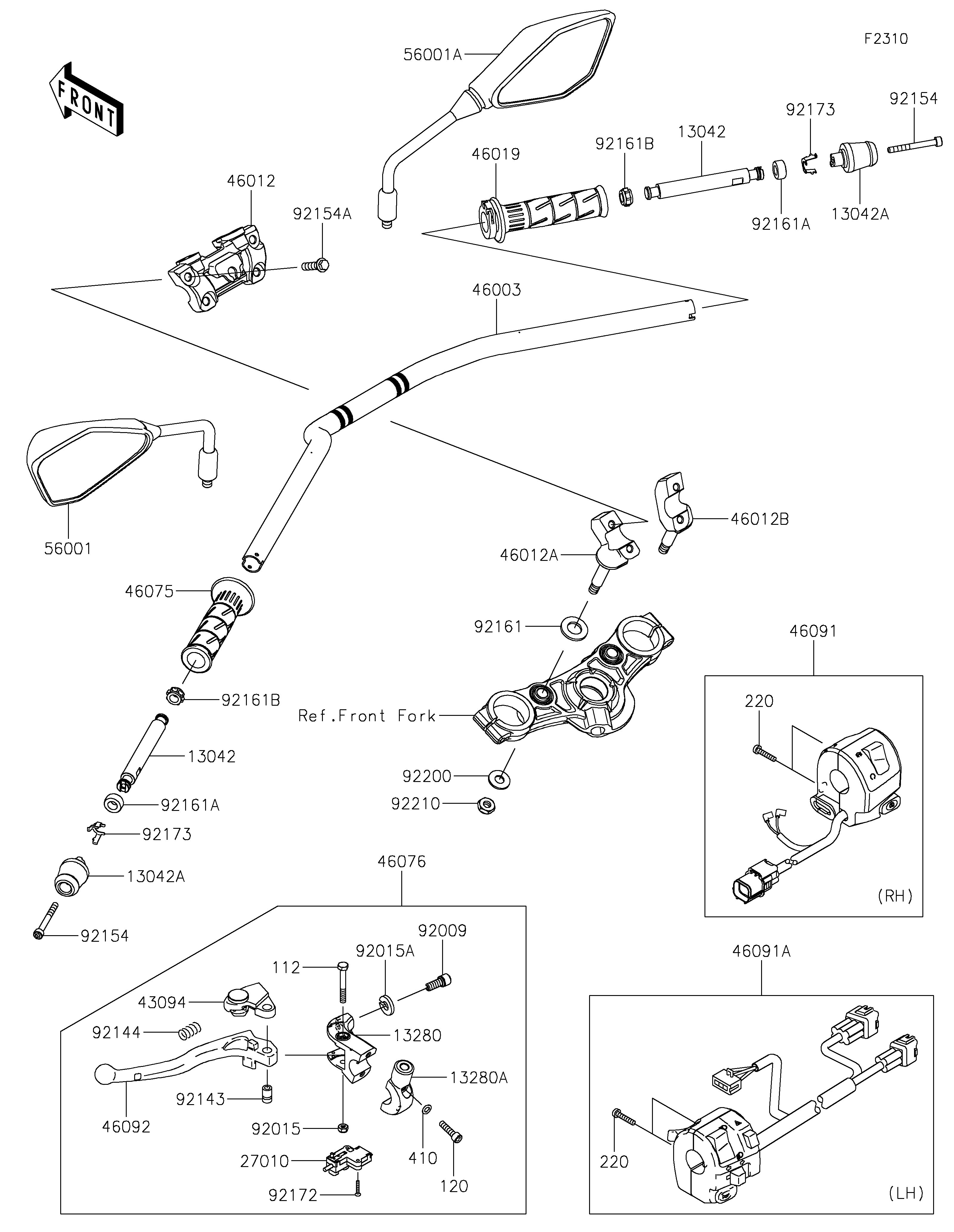

2020 Z650 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
13042
13042
13042A
13042A
13280
13280A
220
220
27010
410
43094
46003
46012
46012A
46012B
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92015A
92143
92144
92154
92154
92154A
92161
92161A
92161A
92161B
92161B
92172
92173
92173
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X45 112 112BB0645 1
BOLT-SOCKET,6X25 120 120CB0625 2
WEIGHT,HANDLE,INNER 13042 13042-0797 2
WEIGHT,HANDLE,OUTER 13042A 13042-0798 2
HOLDER,CLUTCH LEVER 13280 13280-0306 1
HOLDER,CLUTCH LEVER 13280A 13280-0307 1
SCREW-PAN-CROS,5X25 220 220AB0525 4
SWITCH,CLUTCH 27010 27010-0849 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
ADJUSTER 43094 43094-0009 1
HANDLE,F.S.BLACK 46003 46003-0671-18R 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0397-18R 1
HOLDER-HANDLE,LWR,LH,F.S.BLACK 46012A 46012-0409-18R 1
HOLDER-HANDLE,LWR,RH,F.S.BLACK 46012B 46012-0410-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0165 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0488 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0489 1
LEVER-GRIP,CLUTCH 46092 46092-0569 1
MIRROR-ASSY,LH 56001 56001-0336 1
MIRROR-ASSY,RH 56001A 56001-0337 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,SOCKET,6X55 92154 92154-1299 2
BOLT,FLANGED,8X30 92154A 92154-2655 4
DAMPER 92161 92161-0037 2
DAMPER,10X20X10 92161A 92161-1850 2
DAMPER,10X16X10,INNER 92161B 92161-1930 2
SCREW,3X16 92172 92172-0183 2
CLAMP,WEIGHT 92173 92173-2293 2
WASHER,10.5X24X2 92200 92200-1844 2
NUT,LOCK,10MM 92210 92210-0784 2
