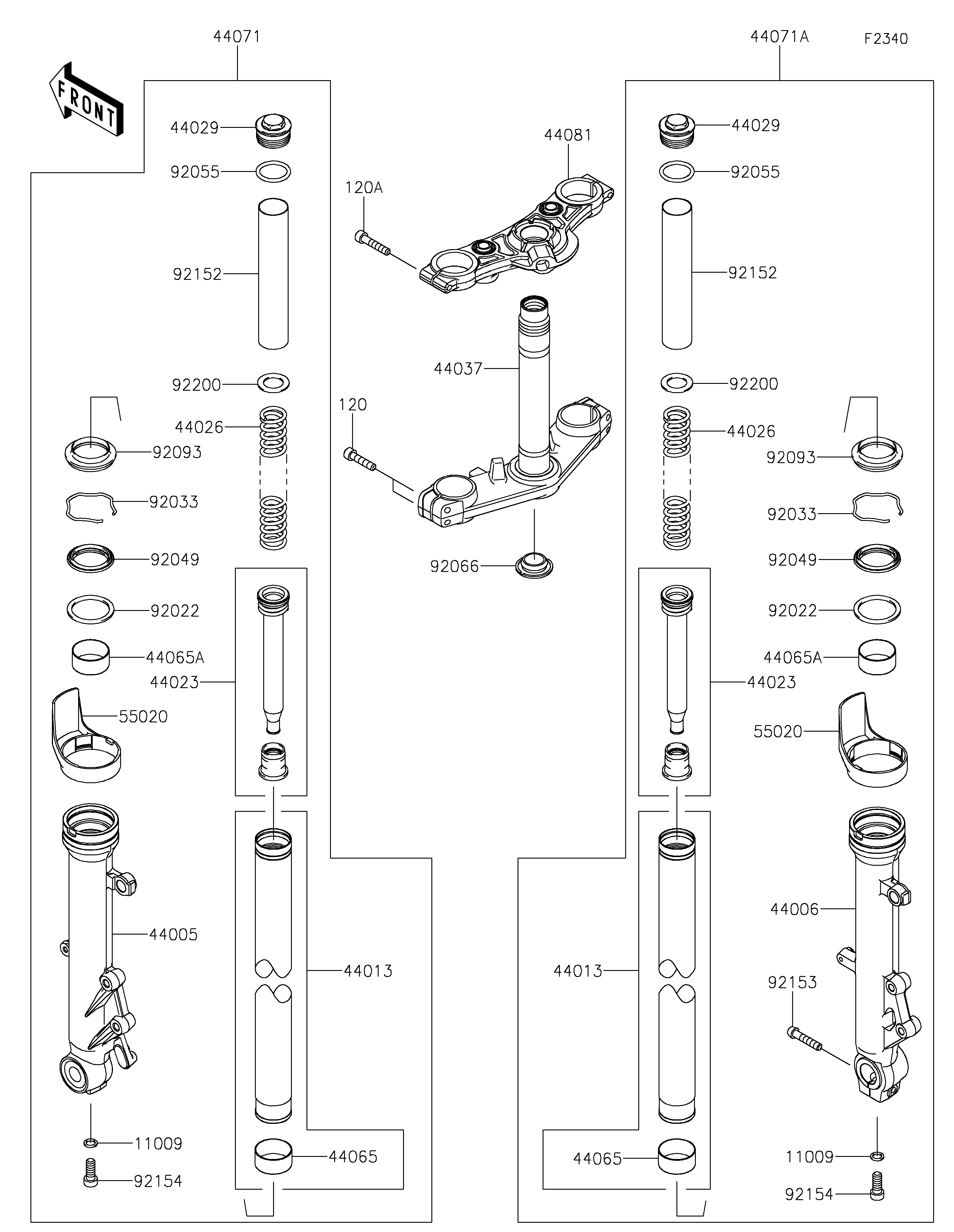

2020 Z650 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
120
120A
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44037
44065
44065
44065A
44065A
44071
44071A
44081
55020
55020
92022
92022
92033
92033
92049
92049
92055
92055
92066
92093
92093
92152
92152
92153
92154
92154
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X15X1.5 11009 11009-1325 2
BOLT-SOCKET,8X35 120 120CA0835 4
BOLT-SOCKET,8X40 120A 120CA0840 2
PIPE-LEFT FORK OUTER,L.S.BLK 44005 44005-0116-32A 1
PIPE-RIGHT FORK OUTER,L.S.BLK 44006 44006-0113-32A 1
PIPE-FORK INNER 44013 44013-0316 2
CYLINDER-SET-FORK 44023 44023-0138 2
SPRING-FRONT FORK 44026 44026-0205 2
SEAT-FORK SPRING 44029 44029-0005 2
HOLDER-FORK UNDER,F.S.BLACK 44037 44037-0119-18R 1
BUSHING-FRONT FORK,INNER TUBE 44065 44065-0014 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1115 2
DAMPER-ASSY,FORK,LH,L.S.BLACK 44071 44071-1202-32A 1
DAMPER-ASSY,FORK,RH,L.S.BLACK 44071A 44071-1203-32A 1
HOLDER-ASSY-FORK UPPER,F.S.BLK 44081 44081-0097-18R 1
GUARD,FORK 55020 55020-0872 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O 92055 92055-1321 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-1472 2
COLLAR,FORK 92152 92152-2377 2
BOLT,SOCKET,8X40 92153 92153-0506 1
BOLT,SOCKET,FORK CYLINDER 92154 92154-0296 2
WASHER 92200 92200-1302 2
