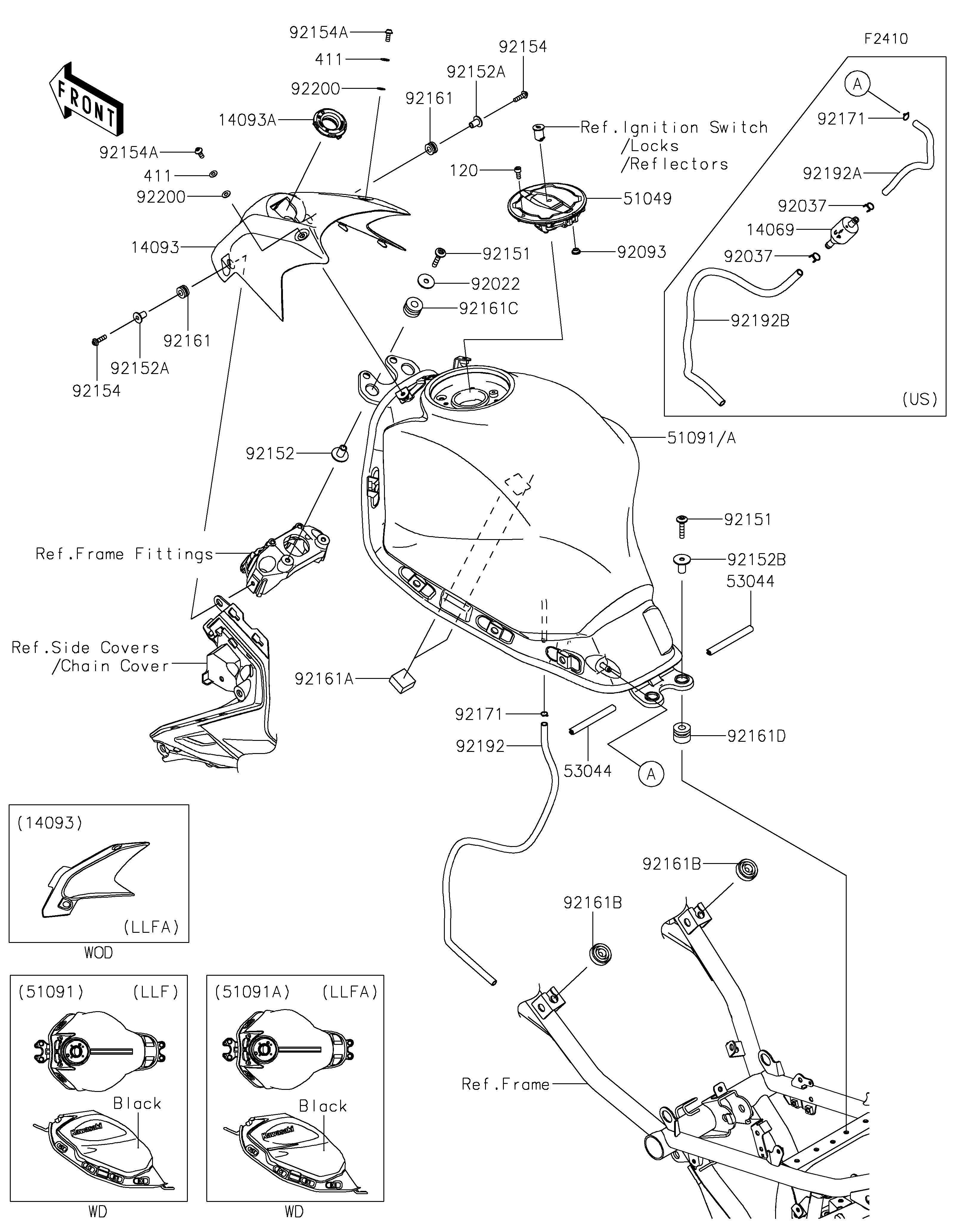

2020 Z650 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
120
14093
14093A
411
411
51049
51091A
53044
53044
92022
92093
92151
92151
92152
92152A
92152A
92152B
92154
92154
92154A
92154A
92161
92161
92161A
92161B
92161B
92161C
92161D
92171
92171
92192
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CA0512 4
COVER,TANK,M.S.BLACK 14093 14093-0483-660 1
COVER,IGNITION SW. 14093A 14093-0952 1
WASHER-PLAIN,5MM 411 411AA0500 2
CAP-TANK 51049 51049-0735 1
TANK-COMP-FUEL,M.S.BLACK 51091A 51091-5163-660 1
TRIM,L=85 53044 53044-0556 2
WASHER,7X24X1.6 92022 92022-228 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 4
COLLAR,6.5X10X17.6 92152 92152-1655 2
COLLAR,5.6X16X14.2 92152A 92152-2229 2
COLLAR,6.5X10X21.1 92152B 92152-2325 2
BOLT,SOCKET,5X20 92154 92154-0210 2
BOLT,SOCKET,5X12 92154A 92154-1421 2
DAMPER,8X16X8.6 92161 92161-0685 2
DAMPER,T=13 92161A 92161-0792 2
DAMPER,14X30X10 92161B 92161-1368 2
DAMPER,10X24X15 92161C 92161-1482 2
DAMPER,10X24X19 92161D 92161-1929 2
CLAMP,8X0.7 92171 92171-1973 1 _________________________________________CA
TUBE,6X9X620 92192 92192-1085 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
