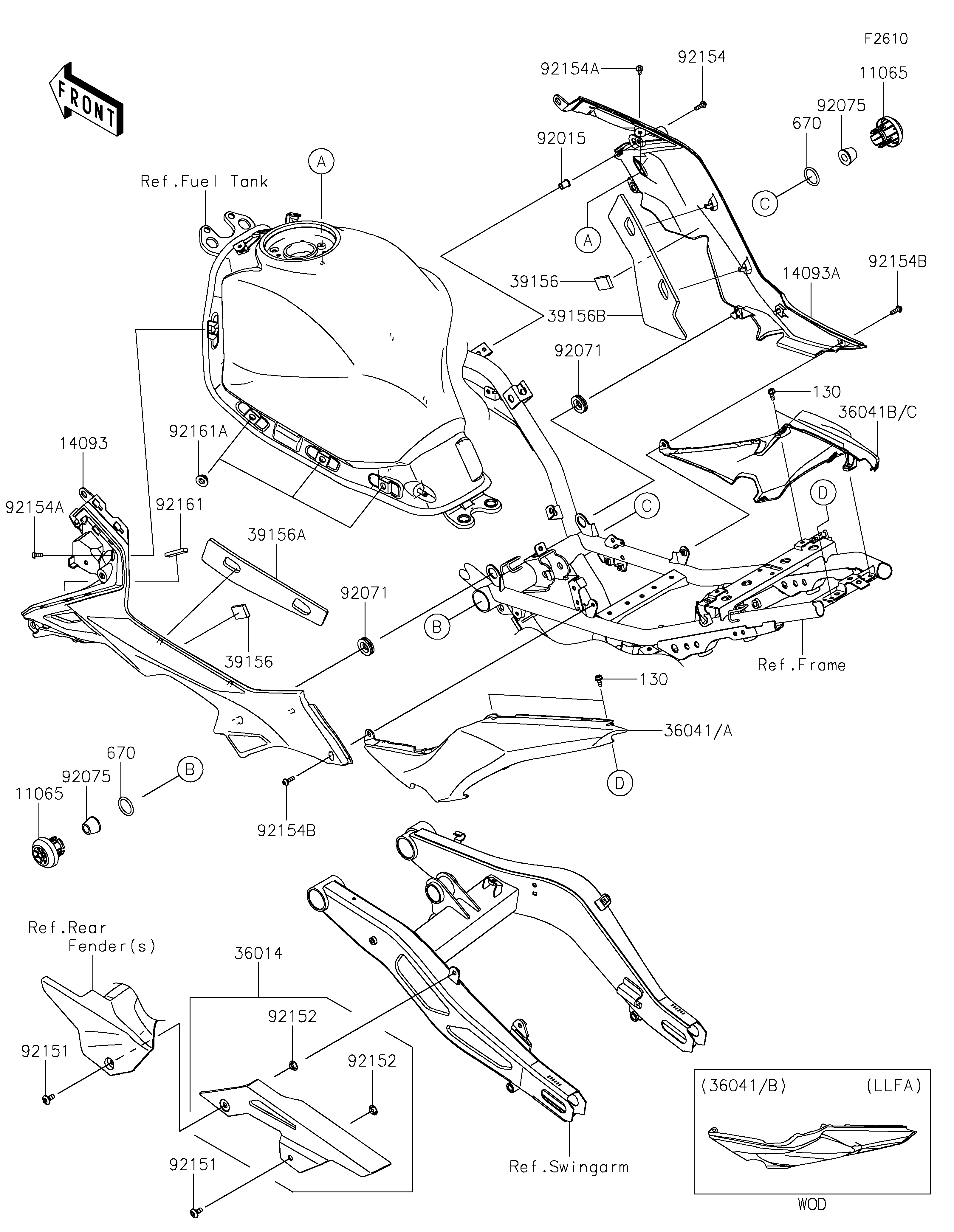

2020 Z650 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
130
130
14093
14093A
36014
36041
36041B
39156
39156
39156A
39156B
670
670
92015
92071
92071
92075
92075
92151
92151
92152
92152
92154
92154A
92154A
92154B
92154B
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0956 2
BOLT-FLANGED,5X12 130 130BA0512 4
COVER,KNEE GRIP,LH 14093 14093-0613 1
COVER,KNEE GRIP,RH 14093A 14093-0614 1
CASE-CHAIN 36014 36014-0044 1
COVER-TAIL,LH,M.S.BLACK 36041 36041-0033-660 1
COVER-TAIL,RH,M.S.BLACK 36041B 36041-0034-660 1
PAD,20X30X6 39156 39156-1751 2
PAD,KNEE GRIP COVER,LH 39156A 39156-2589 1
PAD,KNEE GRIP COVER,RH 39156B 39156-2590 1
O RING,25MM 670 670B3025 2
NUT,WELL,5MM 92015 92015-1757 1
GROMMET 92071 92071-1043 2
DAMPER,HANDLE HOLDER 92075 92075-039 2
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,8.8X11.2X4 92152 92152-0909 2
BOLT,SOCKET,5X16 92154 92154-0209 1
BOLT,SOCKET,5X12 92154A 92154-1421 2
BOLT,SOCKET,5X16 92154B 92154-1701 2
DAMPER,TANK COVER 92161 92161-0804 1
DAMPER,6X20X7.5 92161A 92161-1937 6
