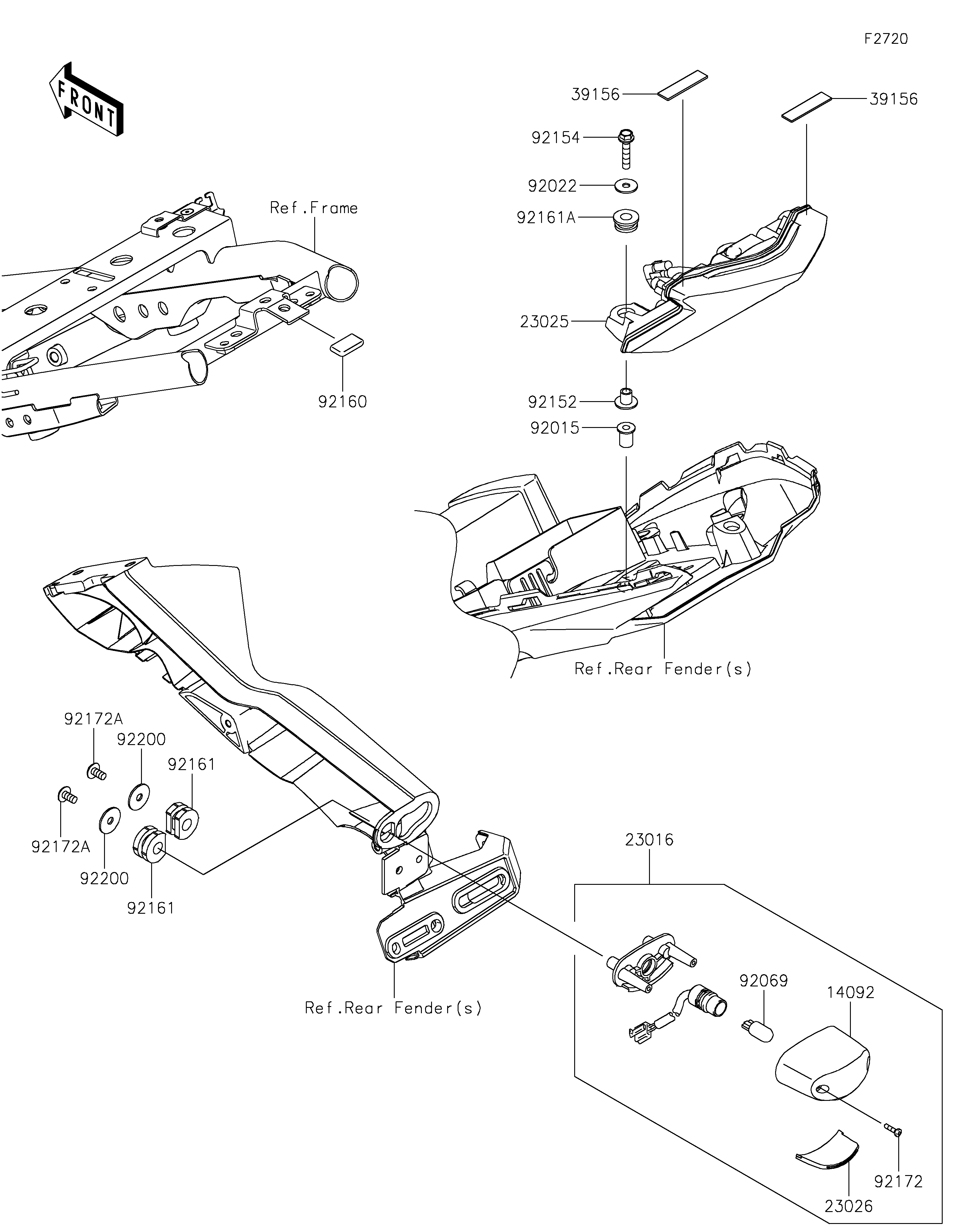

2020 Z650 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
14092
23016
23025
23026
39156
39156
92015
92022
92069
92152
92154
92160
92161
92161
92161A
92172
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0607 1
LAMP-TAIL 23025 23025-0361 1
LENS,LICENCE LAMP 23026 23026-0028 1
PAD,40X10X1 39156 39156-2595 2
NUT,WELL,5MM 92015 92015-1757 2
WASHER,5.2X16X1.2 92022 92022-263 2
BULB,12V 5W 92069 92069-1016 1
COLLAR 92152 92152-1592 2
BOLT,FLANGED,5X25 92154 92154-0846 2
DAMPER 92160 92160-1190 1
DAMPER 92161 92161-0776 2
DAMPER,8X18X8.1 92161A 92161-1369 2
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
WASHER,5.5X20X1.2 92200 92200-0284 2
