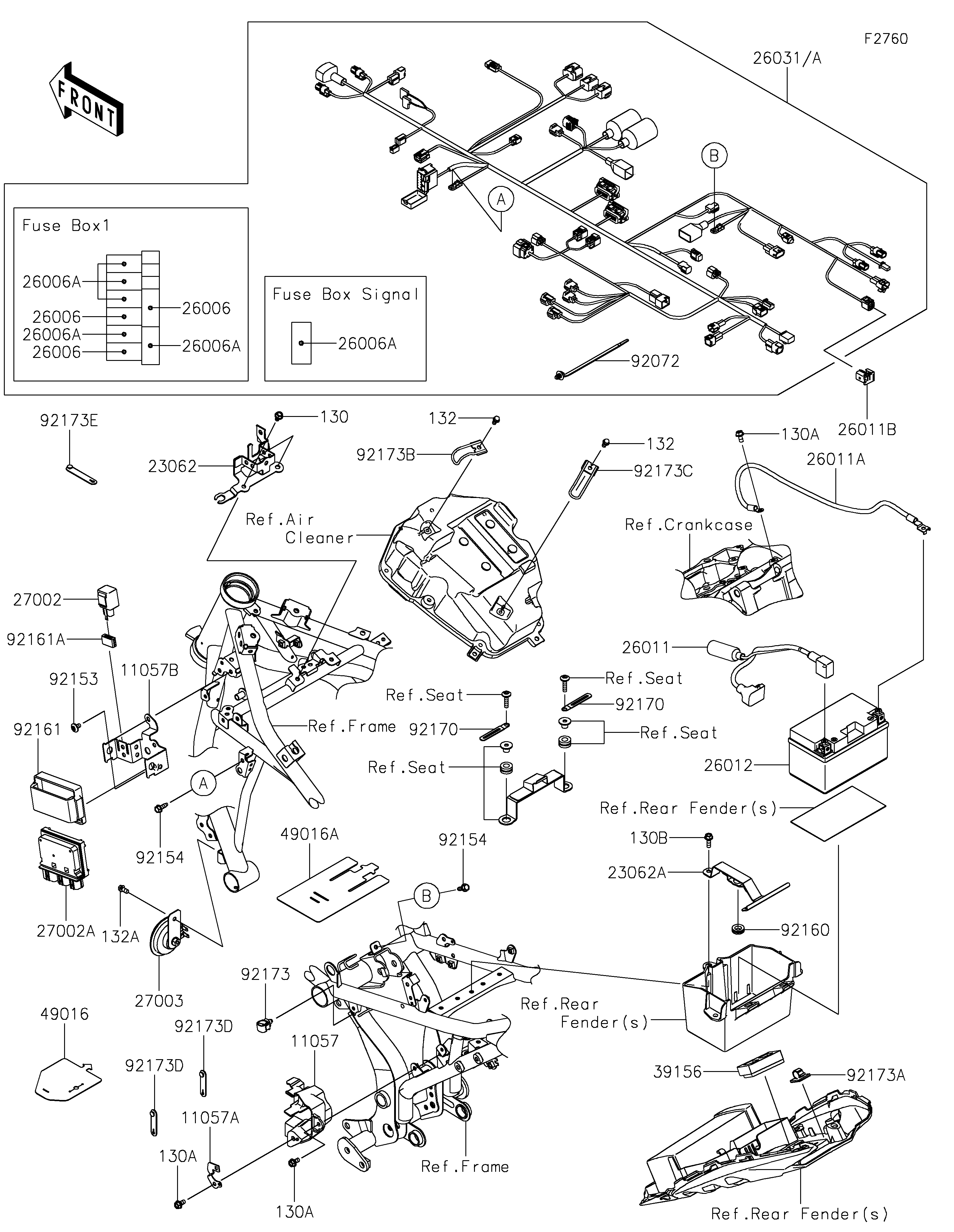

2020 Z650 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
130
130A
130A
130A
130B
132
132
132A
23062
23062A
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011A
26011B
26012
26031A
27002
27002A
27003
39156
49016
49016A
92072
92153
92154
92154
92160
92161
92161A
92170
92170
92173
92173A
92173B
92173C
92173D
92173D
92173E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MAGNETIC SW. 11057 11057-0137 1
BRACKET,COUPLER 11057A 11057-0138 1
BRACKET,RELAY 11057B 11057-2798 1
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,6X12 130A 130BA0612 3
BOLT-FLANGED,6X18 130B 130BA0618 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 1
BRACKET,VEHICLE DOWN SENSOR 23062 23062-1258 1
BRACKET-COMP,BATTERY 23062A 23062-1269 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 6
WIRE-LEAD,BATTERY(+) 26011 26011-0979 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0981 1
WIRE-LEAD,DIAG CONNECTOR 26011B 26011-1901 1
BATTERY,YTZ10,12V 8.6AH 26012 26012-0689 1
HARNESS,MAIN 26031A 26031-2873 1 _________________________________________CA
RELAY-ASSY,SIGNAL LAMP 27002 27002-0006 1
RELAY-ASSY 27002A 27002-0042 1
HORN 27003 27003-0158 1
PAD,DIAGNOSTIC-CONNECTOR 39156 39156-2627 1
COVER-SEAL 49016 49016-0645 1
COVER-SEAL,ECU CONNECTOR 49016A 49016-0672 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BOLT,SOCKET,6X10 92153 92153-1800 2
BOLT,FLANGED,6X18 92154 92154-4008 2
DAMPER 92160 92160-1278 1
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER,15X25X8.5 92161A 92161-1443 1
CLAMP 92170 92170-1514 2
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP,DRAIN 92173A 92173-1055 1
CLAMP,A/C CASE,FR 92173B 92173-1586 1
CLAMP,A/C CASE,RR 92173C 92173-1587 1
CLAMP 92173D 92173-2198 2
CLAMP 92173E 92173-2199 3
