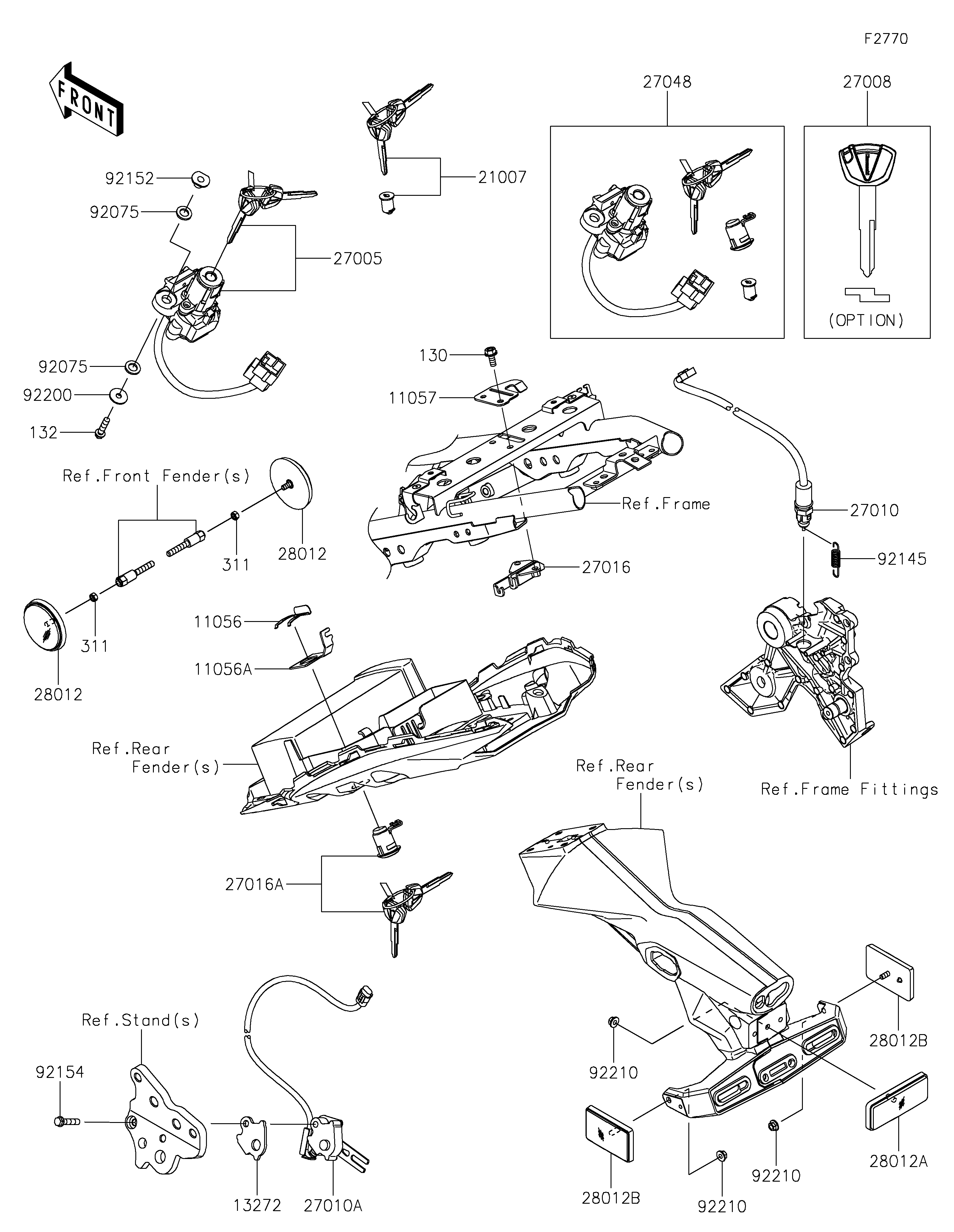

2020 Z650 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11057
130
132
13272
21007
27005
27008
27010
27010A
27016
27016A
27048
28012
28012
28012A
28012B
28012B
311
311
92075
92075
92145
92152
92154
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLASP 11056 11056-0238 1
BRACKET,SEAT LOCK 11056A 11056-2119 1
BRACKET,STRIKER 11057 11057-2812 1
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
PLATE 13272 13272-1330 1
ROTOR,LOCK,TANK CAP 21007 21007-5077 1
SWITCH-ASSY-IGNITION 27005 27005-0675 1
KEY-LOCK,BLANK 27008 27008-0596 1 (OPTION)
SWITCH,BRAKE 27010 27010-0857 1
SWITCH,SIDE STAND 27010A 27010-0920 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,SEAT 27016A 27016-5386 1
SWITCH-ASSY 27048 27048-5221 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
NUT-HEX,5MM 311 311AB0500 2
DAMPER 92075 92075-1564 4
SPRING,REAR BRAKE 92145 92145-1896 1
COLLAR,6X9X10.6 92152 92152-1971 2
BOLT,FLANGED,6X30 92154 92154-1040 1
WASHER,6X20X1.6 92200 92200-0780 2
NUT,FLANGED,5MM 92210 92210-0007 3
