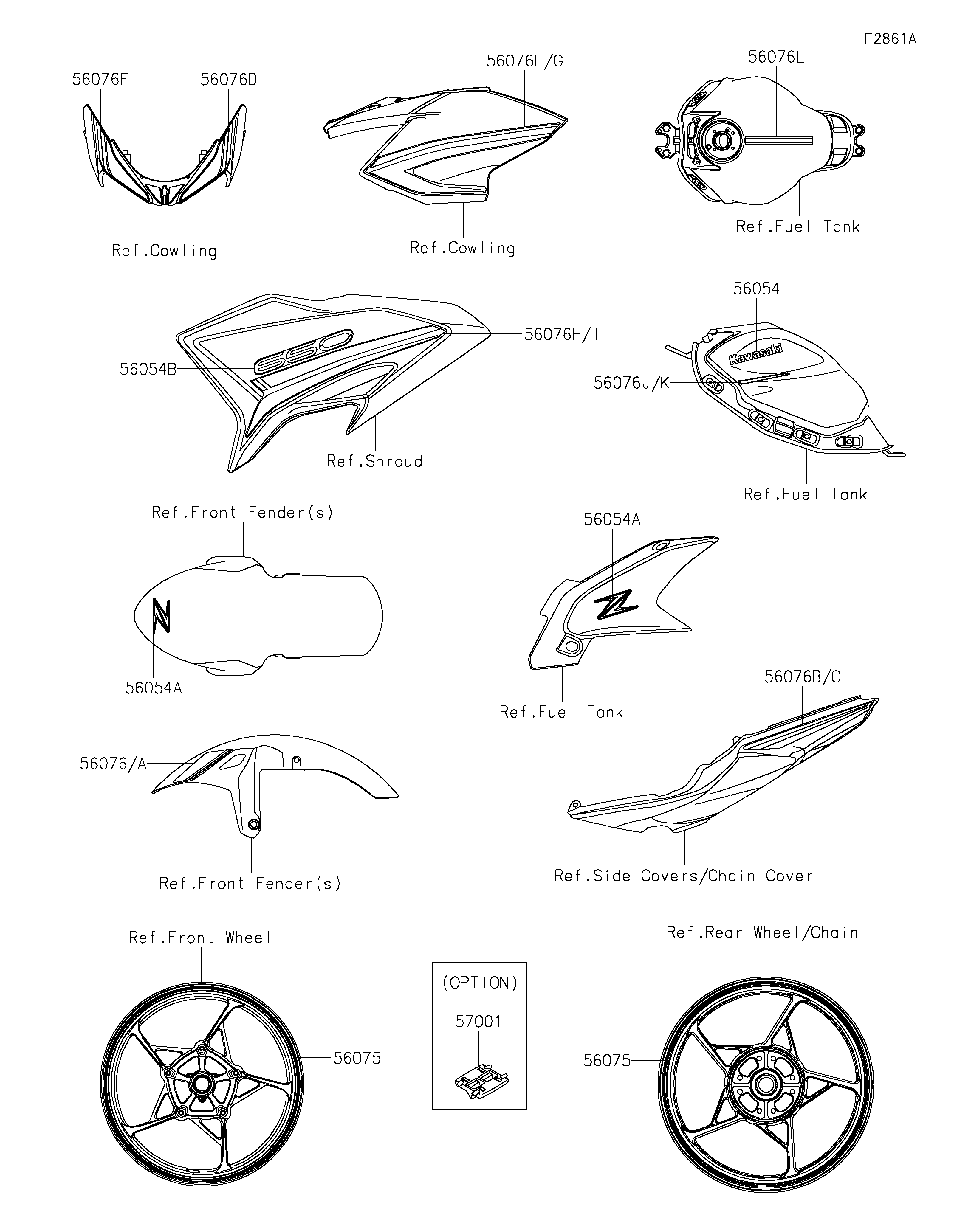

Parts Diagrams |
56054
56054A
56054A
56054B
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56054 | 56054-2709 | 2 | ||
| MARK,Z | 56054A | 56054-2712 | 3 | ||
| MARK,SHROUD,650 | 56054B | 56054-2713 | 2 | ||
| PATTERN,WHEEL,GRN,4X1353 | 56075 | 56075-2279 | 4 | ||
| PATTERN,FR FENDER,LH | 56076 | 56076-0940 | 1 | ||
| PATTERN,FR FENDER,RH | 56076A | 56076-0941 | 1 | ||
| PATTERN,TAIL COVER,LH | 56076B | 56076-0953 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076C | 56076-0954 | 1 | ||
| PATTERN,UPP COWL.,LH,UPP | 56076D | 56076-0957 | 1 | ||
| PATTERN,UPP COWL.,LH,LWR | 56076E | 56076-0958 | 1 | ||
| PATTERN,UPP COWL.,RH,UPP | 56076F | 56076-0959 | 1 | ||
| PATTERN,UPP COWL.,RH,LWR | 56076G | 56076-0960 | 1 | ||
| PATTERN,SHROUD,LH | 56076H | 56076-0961 | 1 | ||
| PATTERN,SHROUD,RH | 56076I | 56076-0962 | 1 | ||
| PATTERN,FUEL TANK,LH | 56076J | 56076-0963 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076K | 56076-0964 | 1 | ||
| PATTERN,FUEL TANK,CNT | 56076L | 56076-0965 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,Z | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,650 | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GRN,4X1353 | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH,UPP | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH,LWR | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH,UPP | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH,LWR | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,CNT | |
| REF # | 56076L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
