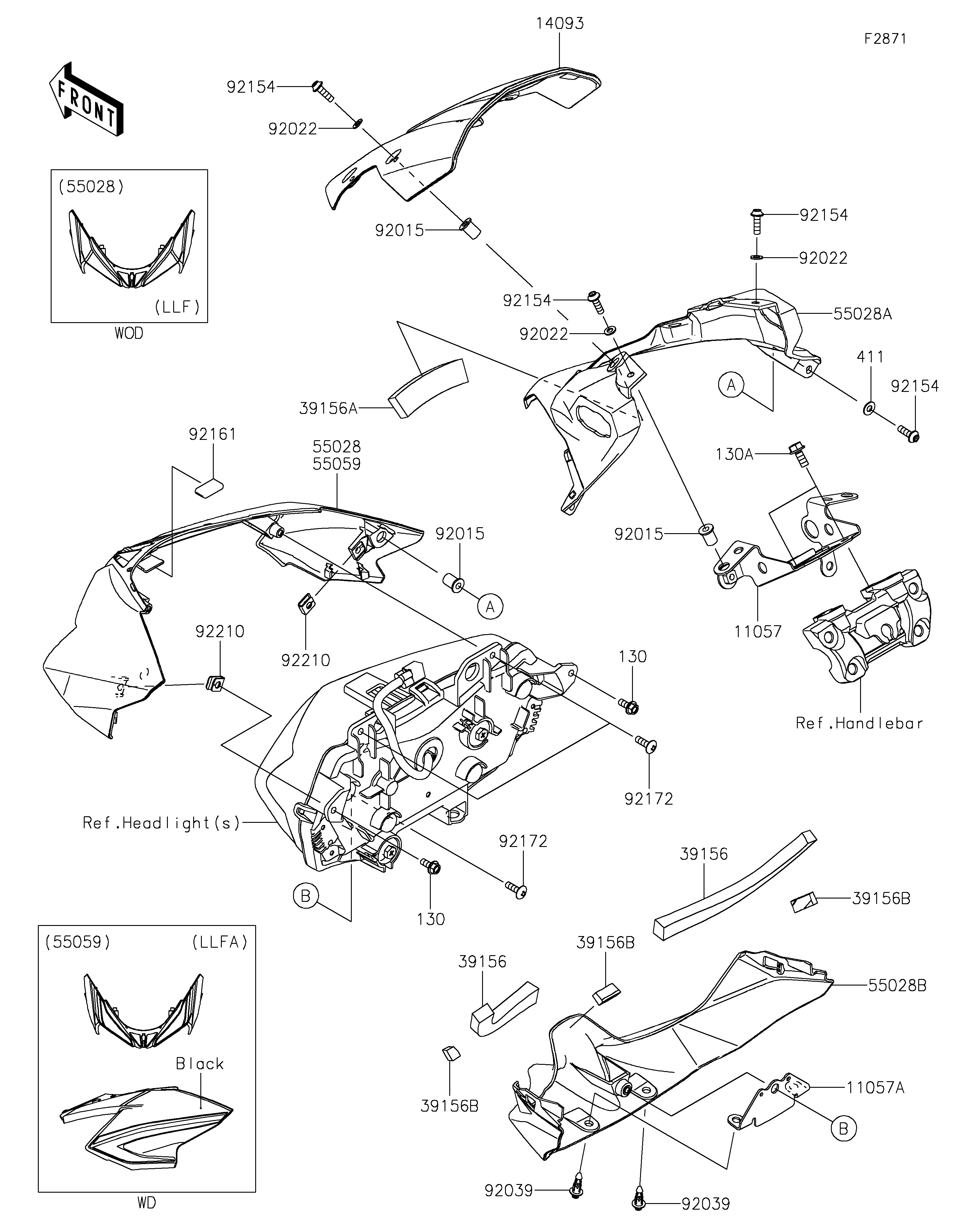

2020 Z650 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
130
130
130A
14093
39156
39156
39156A
39156B
39156B
39156B
411
55028A
55028B
55059
92015
92015
92015
92022
92022
92022
92039
92039
92154
92154
92154
92154
92161
92172
92172
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP 11057 11057-2726 1
BRACKET,LWR 11057A 11057-2727 1
BOLT-FLANGED,5X12 130 130BA0512 2
BOLT-FLANGED,6X14 130A 130BB0614 2
COVER,METER 14093 14093-0934 1
PAD,170X10X20 39156 39156-2546 2
PAD,80X10X20 39156A 39156-2580 1
PAD,20X10X8 39156B 39156-2581 3
WASHER-PLAIN,5MM 411 411AB0500 2
COWLING,UPP,UPP 55028A 55028-0711 1
COWLING,UPP,LWR 55028B 55028-0712 1
COWLING,UPP,CNT,M.S.BLACK 55059 55059-5129-660 1
NUT,WELL,5MM 92015 92015-1757 8
WASHER,5.1X10X1.0 92022 92022-1977 6
RIVET 92039 92039-0709 2
BOLT,SOCKET,5X16 92154 92154-1701 8
DAMPER,12X23 92161 92161-1367 1
SCREW,TAPPING,5X16 92172 92172-0742 3
NUT 92210 92210-0571 2
