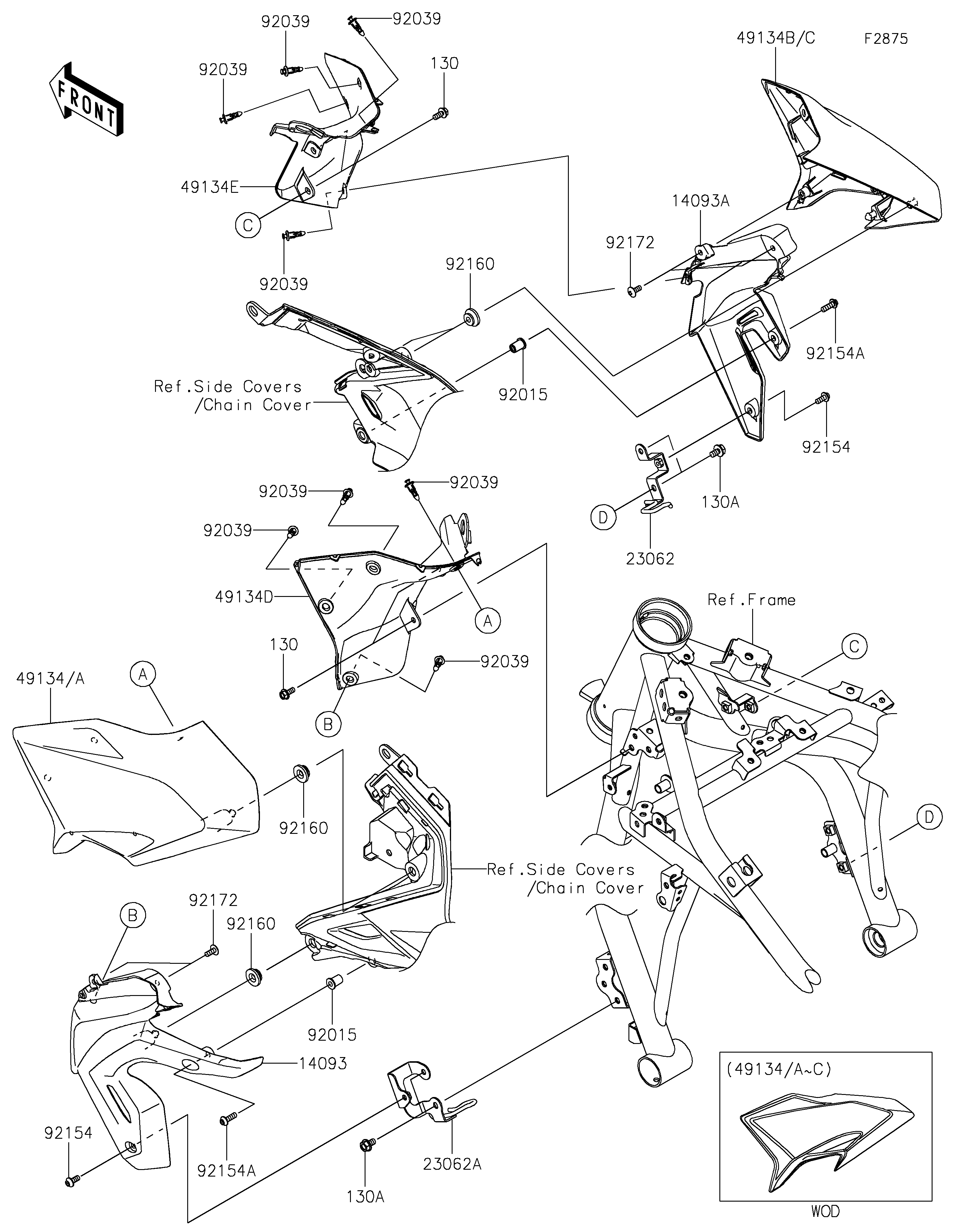

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
130A
130A
14093
14093A
23062
23062A
49134
49134B
49134D
49134E
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92154
92154
92154A
92154A
92160
92160
92160
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 4 | ||
| BOLT-FLANGED,6X10 | 130A | 130BA0610 | 4 | ||
| COVER,RADIATOR,LH | 14093 | 14093-0935 | 1 | ||
| COVER,RADIATOR,RH | 14093A | 14093-0936 | 1 | ||
| BRACKET-COMP,RADIATOR COVER,RH | 23062 | 23062-1246 | 1 | ||
| BRACKET-COMP,RADIATOR COVER,LH | 23062A | 23062-1285 | 1 | ||
| SHROUD,OUTER,LH,M.S.BLACK | 49134 | 49134-0008-660 | 1 | ||
| SHROUD,OUTER,RH,M.S.BLACK | 49134B | 49134-0009-660 | 1 | ||
| SHROUD,INNER,LH | 49134D | 49134-0010 | 1 | ||
| SHROUD,INNER,RH | 49134E | 49134-0011 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 2 | ||
| RIVET | 92039 | 92039-0709 | 8 | ||
| BOLT,SOCKET,5X12 | 92154 | 92154-0917 | 2 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-1701 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 4 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 4 |
| BOLT-FLANGED,5X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,RADIATOR,LH | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RADIATOR,RH | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-COMP,RADIATOR COVER,RH | |
| REF # | 23062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-COMP,RADIATOR COVER,LH | |
| REF # | 23062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD,OUTER,LH,M.S.BLACK | |
| REF # | 49134 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD,OUTER,RH,M.S.BLACK | |
| REF # | 49134B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD,INNER,LH | |
| REF # | 49134D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD,INNER,RH | |
| REF # | 49134E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
