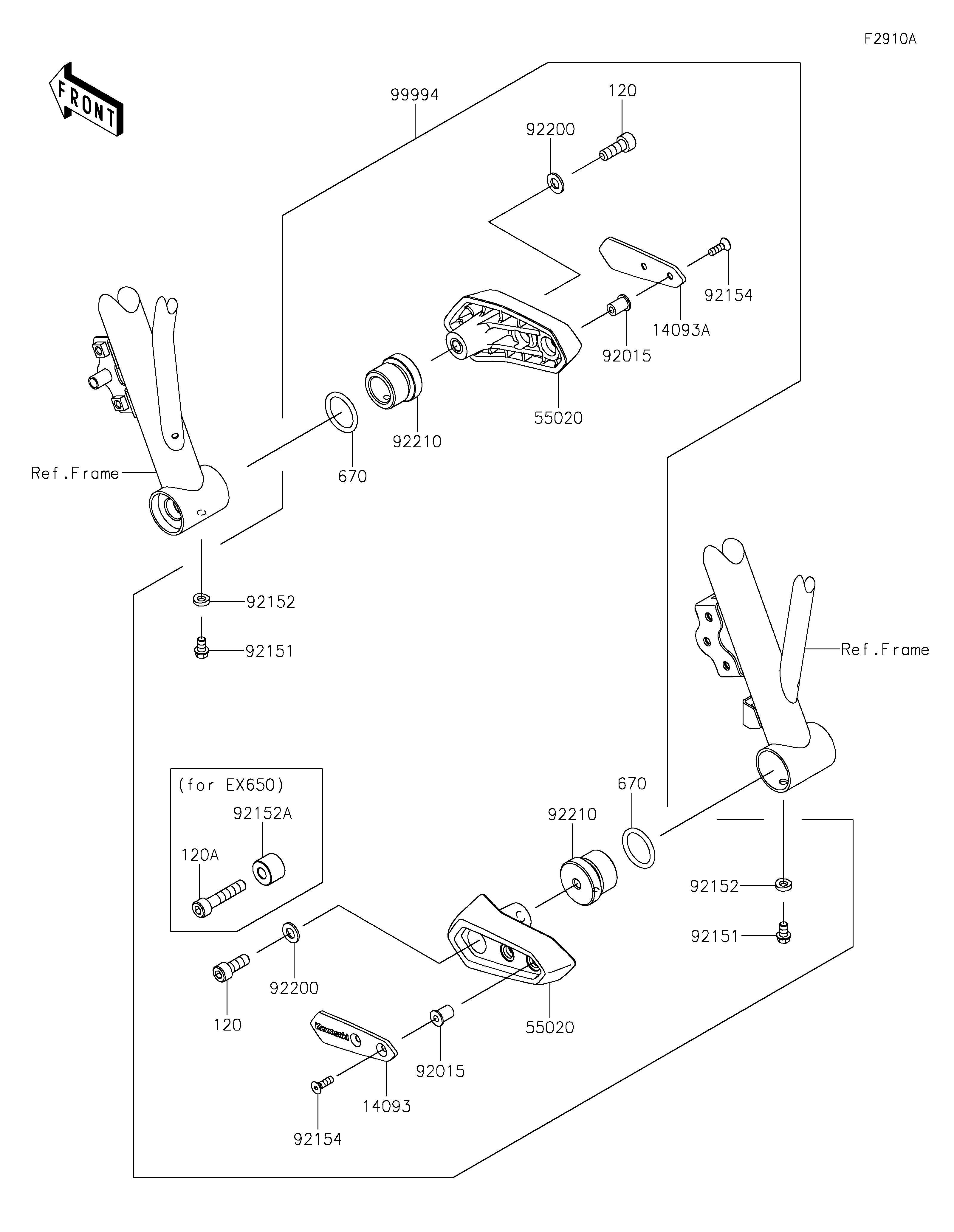

2020 Z650 - Accessory(Frame Slider)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
14093
14093A
55020
55020
670
670
92015
92015
92151
92151
92152
92152
92152A
92154
92154
92200
92200
92210
92210
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X22 120 120CA0822 2
BOLT-SOCKET,8X40 120A 120CA0840 1
COVER,SLIDER,LH 14093 14093-0350 1
COVER,SLIDER,RH 14093A 14093-0351 1
GUARD 55020 55020-1997 2
O RING,26MM 670 670B3026 2
NUT,WELL,5MM 92015 92015-1757 4
BOLT,6X10 92151 92151-1277 2
COLLAR,6.3X12 92152 92152-2236 2
COLLAR,8.3X20X15 92152A 92152-2237 1
BOLT,SOCKET,5X16 92154 92154-1014 4
WASHER,8.4X16X1.6 92200 92200-0807 2
NUT 92210 92210-1505 2
KIT-ACCESSORY,FRAME SLIDER 99994 99994-0797 1
