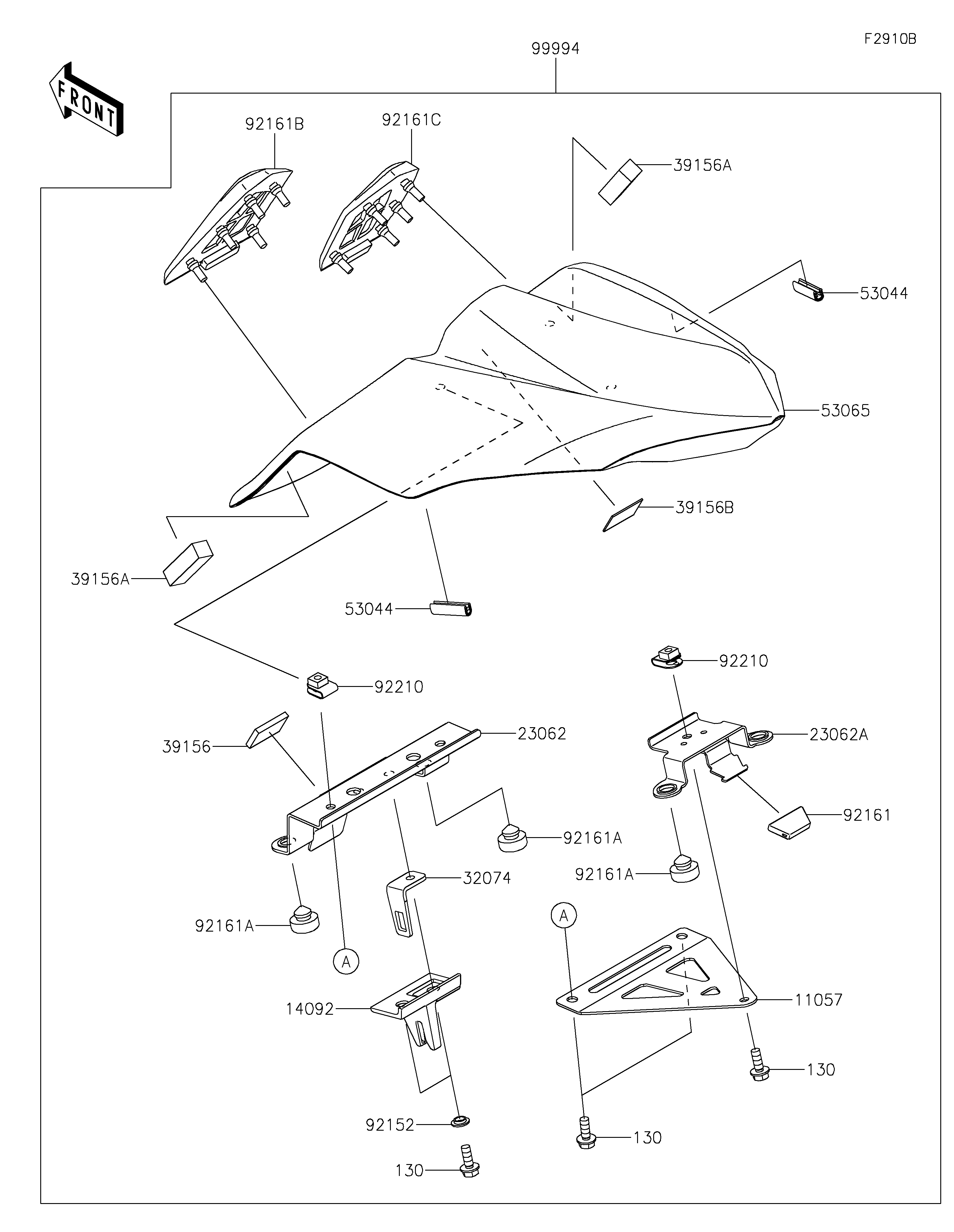

2020 Z650 - Accessory(Pillion Seat Cover)
11057
130
130
130
14092
23062
23062A
32074
39156
39156A
39156A
39156B
53044
53044
53065
92152
92161
92161A
92161A
92161A
92161B
92161C
92210
92210
99994
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SEAT COVER | 11057 | 11057-0808 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 5 | ||
| COVER | 14092 | 14092-0248 | 1 | ||
| BRACKET-COMP | 23062 | 23062-0907 | 1 | ||
| BRACKET-COMP | 23062A | 23062-0914 | 1 | ||
| BRACKET-LOCK | 32074 | 32074-0017 | 1 | ||
| PAD,20X30X4 | 39156 | 39156-0705 | 1 | ||
| PAD,13X43X12 | 39156A | 39156-0978 | 2 | ||
| PAD,20X30X1 | 39156B | 39156-2199 | 1 | ||
| TRIM,L=30 | 53044 | 53044-0001 | 2 | ||
| COVER SEAT,M.S.BLACK | 53065 | 53065-0039-660 | 1 | ||
| COLLAR | 92152 | 92152-0250 | 2 | ||
| DAMPER | 92161 | 92161-0629 | 1 | ||
| DAMPER,10X20X8 | 92161A | 92161-0855 | 4 | ||
| DAMPER,COVER SEAT,LH | 92161B | 92161-1855 | 1 | ||
| DAMPER,COVER SEAT,RH | 92161C | 92161-1856 | 1 | ||
| NUT,6MM | 92210 | 92210-0277 | 3 | ||
| KIT,SINGLE SEAT COVER,M.S.BLK | 99994 | 99994-0796-660 | 1 |
